Operation
I XRM-74I

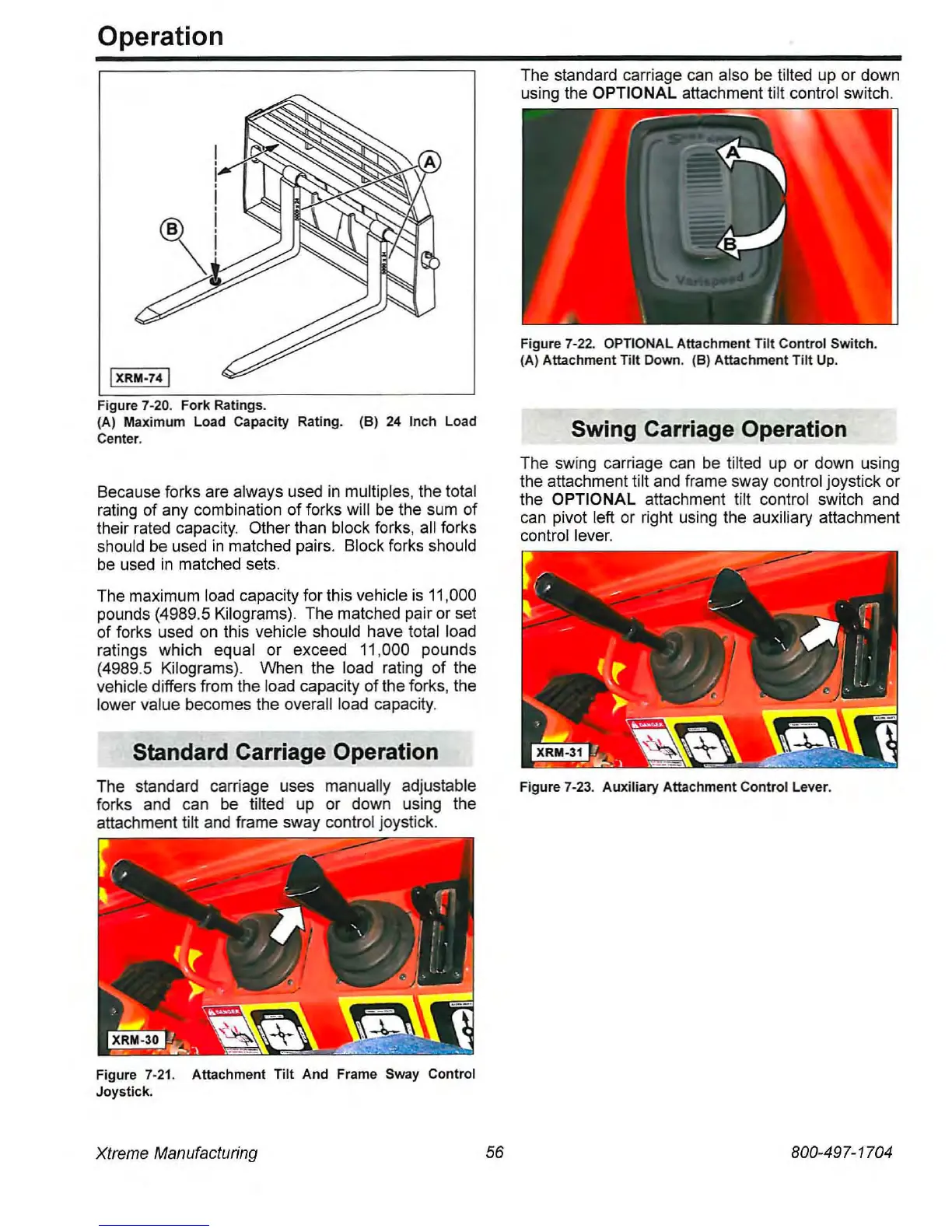

Figure 7-20. Fork Ratings.
(A) Maximum Load Capacity Rating. (8) 24 Inch Load
Center.
Because forks are always used in mUltiples, the total
rating of any combination of forks will
be the sum of
their rated capacity. Other than block forks, all forks
shouid
be used in matched pairs. Block forks should
be used in matched sets.
The maximum load capacity for this vehicle is 11,000
pounds (4989.5 Kilograms). The matched pair or set
of forks used on this vehicle should have total load
ratings which equal or exceed 11,000 pounds
(4989.5 Kilograms). When the load rating of the
vehicle differs from the ioad capacity of the forks, the
lower value becomes the overall load capacity.
Standard Carriage Operation
The standard carriage uses manually adjustable
forks and can
be titted up or down using the
attachment tilt
and frame sway control joystick.
Figure 7-21. Attachment Tilt And Frame Sway Control
Joystick.
Xtreme Manufacturing
56
The standard carriage can also be tilted up or down
using the
OPTIONAL attachment tiit control switch.
Figure 7-22. OPTIONAL Attachment Tilt Control Switch.
(A) Attachment Tilt Down. (8) Attachment
Tilt Up.
Swing Carriage Operation
The swing carriage can be tilted up or down using
the attachment tilt
and frame sway control joystick or
the
OPTIONAL attachment tilt control switch and
can pivot left or right using the auxiliary attachment
control lever.
Figure 7-23. Auxiliary Attachment Control Lever.
800-497-1704
