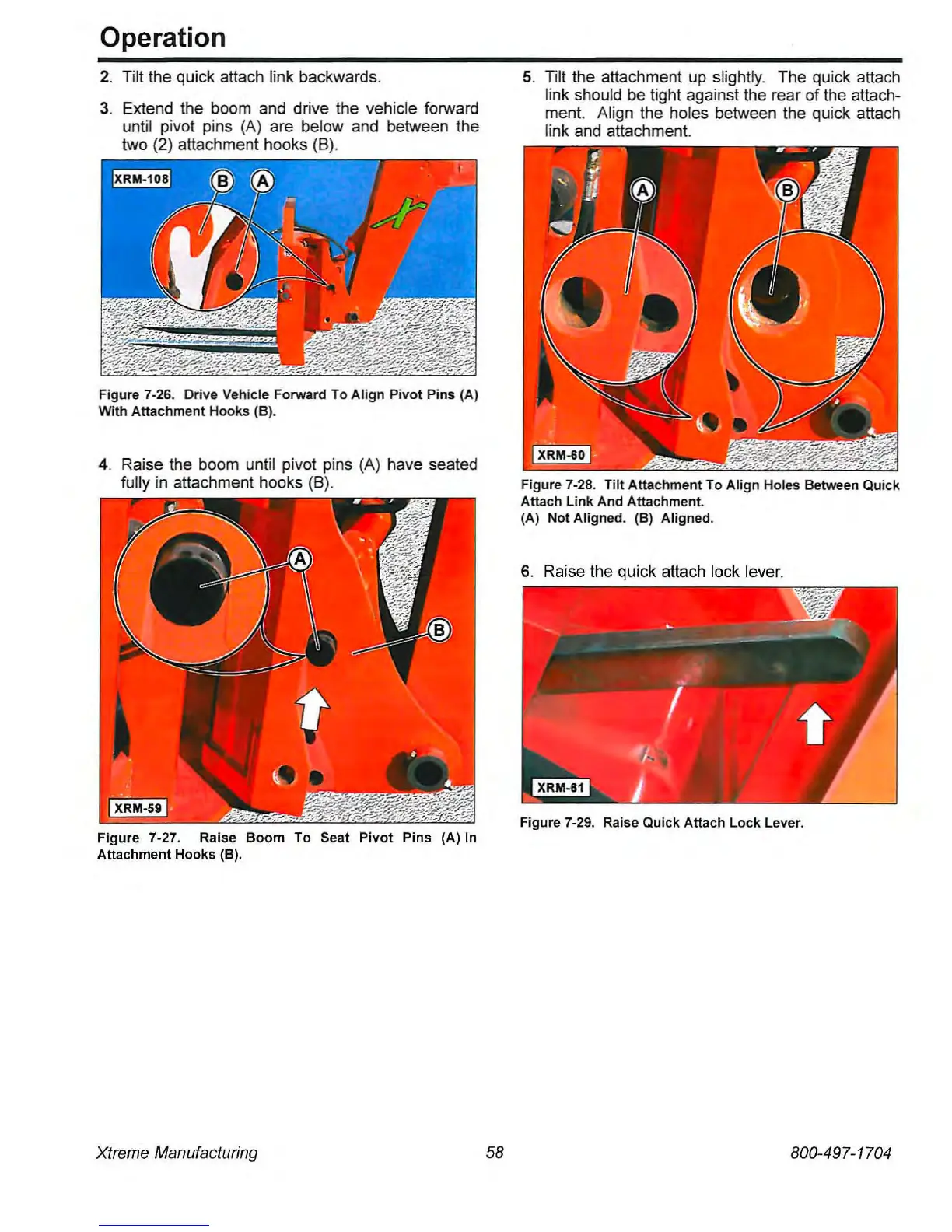

Operation
2.
Tilt the quick attach link backwards.
3.
Extend the boom and drive the vehicle forward
until pivot pins
(A)
are below and between the
two (2) attachment hooks (8).
Figure 7-26. Drive Vehicle Forward To Align Pivot Pins (A)
With Attachment Hooks (B).
4.
Raise the boom until pivot pins
(A)
have seated
fully
in
attachment hooks (8).
Figure 7-27. Raise
Boom
To Seat
Pivot
Pins (A) In
Attachment Hooks (B).
Xtreme Manufacturing 58
5.
Tilt the attachment
up
slightly. The quick attach
link should
be
tight against the rear of the attach-
ment. Align the holes between the quick attach
link and attachment.
Figure 7-28. Tilt Attachment To Align Holes Between Quick
Attach Link And Attachment.
(A) Not Aligned. (B) Aligned.
6.
Raise the quick attach lock lever.
~~=
Figure 7-29. Raise Quick Attach Lock Lever.
800-497-1704
