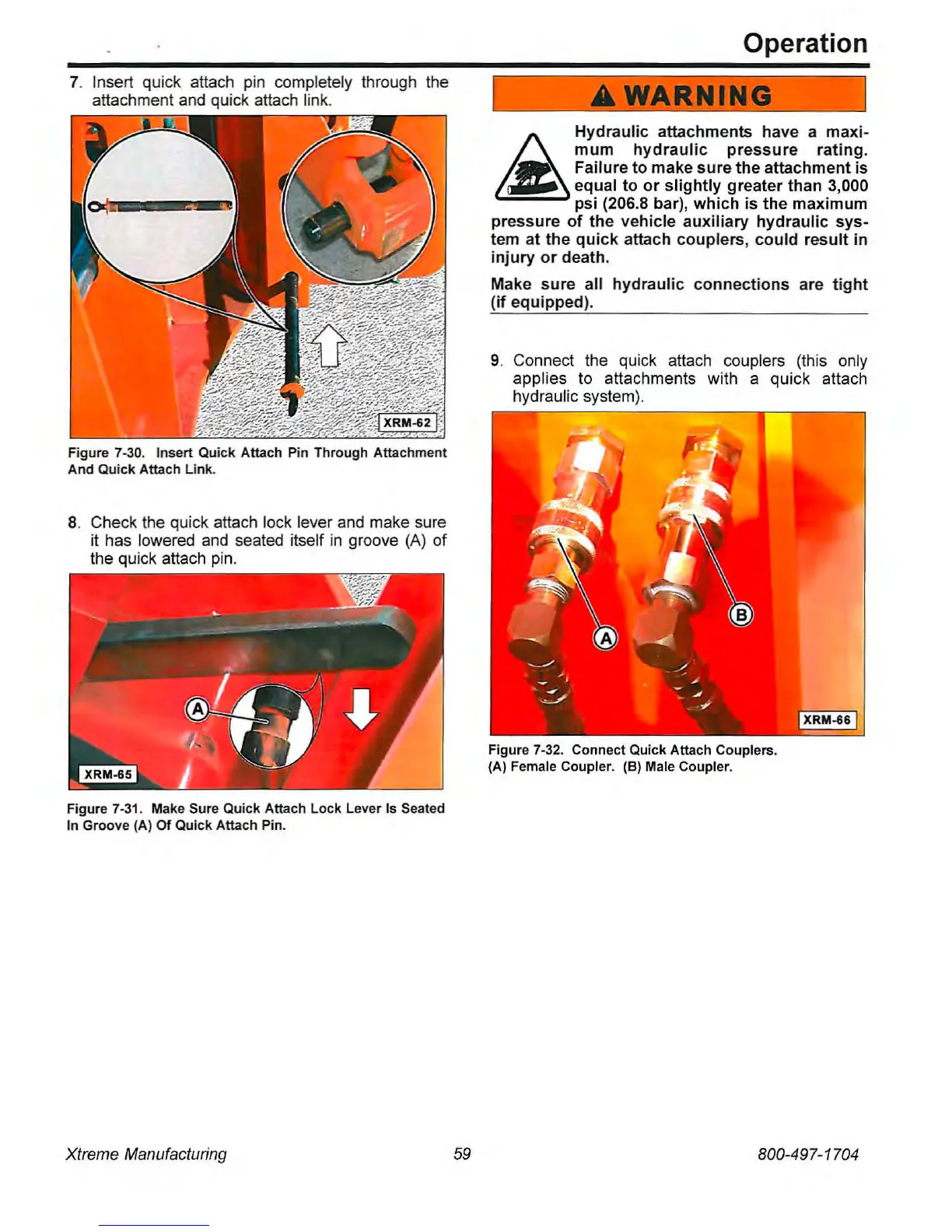

7.
Insert qUick attach pin completely through the
attachment and quick attach link.
•
Figure 7-30. Insert Quick Attach Pin Through Attachment
And Quick Attach Link.
8.
Check the quick attach lock lever and make sure
it has lowered
and
seated itself
in
groove
(A)
of
the quick attach pin.
Figure 7-31. Make Sure Quick Attach Lock Lever
Is
Seated
In Groove (A) Of Quick Attach Pin.
Xtreme Manufacturing
59
Operation
..
WARNING
Hydraulic attachments have a maxi·
£
mum
hydraulic
pressure
rating.
Failure
to
make
sure
the attachment is
equal
to
or
slightly
greater than 3,000
psi (206.8 bar),
which
is the maximum
pressure
of
the vehicle auxiliary hydraulic sys-
tem at the
quick
attach couplers, could result in
injury
or
death.
Make
sure
all hydraulic
connections
are
tight
(if
equipped).
9.
Connect the quick attach couplers (this only
applies to attachments with a quick attach
hydraUlic system).
Figure 7-32. Connect Quick Attach Couplers.
(A) Female Coupler. (B) Male Coupler.
800-497-1704
