Xycom 3510T - Page 100

3500 Series Flat Panel Industrial PC
100
BULB CONNECTOR
BULB ASSEMBLY
(INSIDE)
DISPLAY MOUNTING
SCREW LOCATIONS
BEZEL
FLAT PANEL DISPLAY
(FRONT VIEW)
DISPLAY MOUNTING
SCREWS LOCATIONS

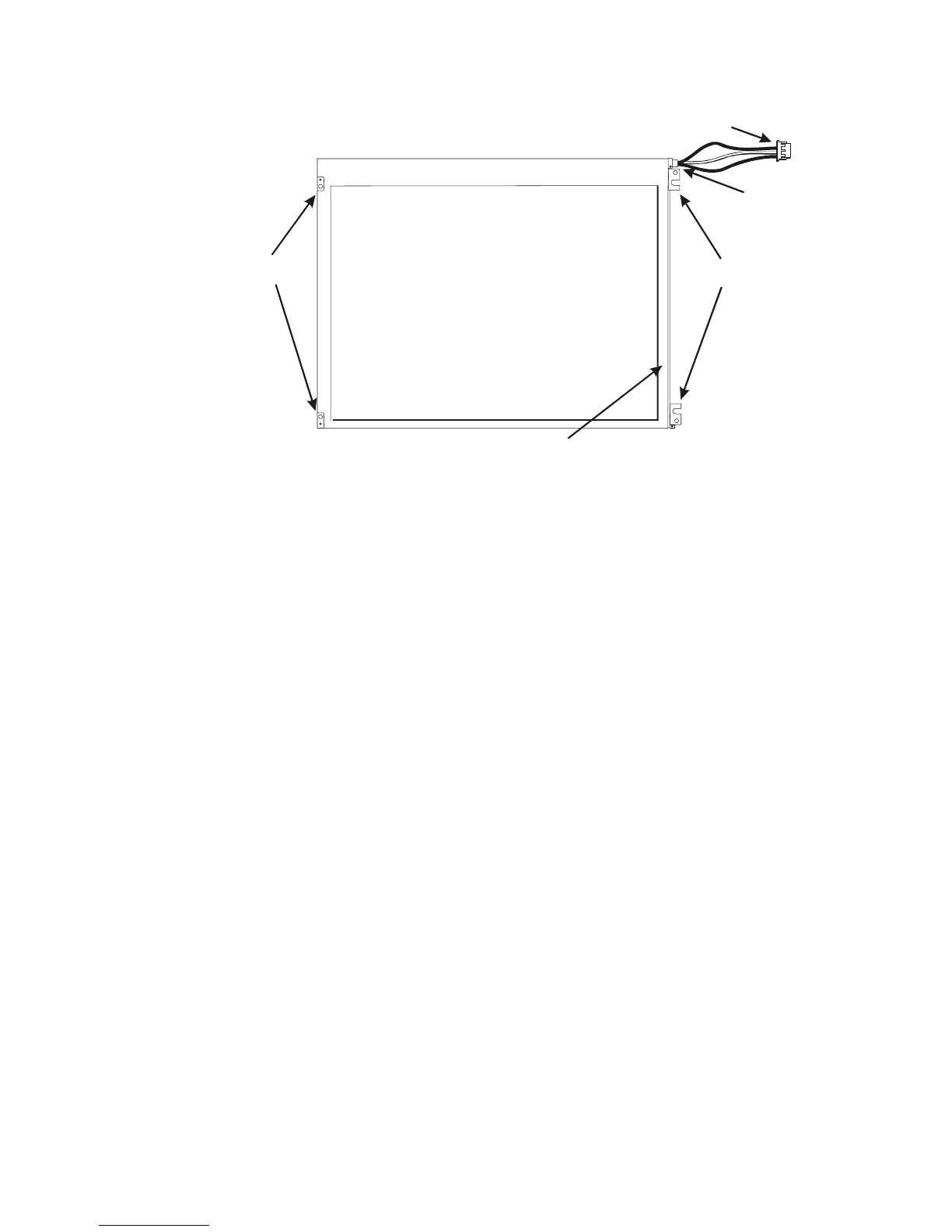

Figure D-2. Model #AA121SK12 Bulb Assembly – Front View
11. Referring to Figure D-3, insert a flat-bladed screwdriver between the bulb and
the clip and slide the bulb assembly out.
