Xycom 3510T - 3535 KPM(T) Front Panel

3500 Flat Panel Industrial PCs
22

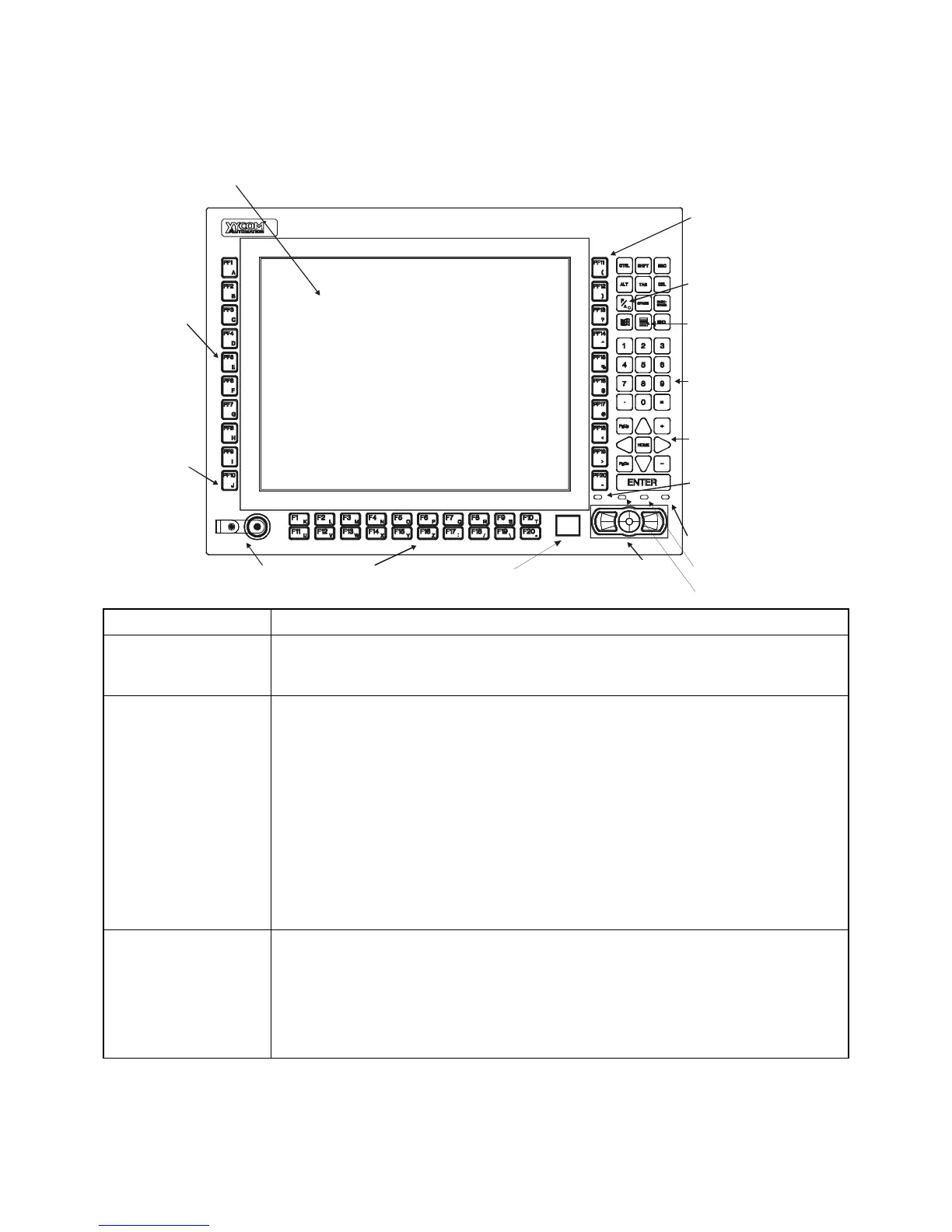

3535KPM(T) Front Panel
Programmable
Function Keys
F/A Key
Windows Keys
Numeric Keypad
Cursor Control
System
Status LED
(Power)
System
Status LED
(Input)
Industrial Mouse
Function Keys
Keyboard Input
Configuration
Key
Programmable
Function Keys
Flat Panel Display
IR DA PORT
DISK
COM
Feature Description
Display The 3535KPM(T) TFT flat panel impact-resistant shield protects the display from
breakage. If a touchscreen is factory installed, the touchscreen is backed by heat-
annealed safety glass replacing the impact-resistant shield.
System Status LEDs The 3535 features four status LEDs on the front panel, which you can use to
monitor system operation.
Power There is power to the 3535.
Disk The computer module is accessing the disk drive.
COM There is communication activity on one of the computer module’s serial
ports, including communication between the computer module and the
touchscreen (if on COM2) or a serial device.
Input The unit has a touchscreen and the LED gets brighter when touch input
is detected.
During power-up, firmware on the processor board checks the hardware
configuration against the configuration stored in the CMOS memory.
IR (Infrared) The IR port transceiver is located behind this window. The 3535 IR port is IrDA,
and ASK-IR compliant. You can connect the 3515 to any IrDA compatible
device, if you load special software (not included). The infrared (IR) link
operates at a distance of 0 to 1 meter and is capable of 115 Kbaud transfer
rates. Enable the interface through the BIOS setup menus.
Note: When the IR
port is chosen, COM2 is not available. Correspondingly, if COM2 is in use by the
touchscreen the IR is not operational.
