Chapter Three - Installation
35
Creating Custom Keypad Inserts (for 3510/3512KP Units)
You can customize your keypad with keypad inserts. Refer to Figures 3-14, 3-15, and
3-16 for insert dimensions and installation.

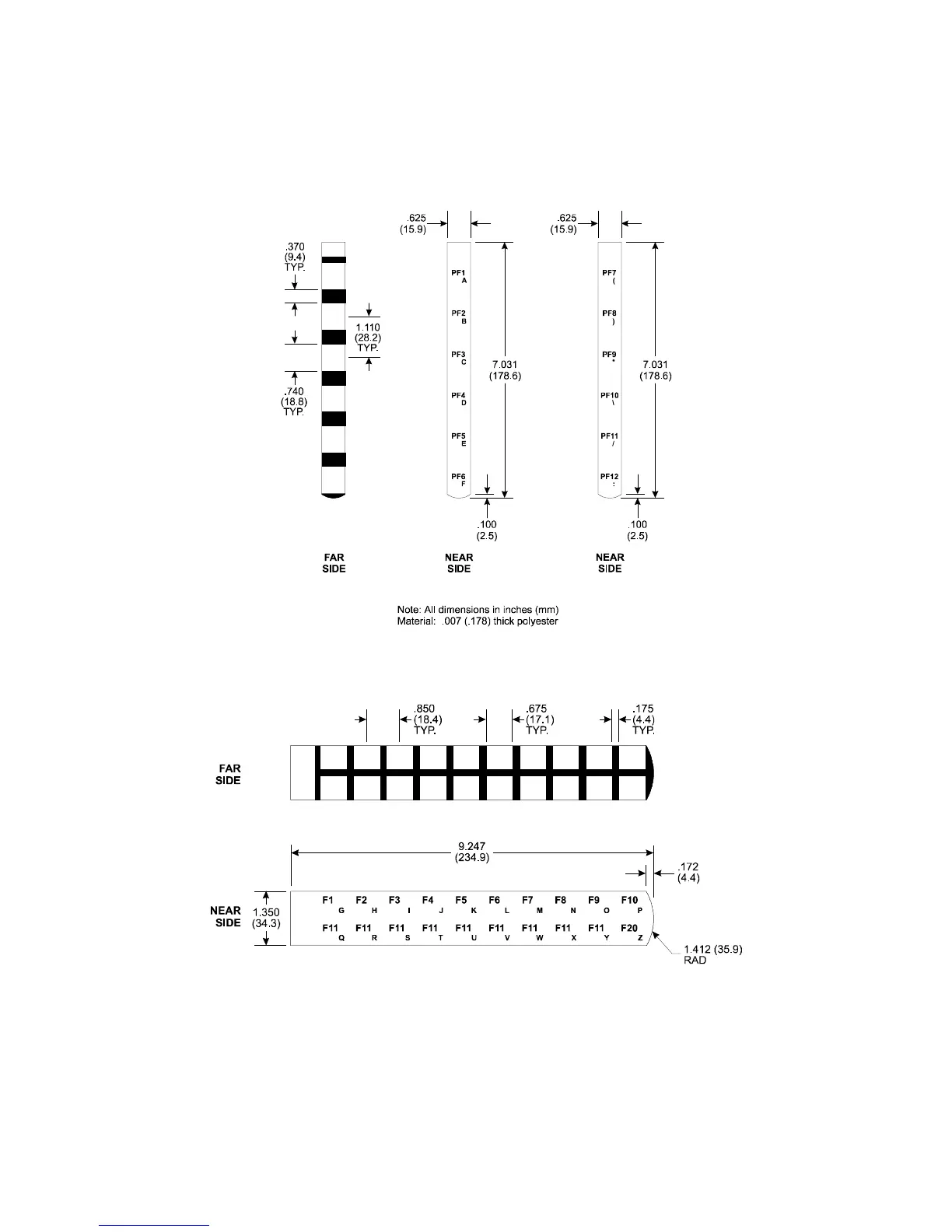

Figure 3-17. 3510KP/3512KP Keypad Inserts with Dimensions (PF1 – PF12)
Figure 3-18. 3510KP/3512KP Insert with Dimensions (F1 - F20)
