Chapter Three - Installation
31

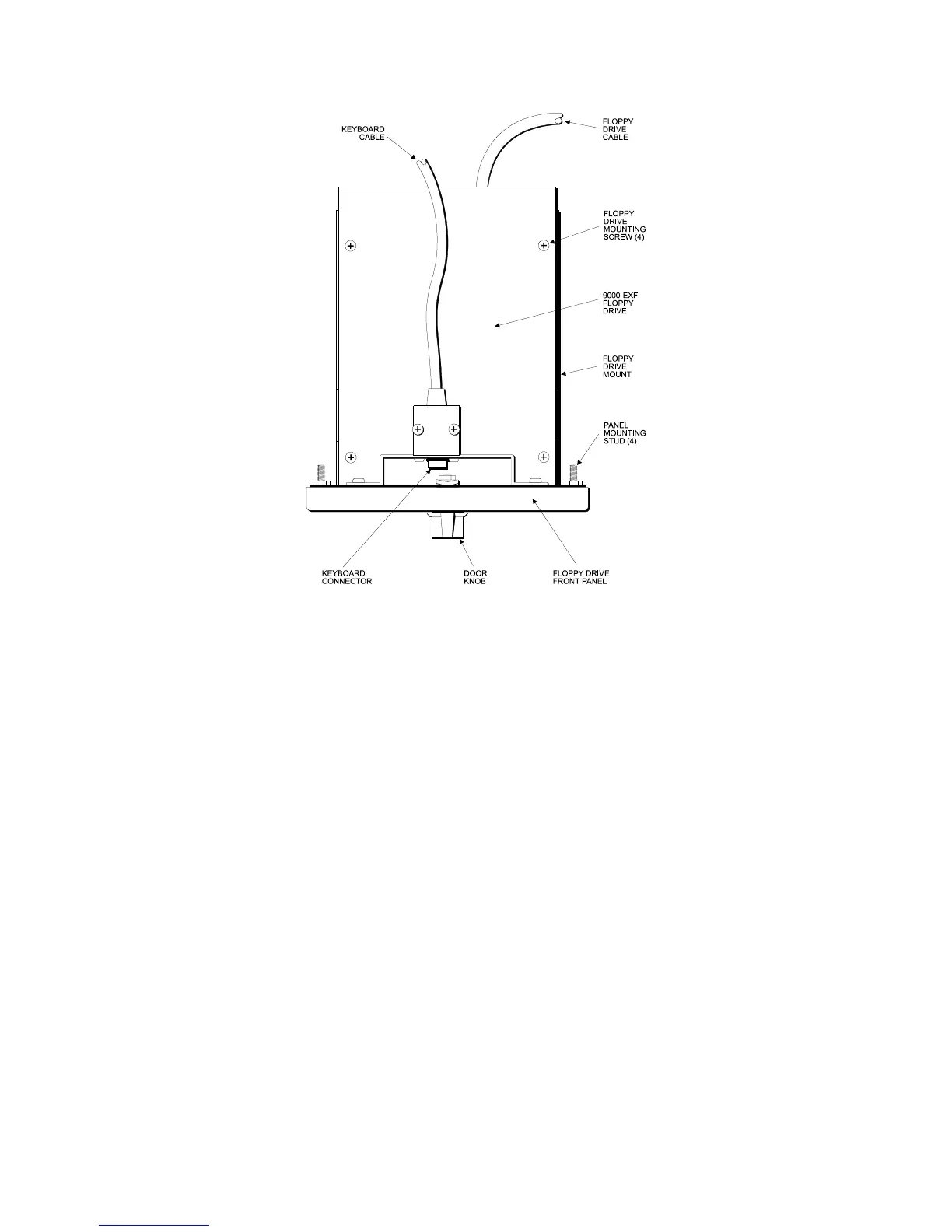

Figure 3-10. Floppy Drive - Front Mounting Option (top view)
9000-CDK External Front Access CD-ROM and Keyboard Kit
The 9000-CDK is a front access CD-ROM. This option (purchased separately)
connects to the parallel and keyboard ports on the 3500. The 9000-CDK assembly
functions as a parallel port CD-ROM while providing an additional parallel port for
printer use. The 9000-CDK includes a separate power supply that must be connected
for the CD-ROM to work. The supplied driver also needs to be installed on the 3500
unit for the CD-ROM to function. The 9000-EXF can be mounted in the 9000-CDK
(purchased separately) if front access floppy is desired. Refer to Figure 3-13 for
cutout dimensions.
