Xycom 3510T - Page 32

3500 Flat Panel Industrial PCs
32
3.675 (93.345)
(2 PLACES)
7.350 (186.69)
(2 PLACES)
CUTOUT
4.20 (106.68)
.180 DIA - .000 THRU
(6 PLACES)
.26 (6.604)
6.83 (173.482)
4.800 (121.92)
(3 PLACES)
INCHES (mm)

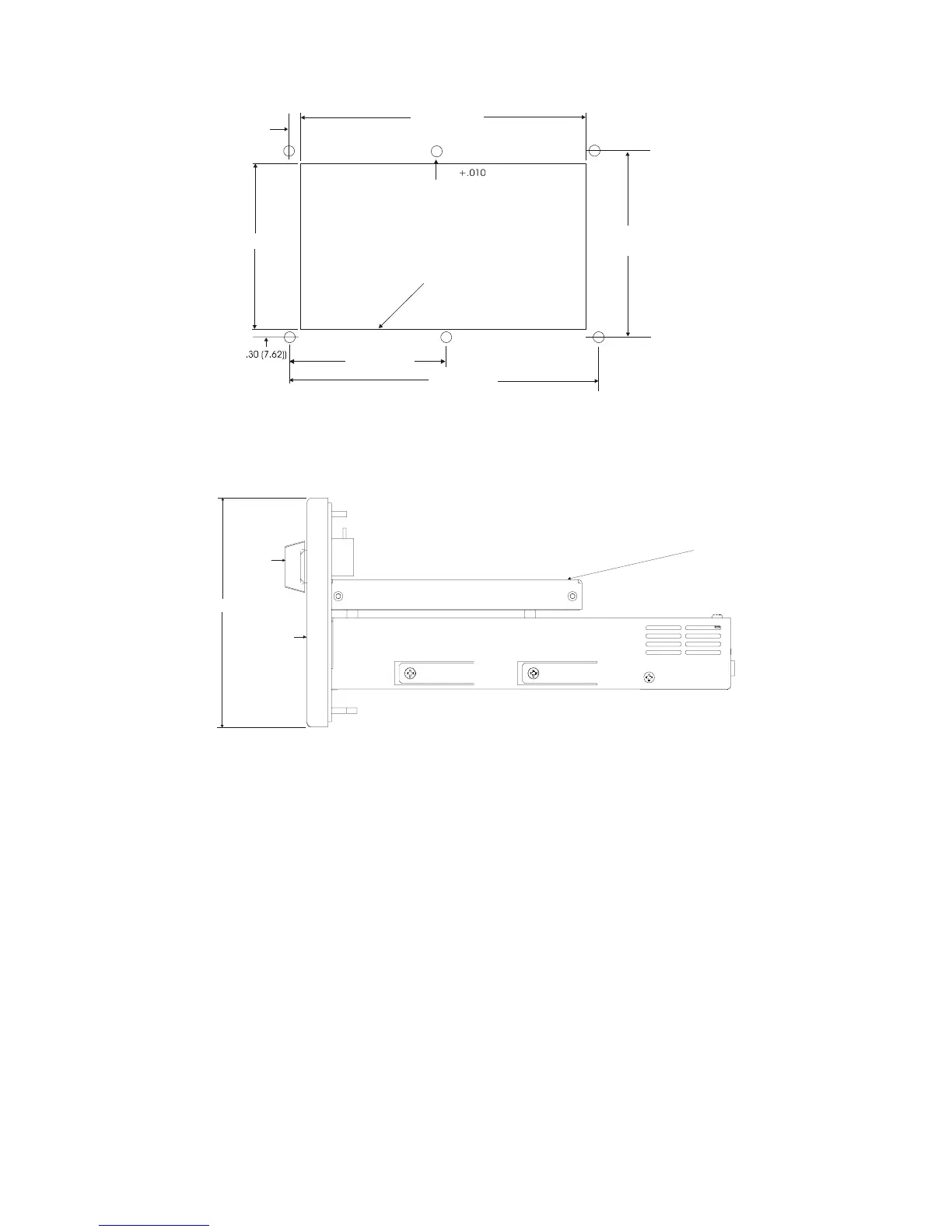

Figure 3-13. 9000-CDK - Cutout
9000-EXF
DOOR KNOB
CD-ROM DRIVE
FRONT PANEL
5.6 (142.24)
INCHES (mm)
Figure 3-14. 9000-CDK – Front Mounting Option (side view)
