BULB ASSEMBLY
(PARTIALLY RETRACTED)
BULB ASSEMBLY
(PARTIALLY RETRACTED)
BULB ASSEMBLY
RELEASE CLIP
BULB ASSEMBLY
RELEASE CLIP
DISPLAY
ASSEMBLY

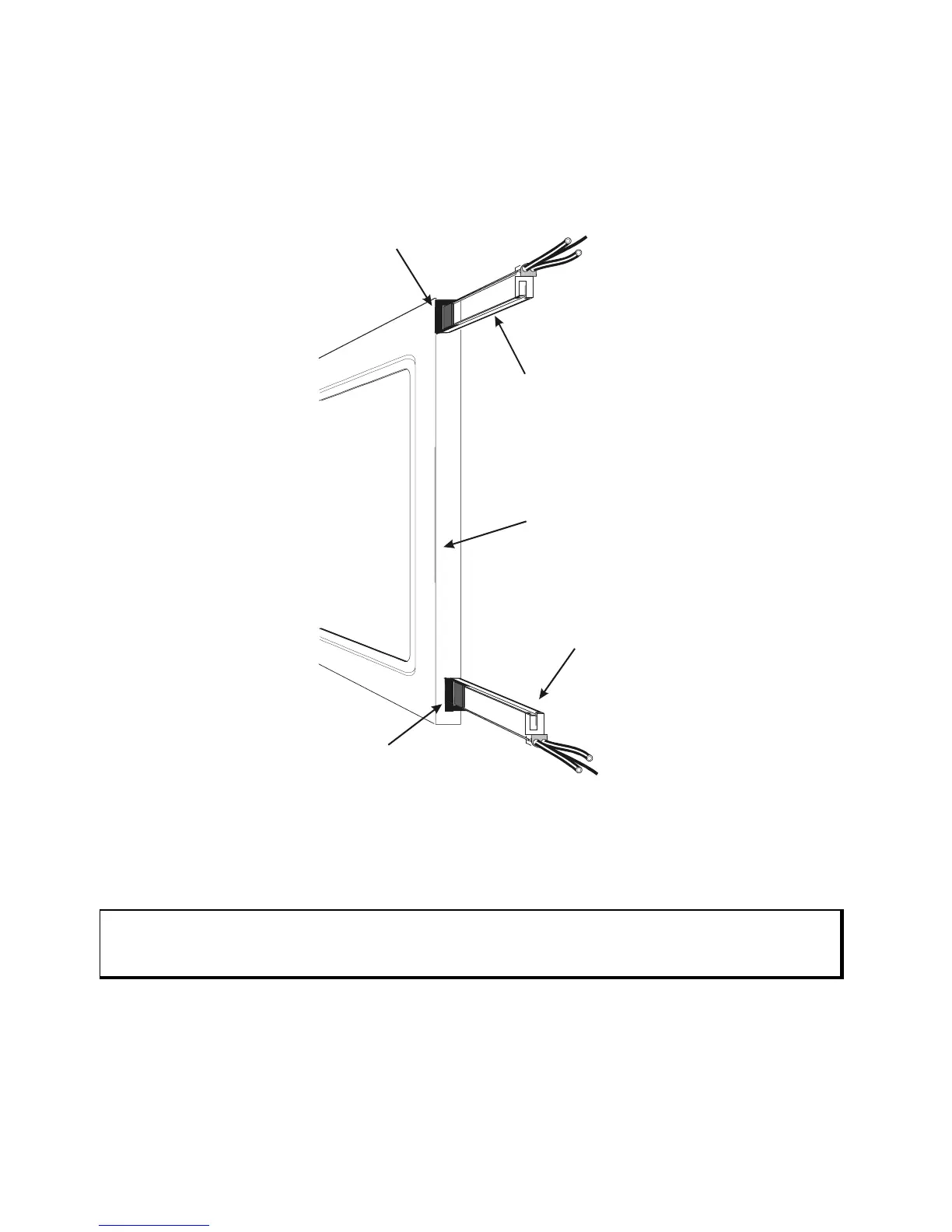

Figure D- 1. Model #AA104VB02 Bulb Assembly
13. Slide the new assembly into the opening from which the old assembly was
removed.
Note
Xycom Automation recommends replacing both bulbs at the same time.
14. Reverse steps 1 through 9 to reassemble the unit.
