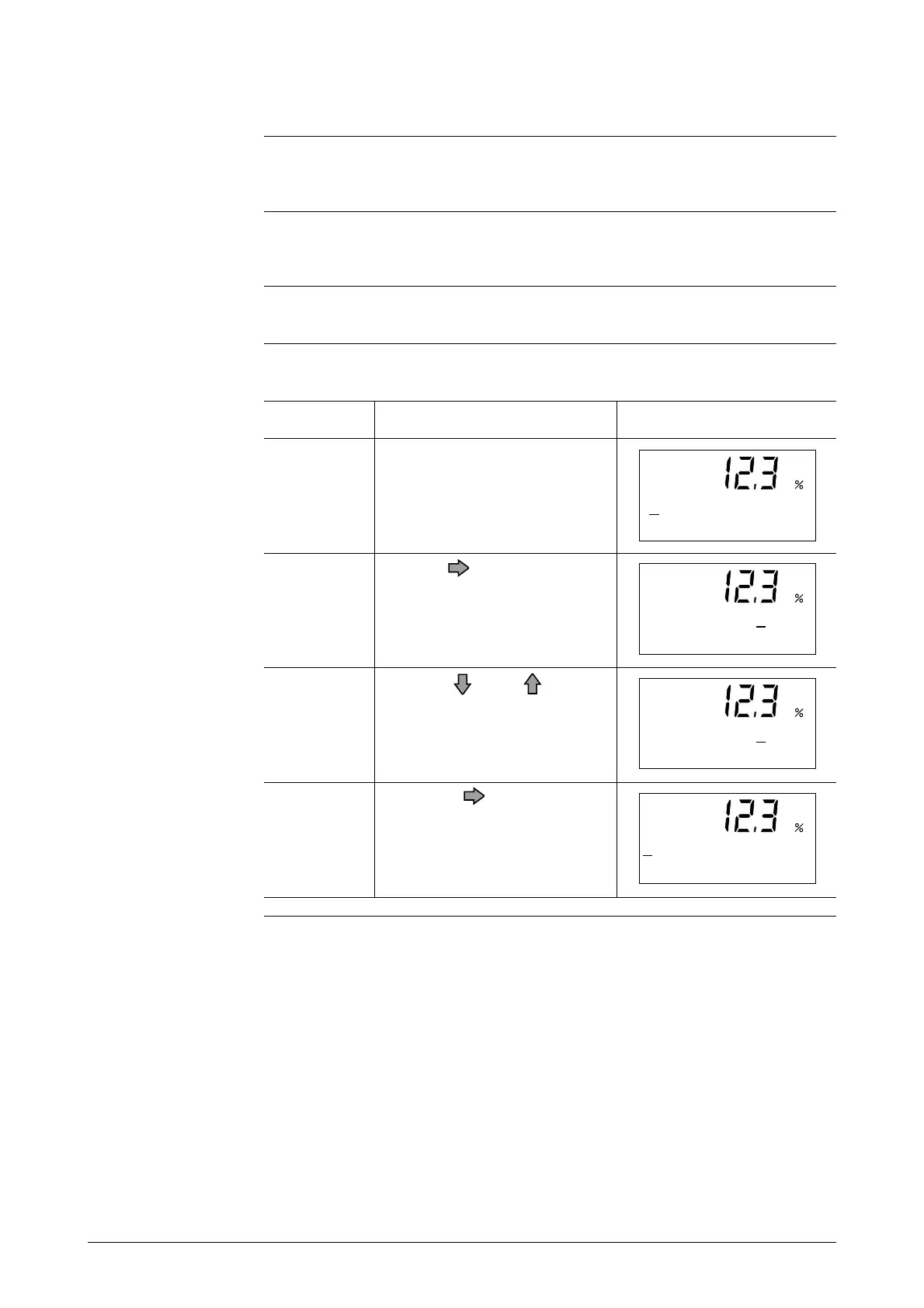

4 - 52
Setting High and Low Limit Alarms
Introduction
An alarm is output when the instantaneous percent flow rate exceeds the pre-
set high and low limits.
Important
This function can be used when the high/low limit alarm is selected in the
contact output function.
Default setting
HI–ALM +100% LO–ALM +100%
Setting range
HI–ALM –115 - +115% LO–ALM –115 - +115%
Open the high and low limit
alarm setup screen by following
the steps to enter the Engineer-
ing Mode.
Use the key to move the
cursor to the desired digit.
Use the and keys to
change the numbers.
Touch the key to move the
cursor to the "#".
1
ScreenProcedureStep
2
3
4
# HI -ALM +100 %
LO-ALM -100 %
# HI -ALM +100 %
LO-ALM -100 %
# HI -ALM +180 %
LO-ALM -100 %
# HI -ALM +100 %
LO-ALM -100 %
