Electrical Wiring (2)
Cable between
detector and
converter
Use a dedicated cable (Model: MGA12W) to connect the detector to the con-
verter. The signal cable used may be a dedicated cable made by Yamatake or
a commercially available cable and depends on fluid conductivity, cable
length, and the diameter of the detector.
Please refer to the following:
• Dedicated Yamatake cable usage range: ranges A and B
• Other cable usage range: A only

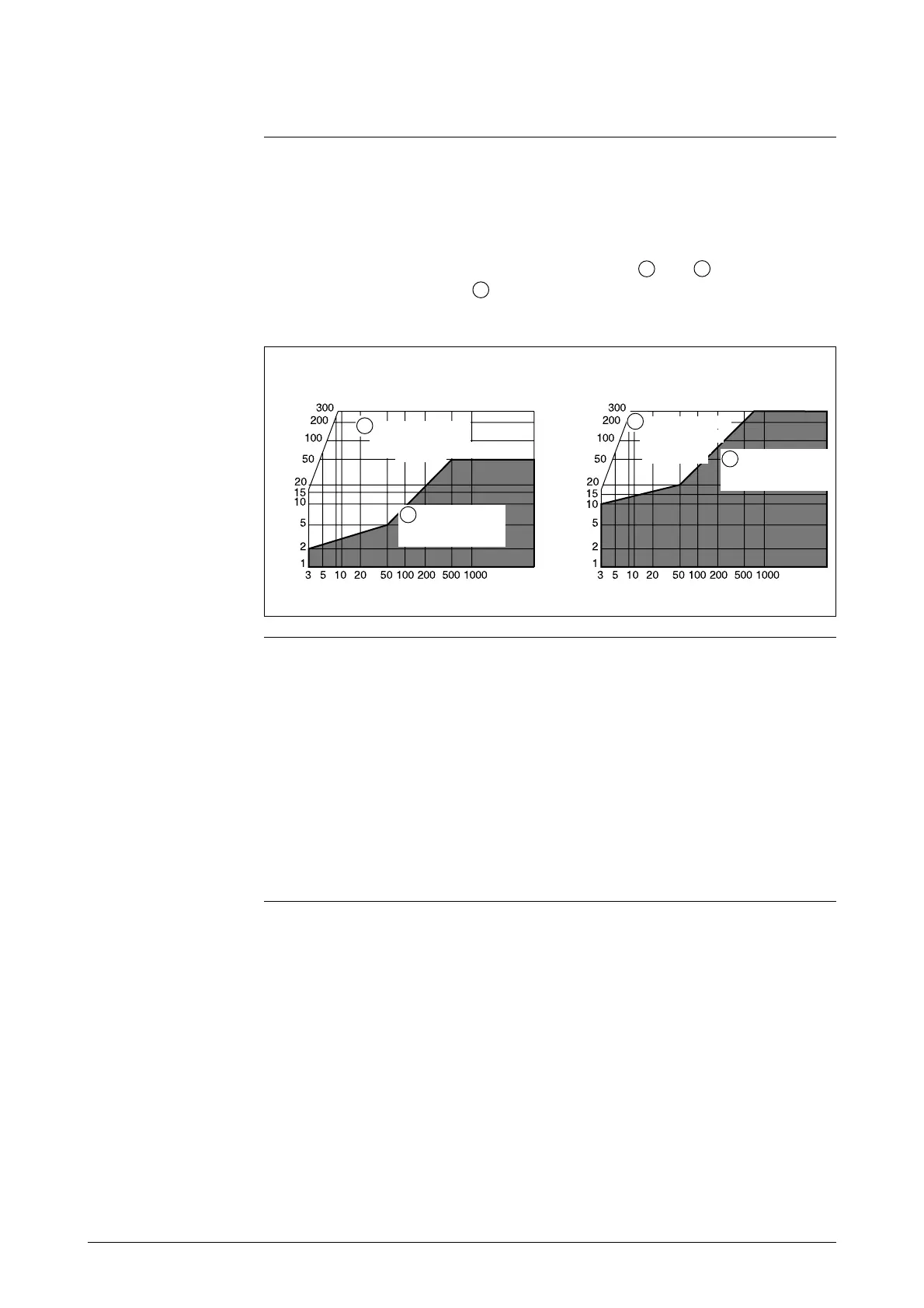

Figure 2-5 Relation between fluid conductivity and cable length
Cable (between remote detector and converter):
Length: Max. 300 m (Depends on fluid conductivity)
Outer diameter: 10 - 12 mm
Signal cable:
Dedicated cable (Diameter 11.4 mm, 0.75 mm
2
) or equivalent com-
mercially available cable (e.g. CVVS, CEEV)
Excitation cable:
Dedicated cable (Diameter 10.5 mm, 2 mm
2
) or equivalent commer-
cially available cable (e.g. CVV)
2.5 mm or 5 mm diameter Diameter 10 mm or more
Cable length (m)
Cable length (m)
A Usage range of
commercially
available cable
B Usage range of
dedicated cable
(Model: MGA12W)
Fluid conductivity (µS/cm)
Fluid conductivity (µS/cm)
A Usage range of
commercially
available cable
B Usage range of
dedicated cable
(Model:
MGA12W)
Cable specifications
(Continued on next page)
