2.2 Installation Method
Installing the Converter
Basic installation
method
Installation
There are three ways to install the converter: integral converters are as-
sembled with the detector; remote detectors can be wall mounted, or mounted
on a 2B converters are assembled pipe.

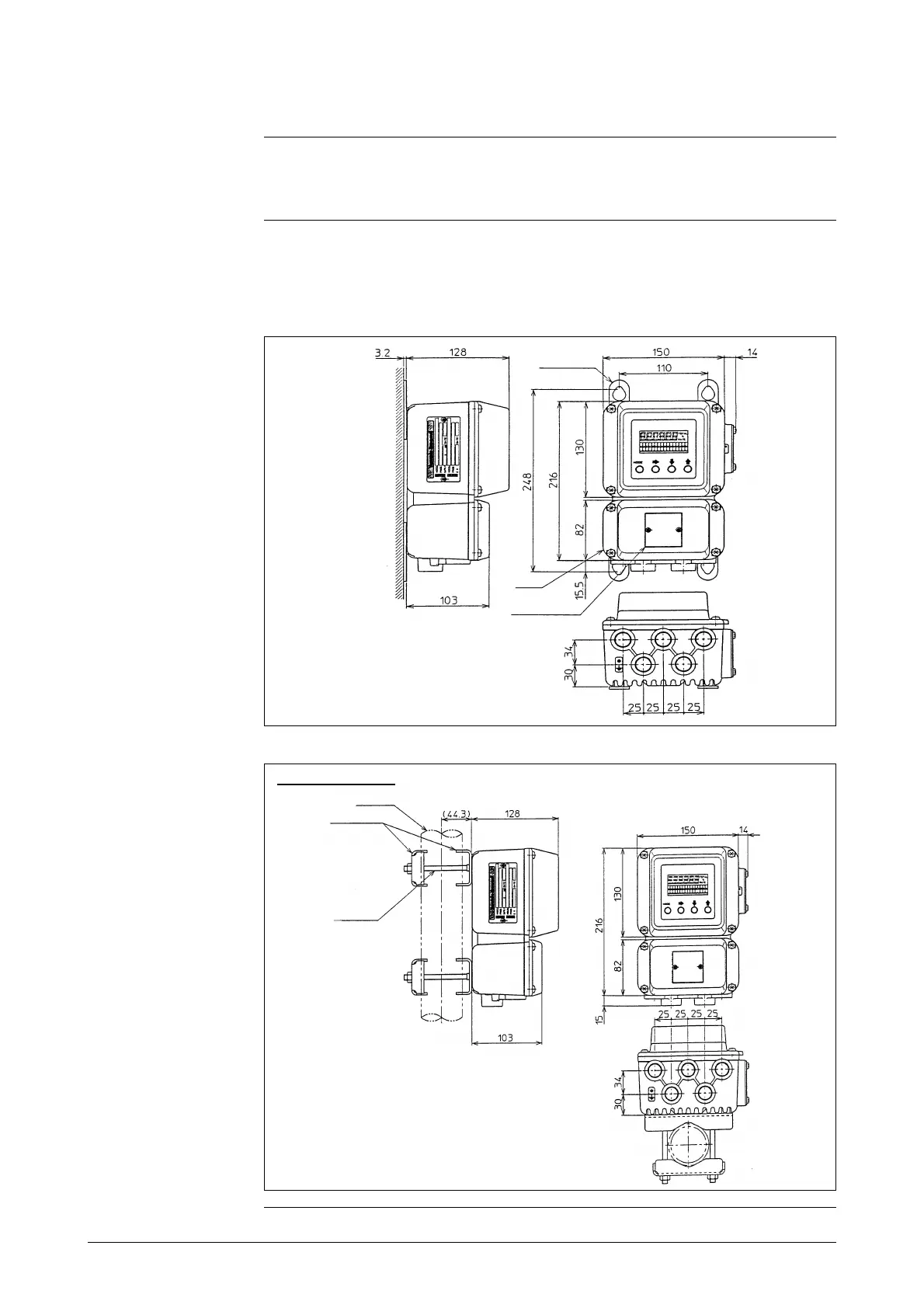

Figure 2-1 Wall-mounted
Mounting
plate
Terminal
box
Tag No. plate
Figure 2-2 2B pipe-mounted
2B pipe
2B pipe-mounted
Mounting bracket
Material: SPCC
(Galvanized)
Mounting bracket
(Continued on next page)
Material: US304
