ENGINE
Assembling the Engine and Components
12/05
6LY3 Service Manual
5-65
© 2007 Yanmar Marine International

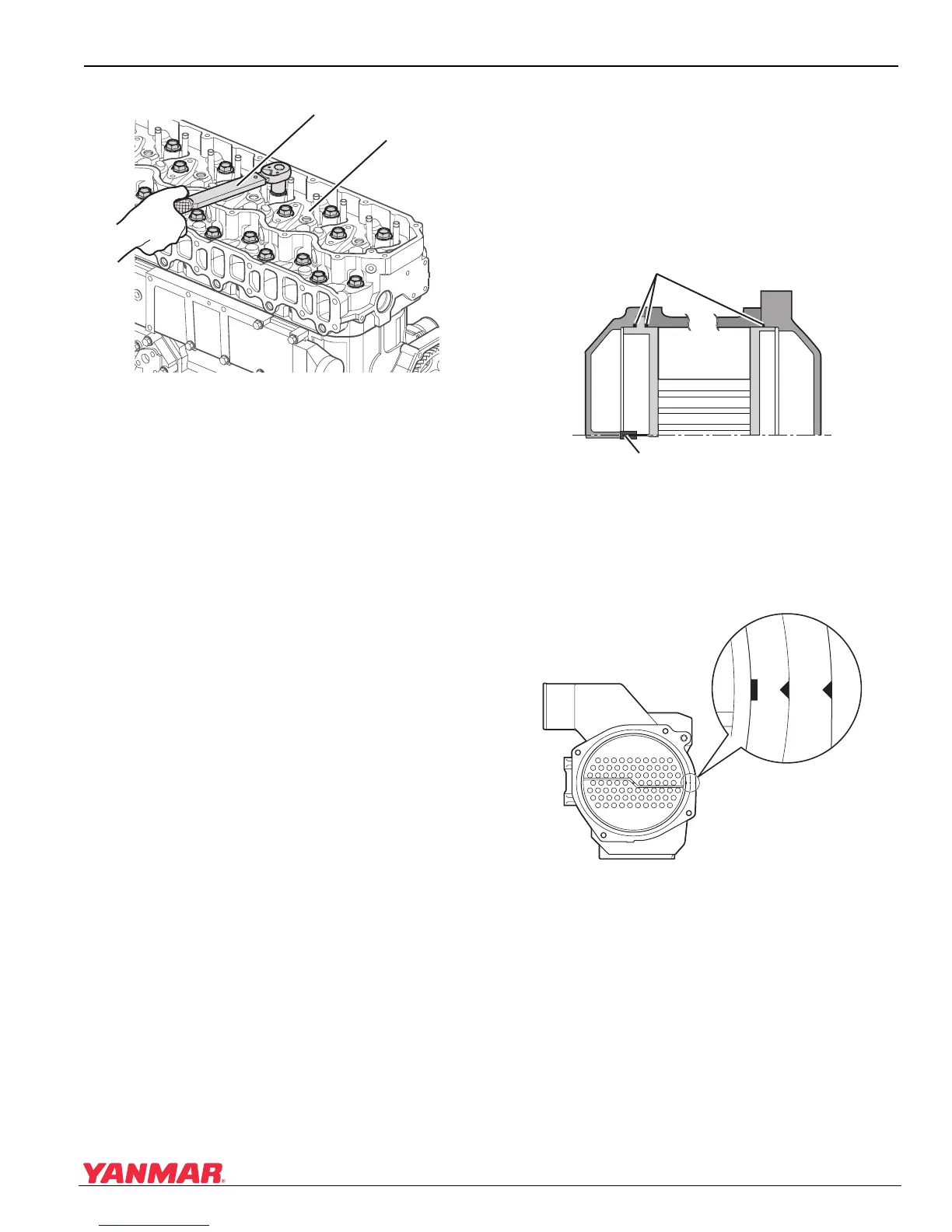

Figure 5-105
Figure 5-105
1–Torque Wrench
2 – Cylinder Head
Installing the Intercooler
1. Apply silicone grease to the O-ring
(Figure 5-106, (1)). Fit the O-ring to the
flywheel end (Figure 5-106, (4)) of the cooler
core and insert the core into the cooler body.
NOTICE: Align marks of the core and the case
(Figure 5-107).
Figure 5-1 06
Figure 5-106
1–O-Ring
2 – Coolant Pump End
3 – Separator Packing
4 – Flywheel End
Figure 5-1 07
Figure 5-107
2. Apply silicone grease to the O-rings, fit two
O-rings to both sides of the cooler core and fit
the side covers to the cooler.
3. Fit the intercooler to the engine.
(1)
(2)
0005807
(1)
(3)
(4) (2)
0005808
0005809
To Next Page
