Yanmar 6LY3 series Service Manual

LUBRICATION
Oil Filter Components and Functions
12/05
6LY3 Service Manual
8-9
© 2007 Yanmar Marine International
OIL FILTER COMPONENTS AND
FUNCTIONS
The oil filter assembly is installed on top of the
intercooler.
It consists of a full flow oil filter and a bypass oil
filter. Both the full flow oil filter and bypass oil filter
have paper type components. These filters are
easy to remove.
To prevent seizure in the event of the filter clogging,
a bypass circuit is provided.

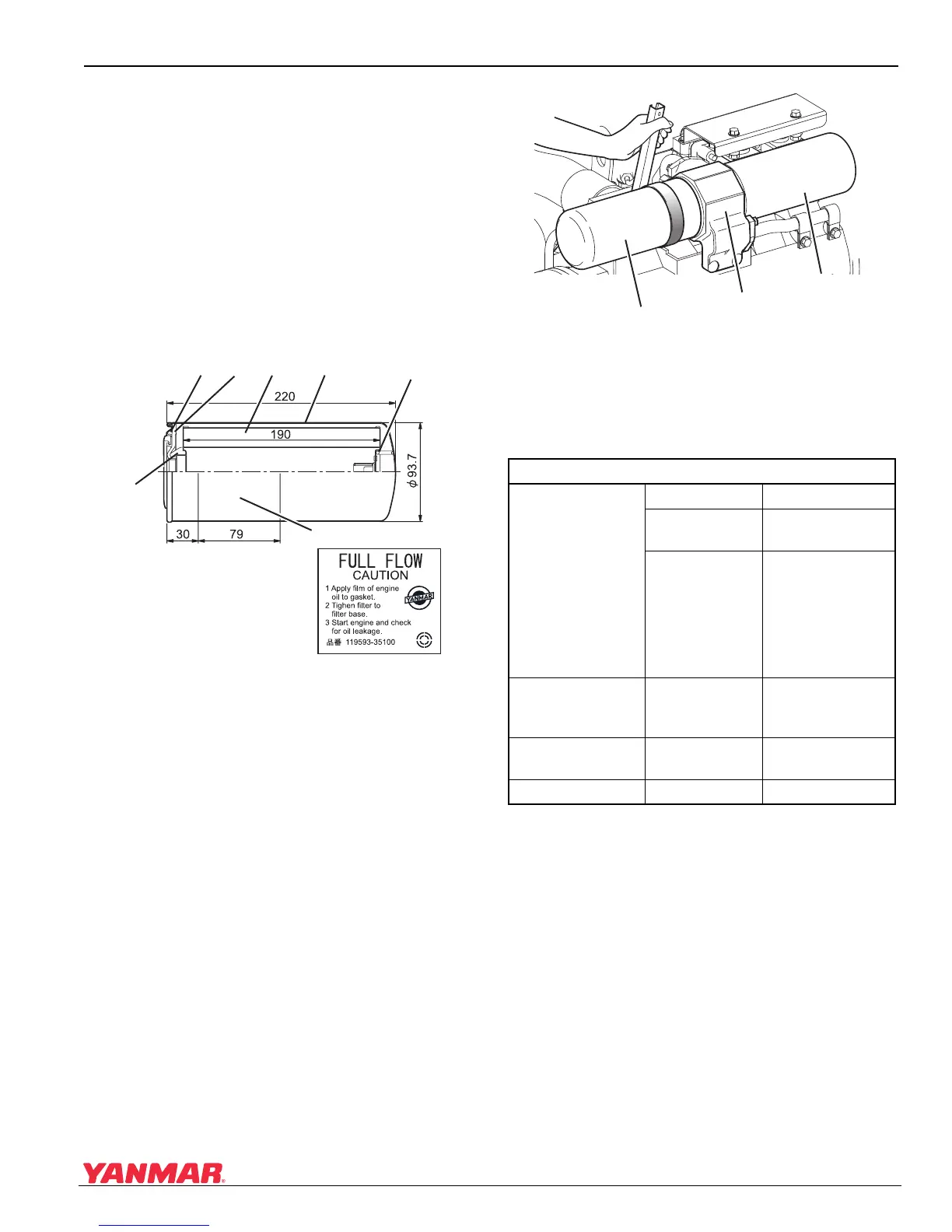

Figure 8-7
Figure 8-7
1 – Cover Seal
2 – Cover Assembly
3 – Filter Element
4 – Filter Case
5 – Set Spring
6 – Caution Label
7 – Element Seal
Figure 8-8
Figure 8-8
1 – Full Flow Oil Filter
2 – Filter Bracket
3 – Bypass Oil Filter
Replacing the Oil Filter
See Removing the Oil Filter and Oil Cooler on
page 5-20 and Installing the Engine Oil Filters on
page 5-71.
0006227
(5)
(4)
(3)
(2)
(1)
(6)
(7)
Specifications
Pressure Loss
Full-flow Bypass
0.03 MPa
(4.4 psi) or less
3.4 L (3.6 qt) /
minimum
50 L / min.
SAE#30
80°C (176°F)
Deferential press.
In / out
0.44 MPa
(4.5 kgf / cm
2
)
(64 psi)
SAE#30
80°C (176°F)
Relief Valve
Pressure (Open)
0.18 ± 0.02 MPa
1.8 ± 0.2 kgf/cm
2
(26 psi)
—
Filtration Area 5800 cm
2
(899 sq. in.)
5700 cm
2
(884 sq. in.)
Filtration (Nominal) 20 µ 1 µ
0006228
(1)
(2)
(3)
