Yanmar 6LY3 series Service Manual

ELECTRICAL AND ECU
Wiring Diagram
12/05
6LY3 Service Manual
12-9
© 2007 Yanmar Marine International

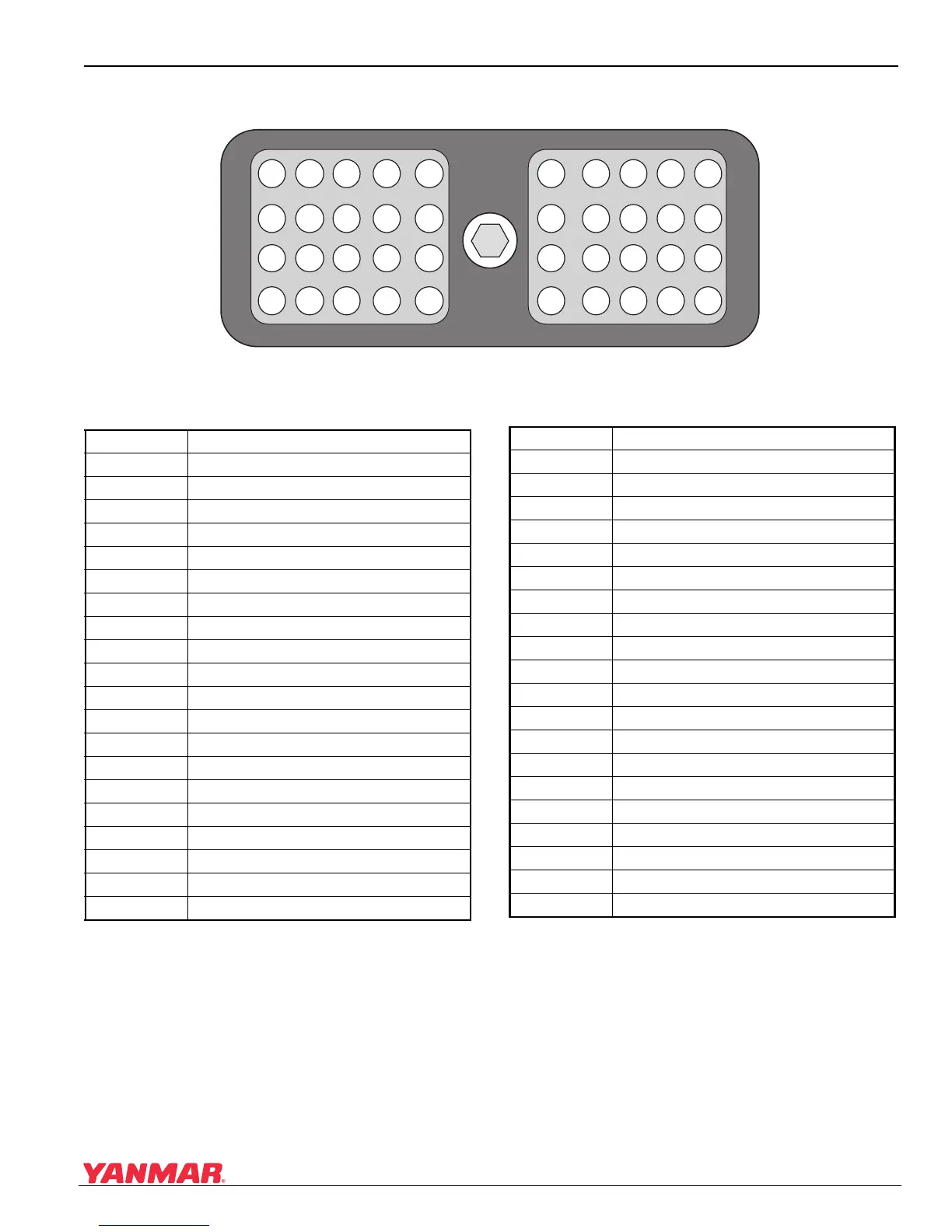

ECU Connector Pin Configuration
Figure 12-12
Figure 12-12
PBSTG_SG_P2G_P1OUT2OUT1
RPSB2SNS5CAMPSTHLSTR
EMSB1RARSTSWMNRG-P
IGN2STHSSTCAM-CRK-AHR2AHR1TAADTA R DRA
IGN1NTSCAM+CRK+
STHTHFPLOCANL
THLOAN1THWCANH
1
11
21
31
10
20
30
40
302524232221
201514131211
10987654321
19181716
29282726
403534333231 39383736
0006117
PIN Description
1 Rack Actuator
2 Retard Timer Solenoid
3 Advance Timer Solenoid
4 Air Heater Relay 1
5 Air Heater Relay 2
6 Crank Speed Sensor Pulse -
7 Cam Speed Sensor Pulse -
8 Starter ON
9 Sub-Throttle Switch
10 2nd Station Key
11 ECU Power GND
12 ECU Main Relay
13
14 Actuator Relay
15 12V DC
16 Crank Speed Sensor Pulse +
17 Cam Speed Sensor Pulse +
18 Neutral Switch
19 1st Station Key
20 Emergency Stop
21 Starter Check
22 Sub-Throttle Indicator
23
24 5V Supply Voltage
25 12V DC
26 i2 Communication CANL
27 Oil Pressure Sensor
28 Fuel Temperature Sensor
29 Throttle Position Sensor
30 Rack Position Sensor
31
32
33 Ground
34 Ground
35 Sensor GND
36 i2 Communication CANH
37 Coolant Temperature Sensor
38
39 Oil Temperature Sensor
40 Boost Pressure Sensor
PIN Description
