FUEL SYSTEM
Fuel Injection Pump / Governor / Timer
12/05
6LY3 Service Manual
6-23
© 2007 Yanmar Marine International
19. Install a new oil seal (Figure 6-34, (2)) in the
timer cover (Figure 6-34, (1)). NOTICE: When
removing an oil seal, replace it with a new one.

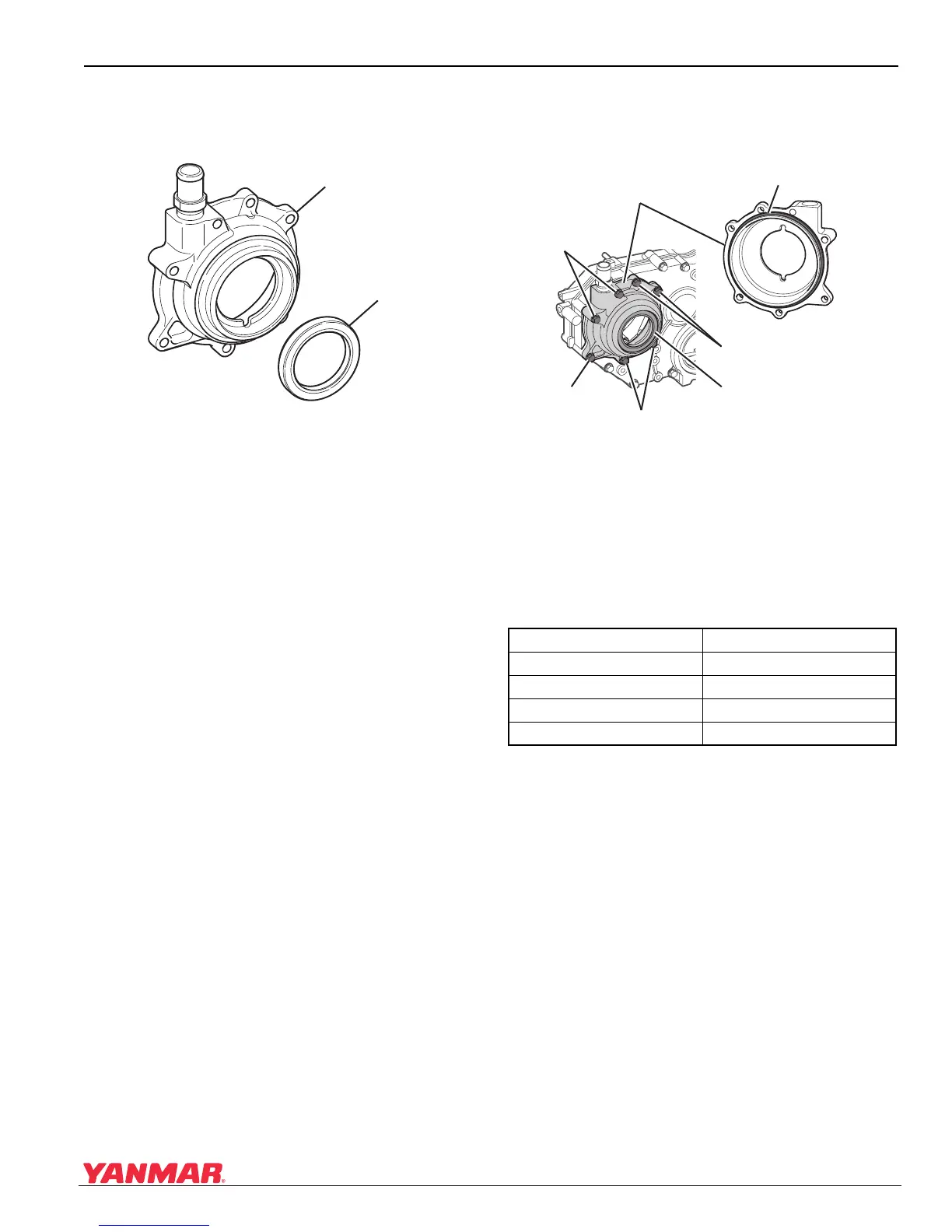

Figure 6-34
Figure 6-34
1 – Timer Cover
2 – Oil Seal
20. Apply an even bead of Three Bond
®
1207C
sealant (Figure 6-35, (3)) on the mating surface
of timer cover (Figure 6-35, (2)).
Figure 6-3 5
Figure 6-35
1 – M8 x 85 mm Bolts
2 – Timer Cover
3 – Three Bond® 1207C Sealant
4 – M8 x 120 mm Bolts
5 – New Oil Seal
6 – M8 x 30 mm Bolts
7 – M8 x 65 mm Bolt
(1)
(2)
0005697
Bolt Torque
M8 x 85 mm 20.4 N·m (15.5 lb-ft)
M8 x 120 mm 35.5 N·m (26.1 lb-ft)
M8 x 30 mm 20.4 N·m (15.5 lb-ft)
M8 x 65 mm 20.4 N·m (15.5 lb-ft)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
0005698
