ELECTRICAL AND ECU
Warning Devices
12/05
6LY3 Service Manual
12-11
© 2007 Yanmar Marine International

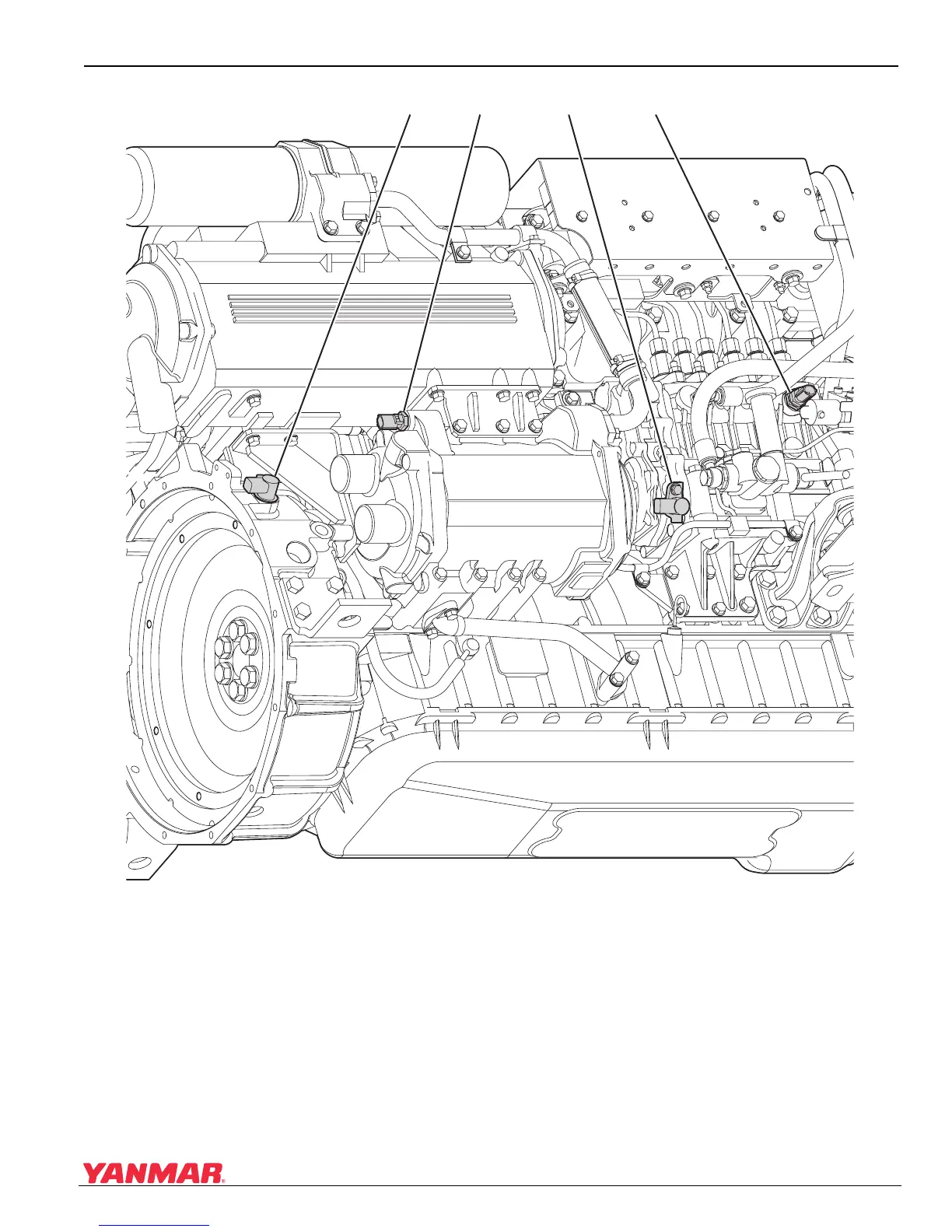

Figure 12-14
Figure 12-14
1 – Oil temperature sensor installed on the oil
cooler with sealant tape.
Torque = 19.6 ± 3 N·m (14.4 ± 2.2 lb-ft)
2 – Fuel temperature sensor installed on the
fuel injection pump.
Torque = 19.6 ± 3 N·m (14.4 ± 2.2 lb-ft)
3 – Fuel injection pump rpm sensor installed on
the fuel injection pump.
4 – Crankshaft rpm sensor installed on the
flywheel housing.
(1) (2) (3) (4)
0006279
