Yanmar 6LY3 series Service Manual

ELECTRICAL AND ECU
Air Heater Components and Functions
12/05
6LY3 Service Manual
12-15
© 2007 Yanmar Marine International

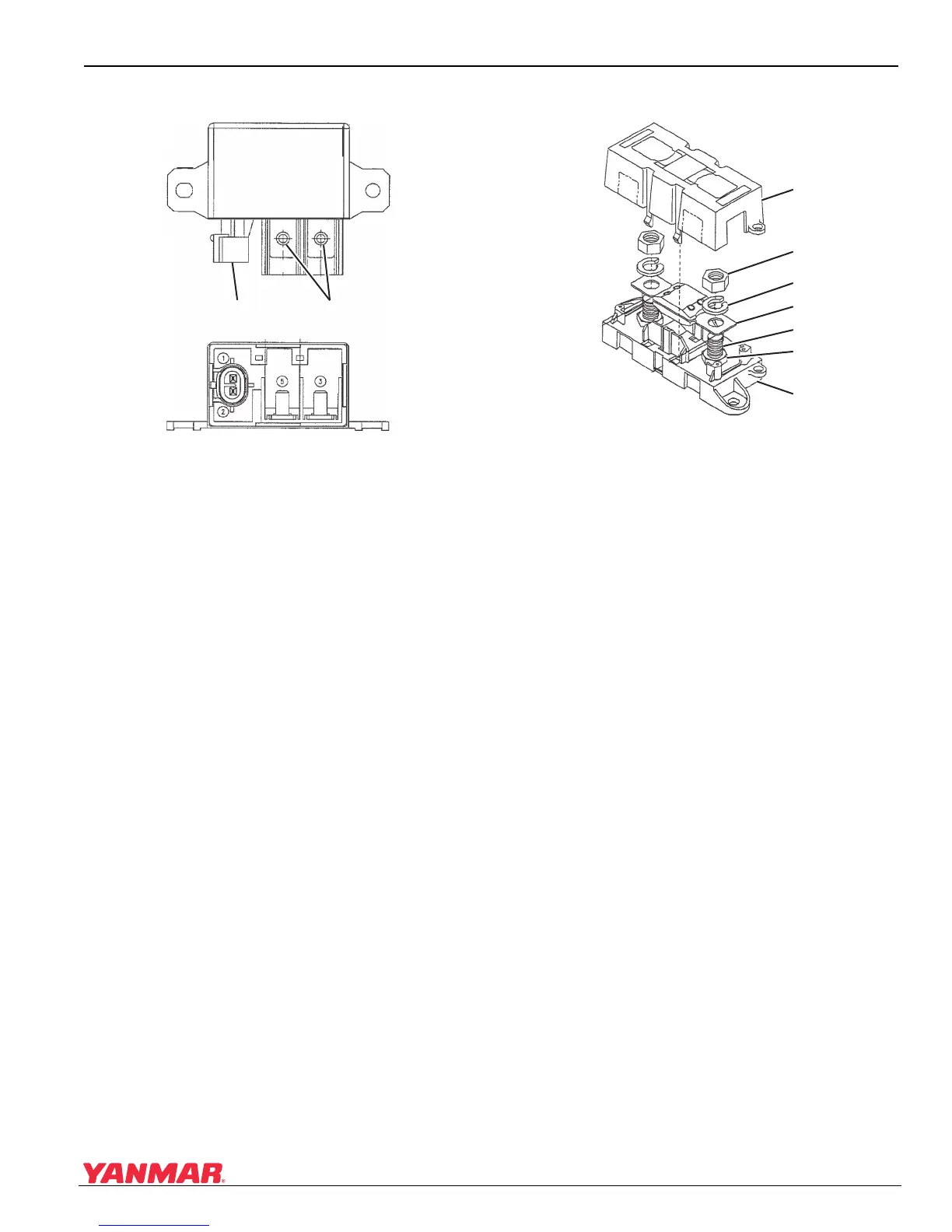

Heater Relay
Figure 12-22
Figure 12-22
1 – Use TYCO:
Connector Housing 282080-1
Seal 281934-2
Terminal 282110-1
2 – Bolt Terminals M6
Torque = 5 N·m (44 lb-in) Maximum
Heater Fuse
Figure 12 -23
Figure 12-23
1–Cover
2–Nut
3–Washer
4 – Fuse
5–Bolt
6–Jam Nut
7–Base
(2)(1)
0006286
(1)
(2)
(3)
(4)
(5)
(6)
(7)
0006287
