Yanmar 6LY3 series Service Manual

TROUBLESHOOTING
Troubleshooting by DTC Fault Codes
13-56 6LY3 Service Manual
© 2007 Yanmar Marine International
P0335/4 (Crank Speed Sensor)

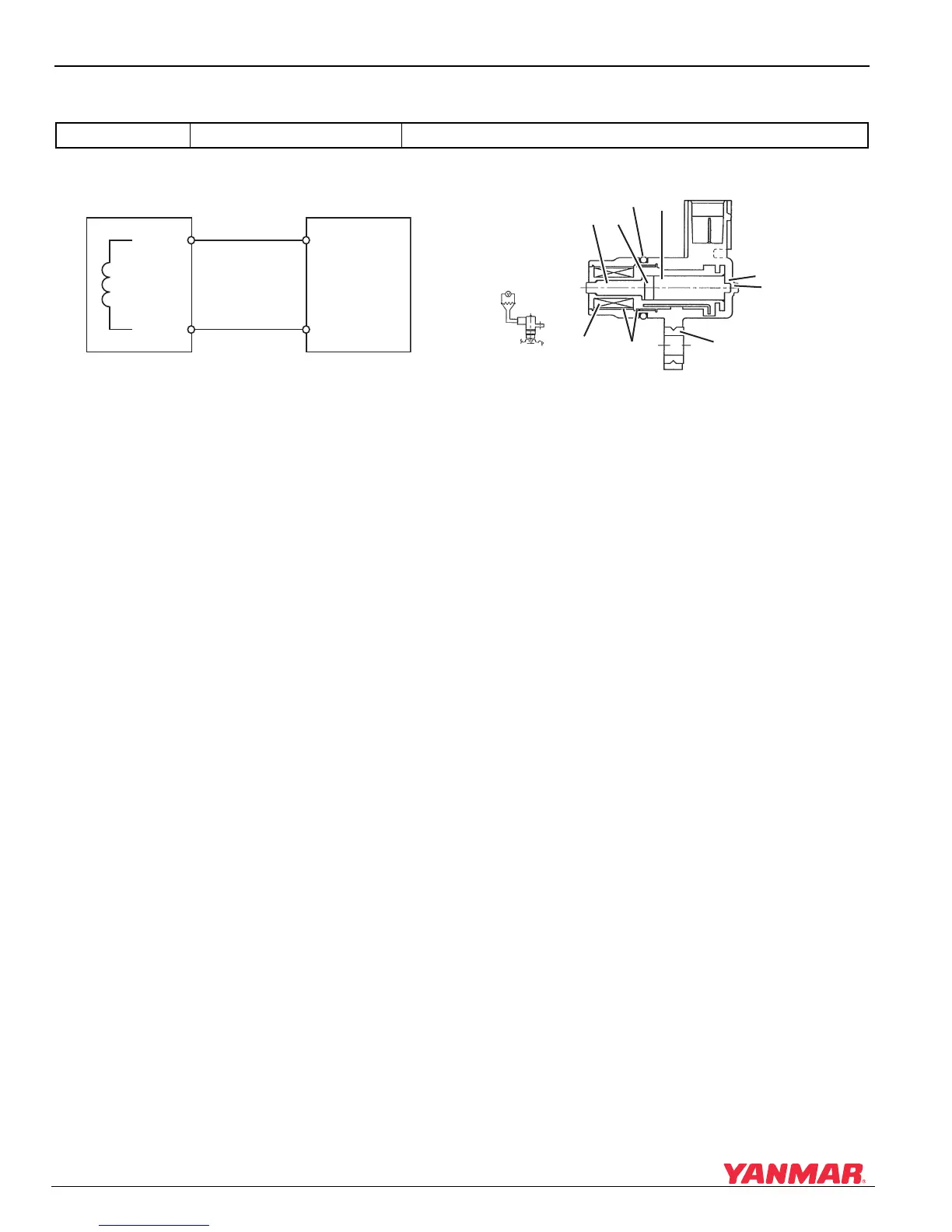

Electrical Circuit Chart
Figure 13-25
Figure 13-25
1 – Crank Speed Sensor
2–ECU
Figure 13-26
Figure 13-26
Part Code: 158557-61720
1–Core
2 – Magnet
3–O-Ring
4–Yoke
5 – Coil Bobbin Comp.
6 – Sensor Body
7–Bushing
8–Epoxy Tape
9–Coil
DTC P0335/4 Crank Speed Sensor
CRK+
CRK-
B
A
CRK-
6
CRK+
16
(1) (2)
0006130
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
0006331
