Yanmar 6LY3 series Service Manual

PERIODIC MAINTENANCE
Periodic Maintenance Procedures
4-16 6LY3 Service Manual
© 2007 Yanmar Marine International

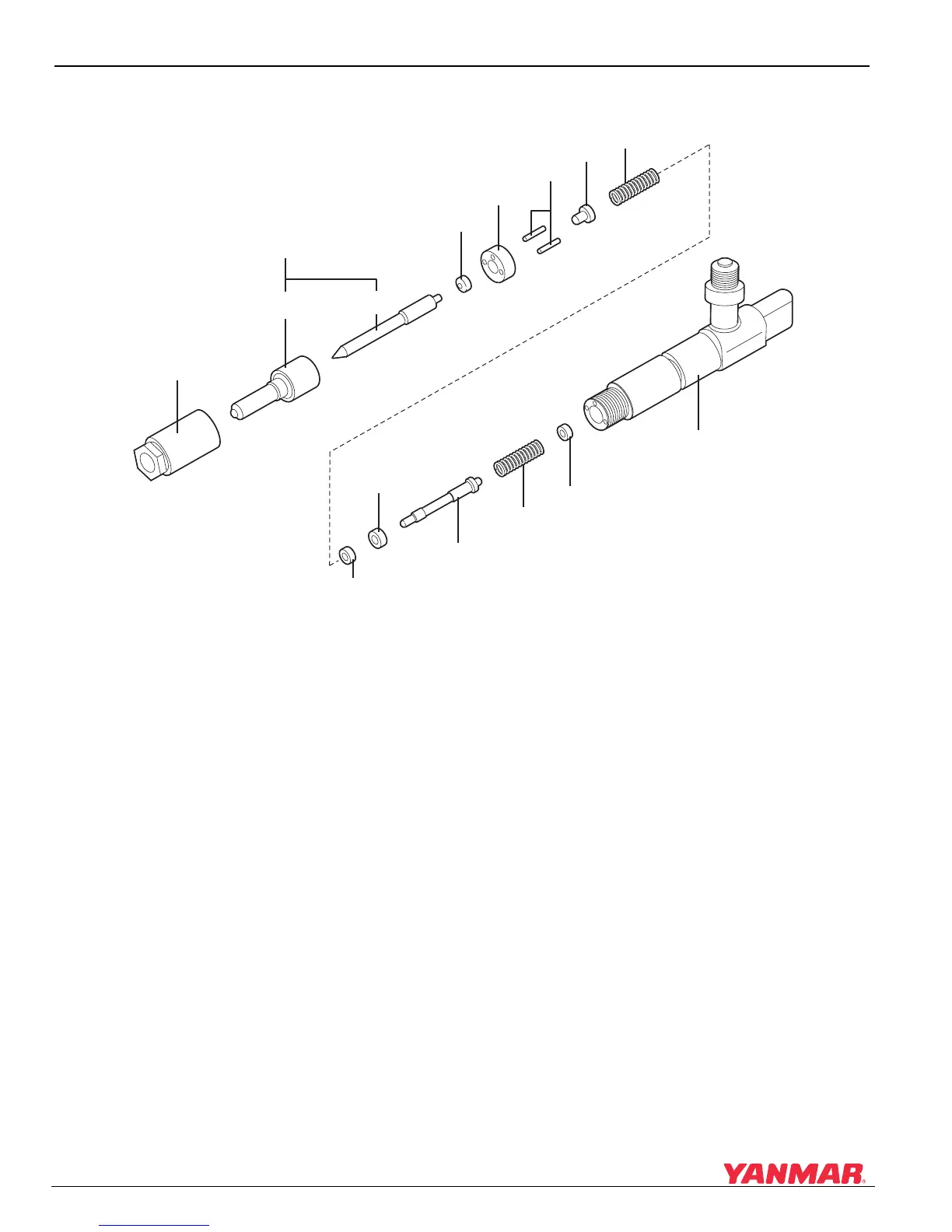

Fuel Injection Nozzle Parts
Figure 4-14
Figure 4-14
1 – Nozzle Holder Retaining Nut
2 – Nozzle Assembly
3 – Nozzle Body
4 – Needle Tip
5 – Adjusting Shim
6 – Tip Packing
7 – Straight Pins
8 – No. 2 Pressure Spring Seat
9 – No. 2 Pressure Spring
10 – Adjusting Shim
11 – No. 1 Pressure Spring Seat
12 – Pressure Pin
13 – No. 1 Pressure Spring
14 – Adjusting Shim
15 – Nozzle Holder Body
0006171
(10)
(11)
(12)
(13)
(14)
(15)
(3)
(2)
(5)
(6)
(7)
(8)
(9)
(1)
(4)
