YASKAWA A1000

2.1 Mechanical Installation
20 YASKAWA ELECTRIC TOEP C710616 50B YASKAWA AC Drive - A1000 6-Phase/12-Pulse Input Installation Guide
CIMR-A4T0515U, 0675U
Figure 2. 9

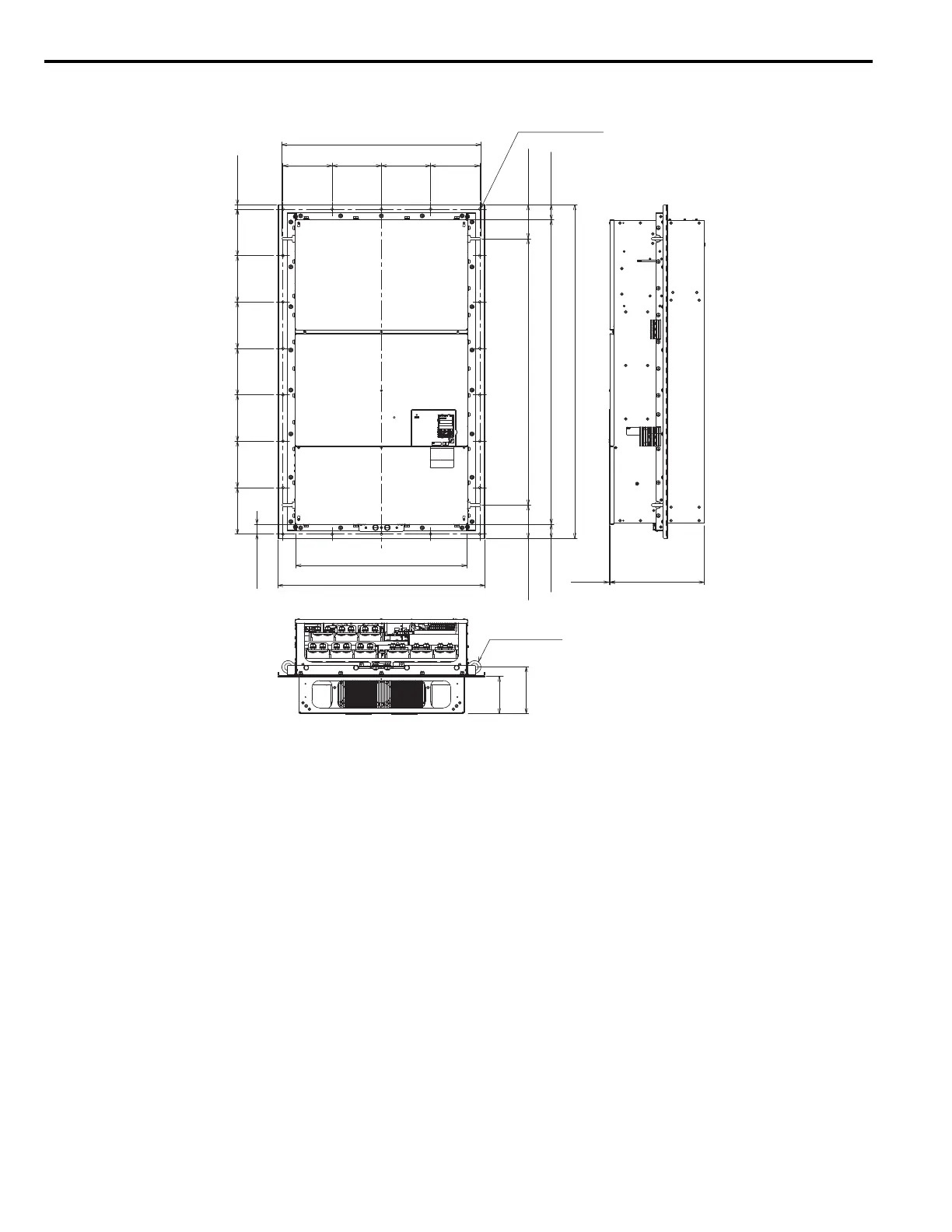

Figure 2.9 Dimensions (CIMR-A4T0515U, 0675U)
Eye Bolts
with M12 Screw
146.8
(5.78)
183
(7.20)
193 (7.60) 193 (7.60) 193 (7.60) 193 (7.60)
781.2 (30.76)
670 (26.38)
370 (14.57)
3.7
(0.12)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
17 (0.67)
39.1 (1.54)
1308 (51.50)
812 (31.97)
1193.2 (46.98) 1044.6 (41.13)
56.1 (2.21)
130.9 (5.15)
58.7 (2.31) 132.5 (5.22)
unit: mm (inch)
22-Mounting Holes
for M10 Screw
