YASKAWA A1000 Installation Guide

10 YASKAWA ELECTRIC TOEP C710616 50B YASKAWA AC Drive - A1000 6-Phase/12-Pulse Input Installation Guide
1.1 Model Number and Nameplate Check
1.1 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
• Verify receipt of the correct model by checking the information on the nameplate.
• If you have received the wrong model or the drive does not function properly, contact your supplier.
 Nameplate
Figure 1. 1

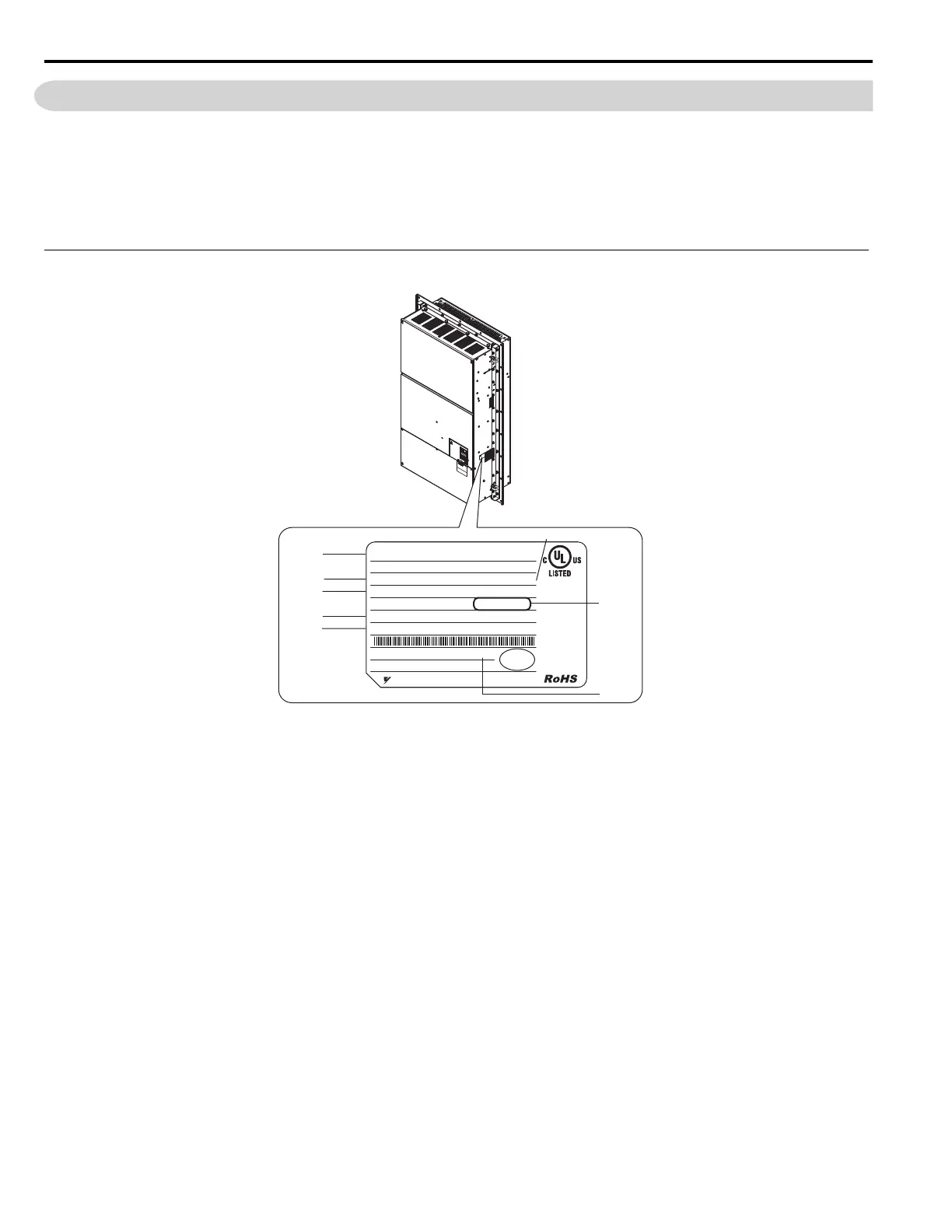

Figure 1.1 Nameplate Information Example
A – Normal duty amps / Heavy
duty amps
E–Lot number
B – Software version F – Output specifications
C – Enclosure type G – Input specifications
D – Serial number H – AC drive model
PRG : 1010
IND.CONT.EQ.
7J48 B
CIMR-AU4T0675UAA REV:A
YASKAWA ELECTRIC CORPORATION Assembled in USA
:
:
AC6PH(12P) 380-480V 50/60Hz 603A/511A
: AC3PH 0-480V 0-400Hz 675A/605A
: 220kg
:
:
: E131457 IP00
PASS
MODEL
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
H
G
F
E
D
B
C
A
C/C CIMR-AU4T0675UAA

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
