YASKAWA A1000 Installation Guide

2.1 Mechanical Installation
YASKAWA ELECTRIC TOEP C710616 50B YASKAWA AC Drive - A1000 6-Phase/12-Pulse Input Installation Guide 15
 Removing the Shipping Package Attachments
Remove the shipping package attachments before installation.
Note: The number of screws varies in accordance with the drive model.

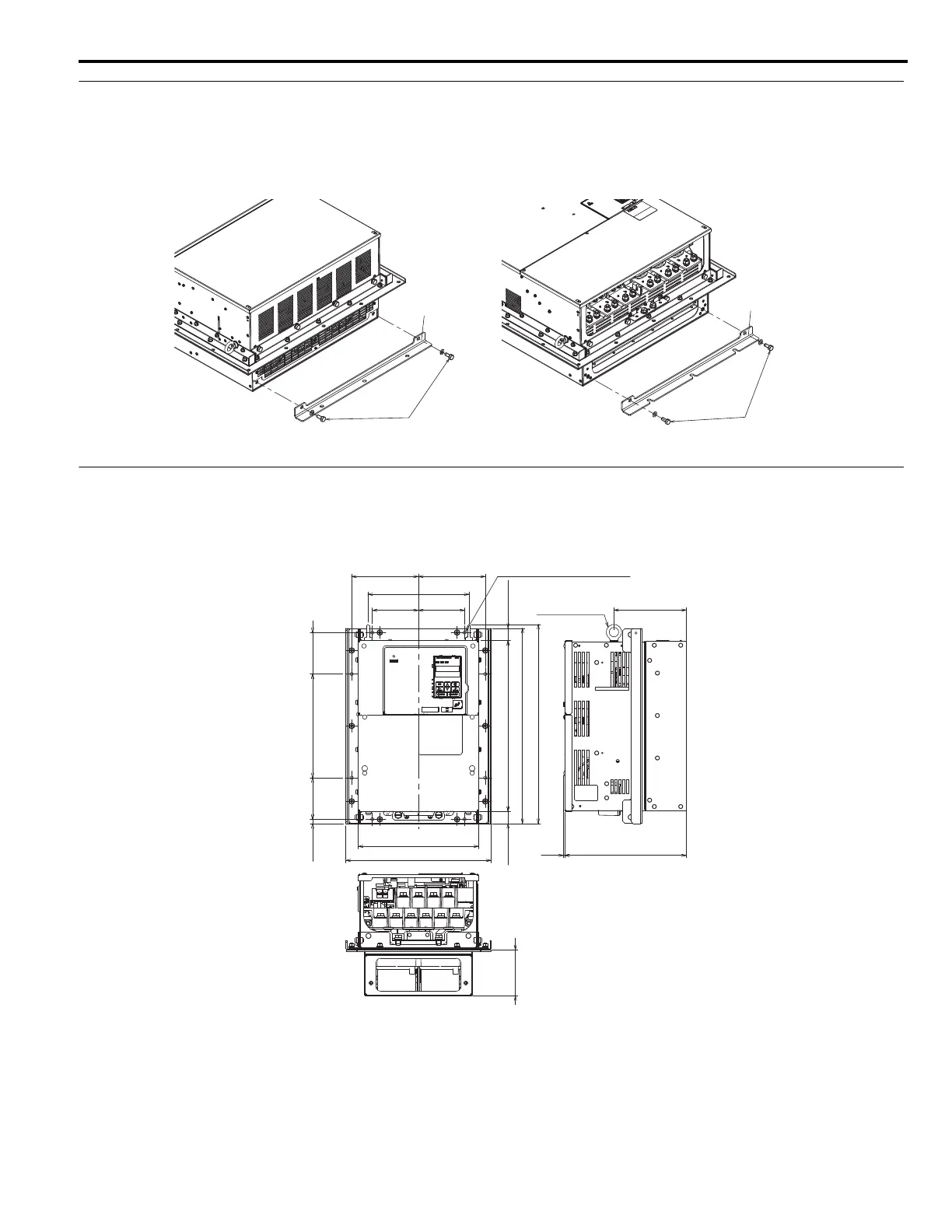

Figure 2.1
Figure 2.1 Removing the Shipping Package Attachments (example: CIMR-A4T0675U)
 Dimensions
 Flange Type Enclosure
CIMR-A4T0058U
Figure 2.2
Figure 2.2 Dimensions (CIMR-A4T0058U)
Screws
Shipping Package
Attachmet
Shipping Package
Attachmet
Top Side
Screws
Bottom Side
unit: mm (inch)
Eye Bolts
with M8 Screw
8-Mounting Holes for M6 Screw
214 (8.43)
153.6 (6.05)
3
(0.12)
258 (10.16)
97 (3.82)
255.2 (10.05)
308 (12.13)
97.85
(3.85)
97.85
(3.85)
9 (0.35) 88 (3.46)
220 (8.66)
88 (3.46)
25.9 (1.02)
362.2 (14.26)
25.9 (1.02)
414 (16.30)
422.2 (16.62)
141.65 (5.58) 141.65 (5.58)

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
