2.1 Mechanical Installation
16 YASKAWA ELECTRIC TOEP C710616 50B YASKAWA AC Drive - A1000 6-Phase/12-Pulse Input Installation Guide
CIMR-A4T0072U
Figure 2. 3

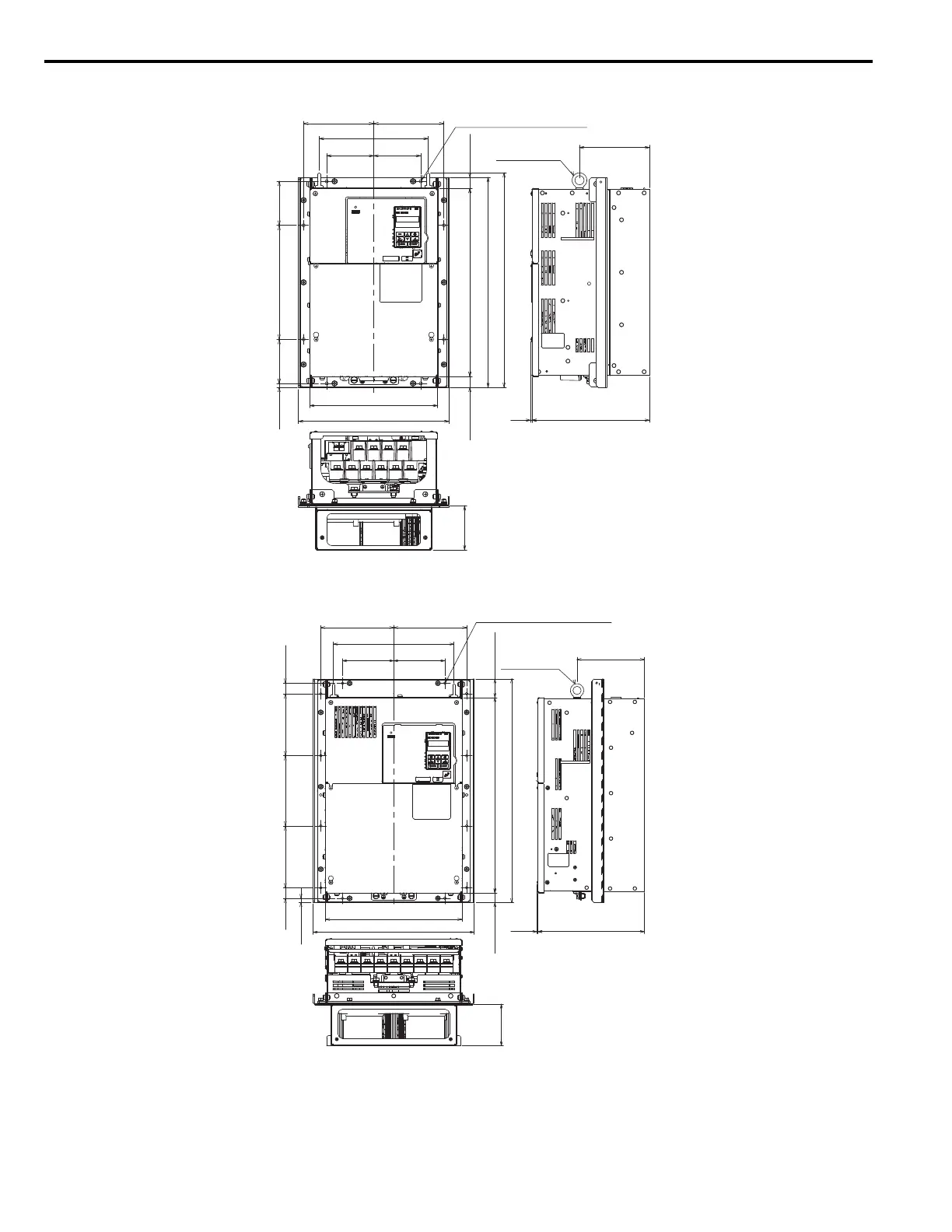

Figure 2.3 Dimensions (CIMR-A4T0072U)
CIMR-A4T0088U, 0103U
Figure 2. 4
Figure 2.4 Dimensions (CIMR-A4T0088U, 0103U)
Eye Bolts
with M8 Screw
8-Mounting Holes for M6 Screw
97 (3.82)
258 (10.16)
3
(0.12)
153.6 (6.05)
8.5 (0.33) 96.5 (3.80) 250 (9.84) 96.5 (3.80)
470.2 (18.51) 412.2 (16.23)
23.9 (0.94)
23.9 (0.94)
460 (18.11)
280.2 (11.03)
330 (12.99)
103 (4.06) 103 (4.06)
153.8 (6.06) 153.8 (6.06)
239 (9.41)
unit: mm (inch)
unit: mm (inch)
12-Mounting Holes for M6 Screw
Eye Bolts
with M8 Screw
163.3 (6.43)
3
(0.12)
292 (11.50)
258 (10.16)
150 (5.91) 170 (6.69) 150 (5.91)
330.2 (13.00)
390 (15.35)
473.2 (18.63)
542 (21.34)
101 (3.98)
25.5 (1.00)
25.5 (1.00)
45.1 (1.78)
10.5 (0.41)
23.7 (0.93)
124 (4.88) 124 (4.88)
176.75 (6.96) 176.75 (6.96)
