3.3 Main Circuit Terminal Configuration
3.3 Main Circuit Terminal Configuration

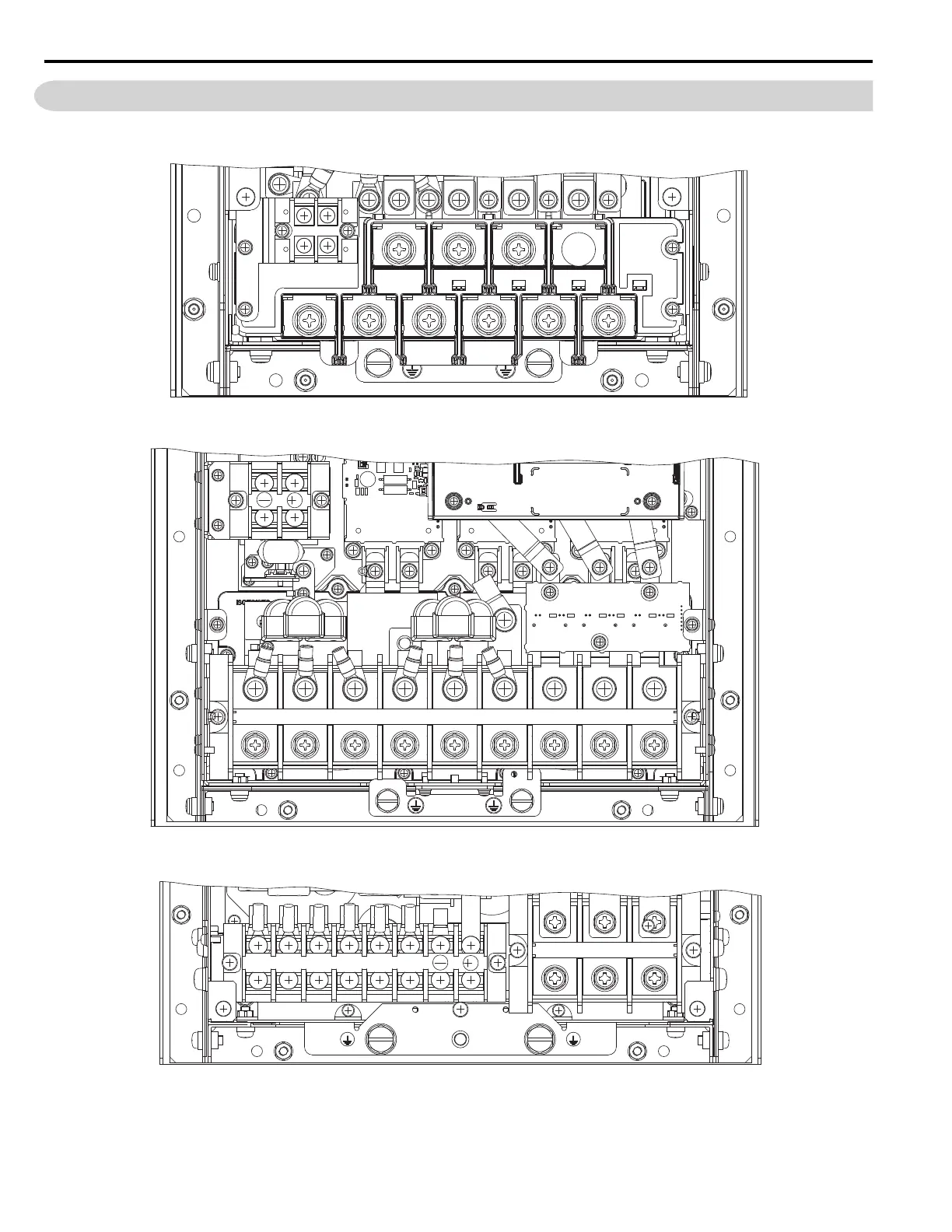

Figure 3.6 to Figure 3.12 show the different main circuit terminal arrangements for the drive capacities.
Figure 3. 5
Figure 3.6 Main Circuit Terminal Configuration (CIMR-A4T0058, 0072)
Figure 3. 6
Figure 3.7 Main Circuit Terminal Configuration (CIMR-A4T0088, 0103)
Figure 3. 7
Figure 3.8 Main Circuit Terminal Configuration (CIMR-A4T0139, 0165)
S1/L21
R1/L11
T1/L31
T/L3
U/T1
R/L1
S/L2
V/T2
W/T3
B1 B2
3
R/L1 S/L2 T/L3 R1/L11 S1/L21 T1/L31 U/T1 V/T2 W/T3
R/L1
S/L2
T/L3
R1/L11
U/T1 W/T3V/T2
S1/L21
T1/L31
3
