2.1 Mechanical Installation
22 YASKAWA ELECTRIC TOEP C710616 50B YASKAWA AC Drive - A1000 6-Phase/12-Pulse Input Installation Guide
CIMR-A4T0088U, 0103U
Figure 2. 12

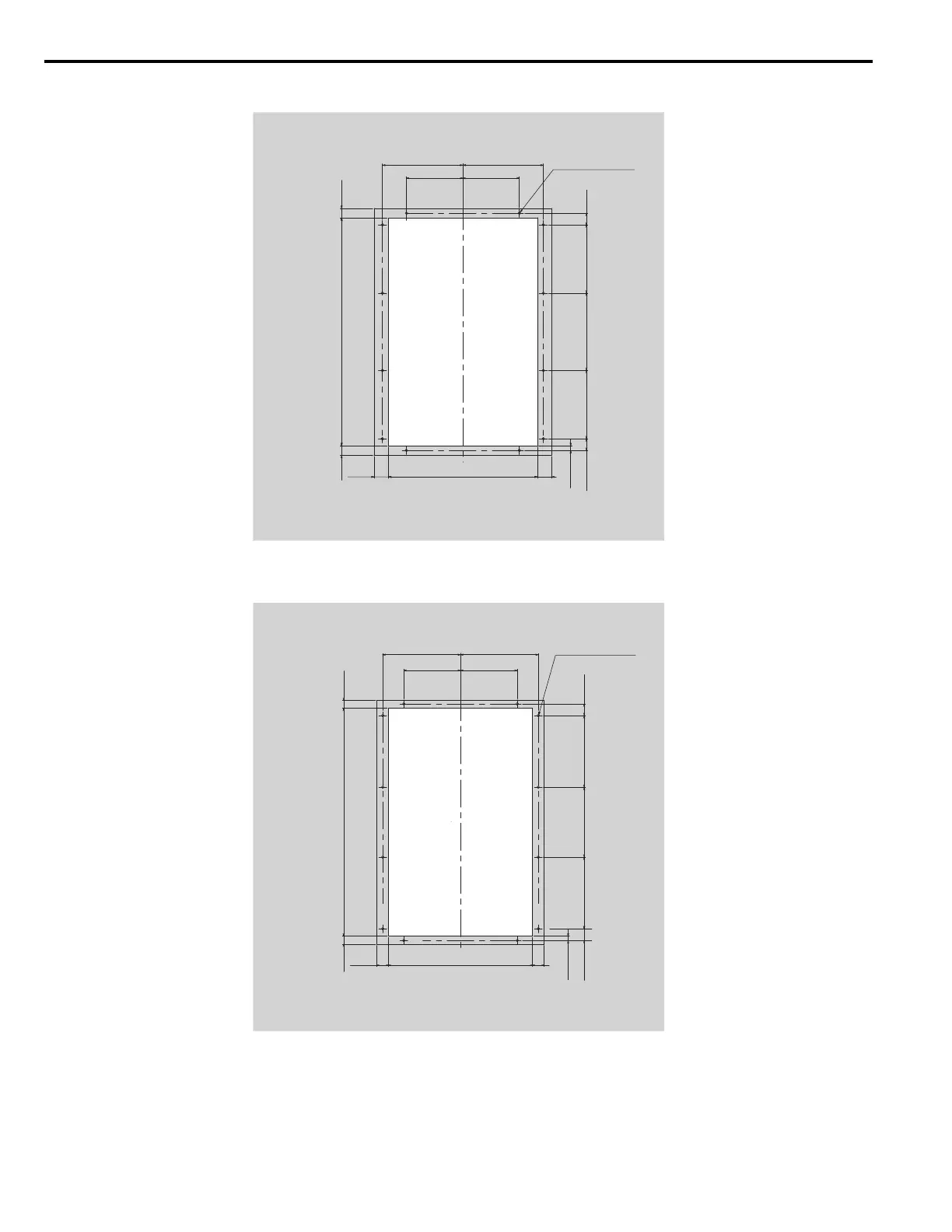

Figure 2.12 Panel Cut-Out Dimensions (CIMR-A4T0088U, 0103U)
CIMR-A4T0139U, 0165U
Figure 2. 13
Figure 2.13 Panel Cut-Out Dimensions (CIMR-A4T0139U, 0165U)
unit: mm (inch)
124 (4.88)
124 (4.88)
176.75 (6.96) 176.75 (6.96)
25.5 (1.00)
150 (5.91)
170 (6.69)
150 (5.91)
20.5 (0.81)
501 (19.72)
20.5
(0.81)
31.5
(1.24)
31.5
(1.24)
327 (12.87)
12-M6 Screw Holes
25.5 (1.00)
10 (0.39)
unit: mm (inch)
179.1 (7.05)
179.1 (7.05)
130.5 (5.14)130.5 (5.14)
332 (13.07)
26.8
(1.06)
26.8
(1.06)
18.5 (0.73)
525 (20.67)
18.5
(0.73)
27 (1.06)
165 (6.50)161 (6.34)165 (6.50)
12-M6 Screw Holes
27 (1.06)
10 (0.39)

YASKAWA A1000 Specifications

General

Type	AC Drive
Series	A1000
Input Voltage	200-240V, 380-480V
Frequency Range	0-400 Hz
Horsepower Range	0.5 to 1000 HP
Power Range	0.4 to 630 kW
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Braking	Dynamic Braking
Communication	Modbus
Safety	Safe Torque Off (STO)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to +50°C
Storage Temperature	-20 to 60°C
Humidity	5 to 95% RH (non-condensing)
Enclosure	IP20
