2.1 Mechanical Installation
24 YASKAWA ELECTRIC TOEP C710616 50B YASKAWA AC Drive - A1000 6-Phase/12-Pulse Input Installation Guide
CIMR-A4T0414U
Figure 2. 16

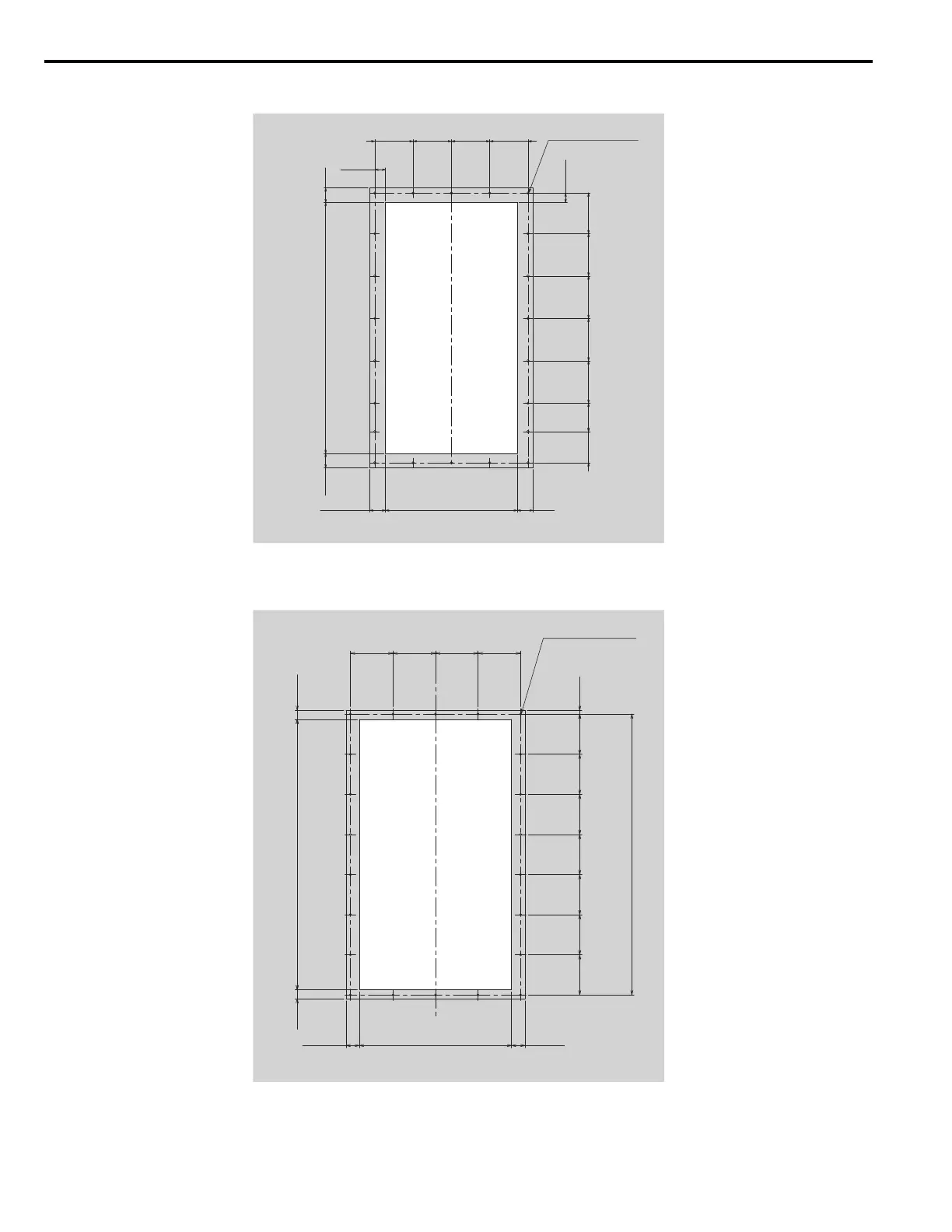

Figure 2.16 Panel Cut-Out Dimensions (CIMR-A4T0414U)
CIMR-A4T0515U, 0675U
Figure 2. 17
Figure 2.17 Panel Cut-Out Dimensions (CIMR-A4T0515U, 0675U)
22-M10 Screw Holes
520 (20.47)
62.5 (2.46) 62.5 (2.46)
991 (39.02)
57.2 (2.25)
57.2 (2.25)
37.2 (1.46)
160 (6.30)
167.5 (6.59)
167.5 (6.59)
167.5 (6.59)
167.5 (6.59)
112 (4.41)
123.4 (4.86)
42.5
(1.67)
151.25
(5.95)
151.25
(5.95)
151.25
(5.95)
151.25
(5.95)
unit: mm (inch)
22-M10 Screw Holes
690 (27.17)61 (2.40)
1227 (48.31) 1274 (50.16)
40.5 (1.59)
40.5 (1.59)
193
(7.60)
193
(7.60)
193
(7.60)
193
(7.60)
17 (0.67)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
182 (7.17)
61 (2.40)
unit: mm (inch)
