4.5 Start-up Procedures
134 YASKAWA SIEPC71061753C GA500 Technical Manual

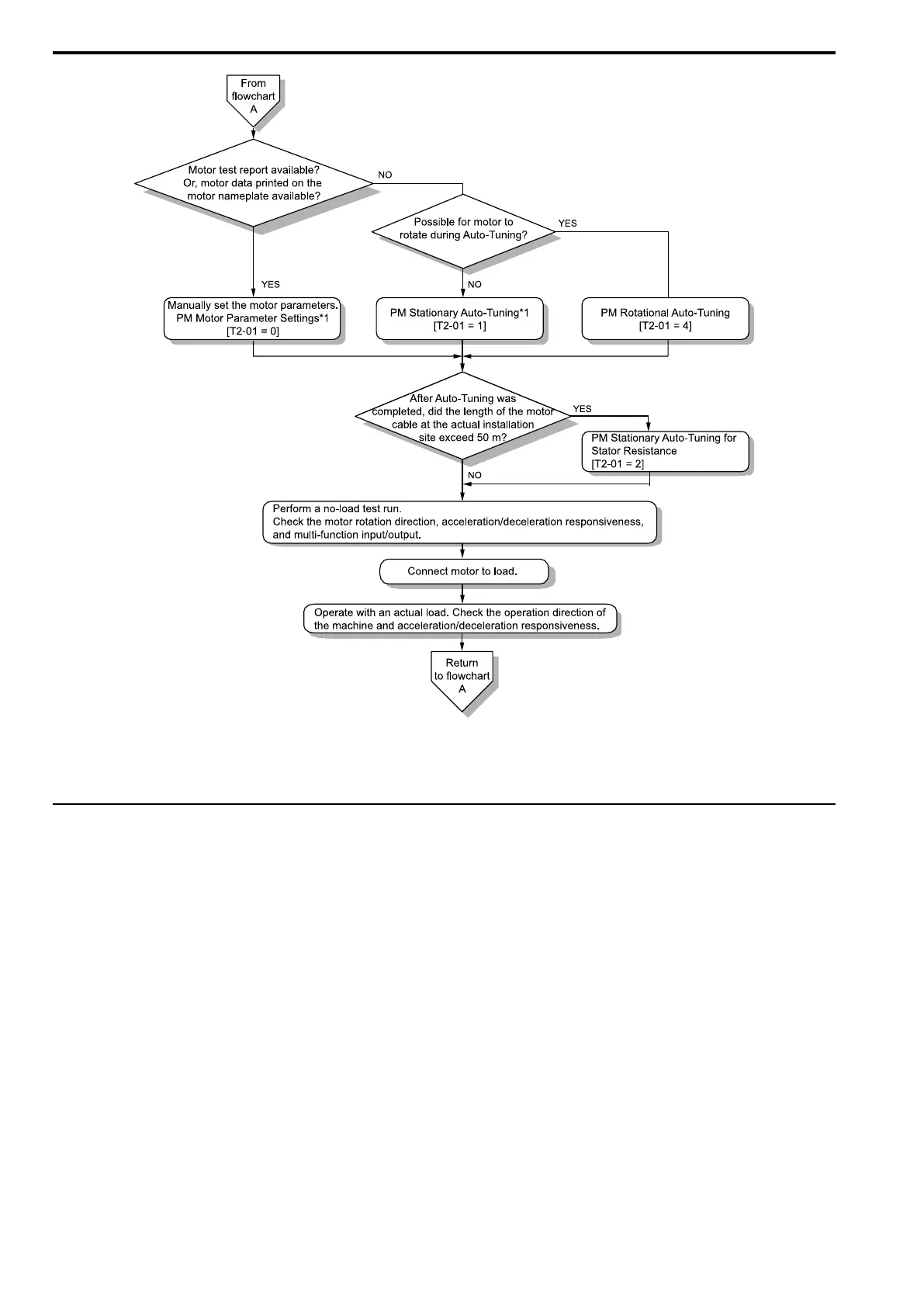

Figure 4.14 PM Motor Auto-Tuning and Test Run Procedure
*1 For Yaskawa PM motors (SMRD, SMRA-series, or SSR1-series), set E5-01 (Motor Code). For PM motors from a different
manufacturer, set E5-01 = FFFF.
◆ Subchart A-3: EZ Open Loop Vector Control Test Run Procedure
Subchart A-3 gives the setup procedure to run a PM motor in EZ Open Loop Vector Control.
To Next Page
