10.8 Drive Exterior and Mounting Dimensions
344 YASKAWA SIEPC71061753C GA500 Technical Manual
10.8 Drive Exterior and Mounting Dimensions
◆ Drive Models and Exterior and Mounting Dimensions
Table 10.19 Single-Phase 200 V Class
Model IP20/UL Open Type Finless-Type Drive
B001 - B004 344 349
B006 - B018
*1
345 349
*1 There is not a finless-type B018 model.
Table 10.20 Three-Phase 200 V Class
Model IP20/UL Open Type Finless-Type Drive
2001 - 2006 344 349
2008 - 2021 345 349
2030 - 2082
*1
347 351
*1 There is not a finless-type 2082 model.
Table 10.21 Three-Phase 400 V Class
Model IP20/UL Open Type Finless-Type Drive
4001 - 4012 345 349
4018 - 4060
*1
347 351
*1 There are not finless-type 4044 or 4060 models.
◆ IP20/UL Open Type
■ B001 to B004, 2001 to 2006

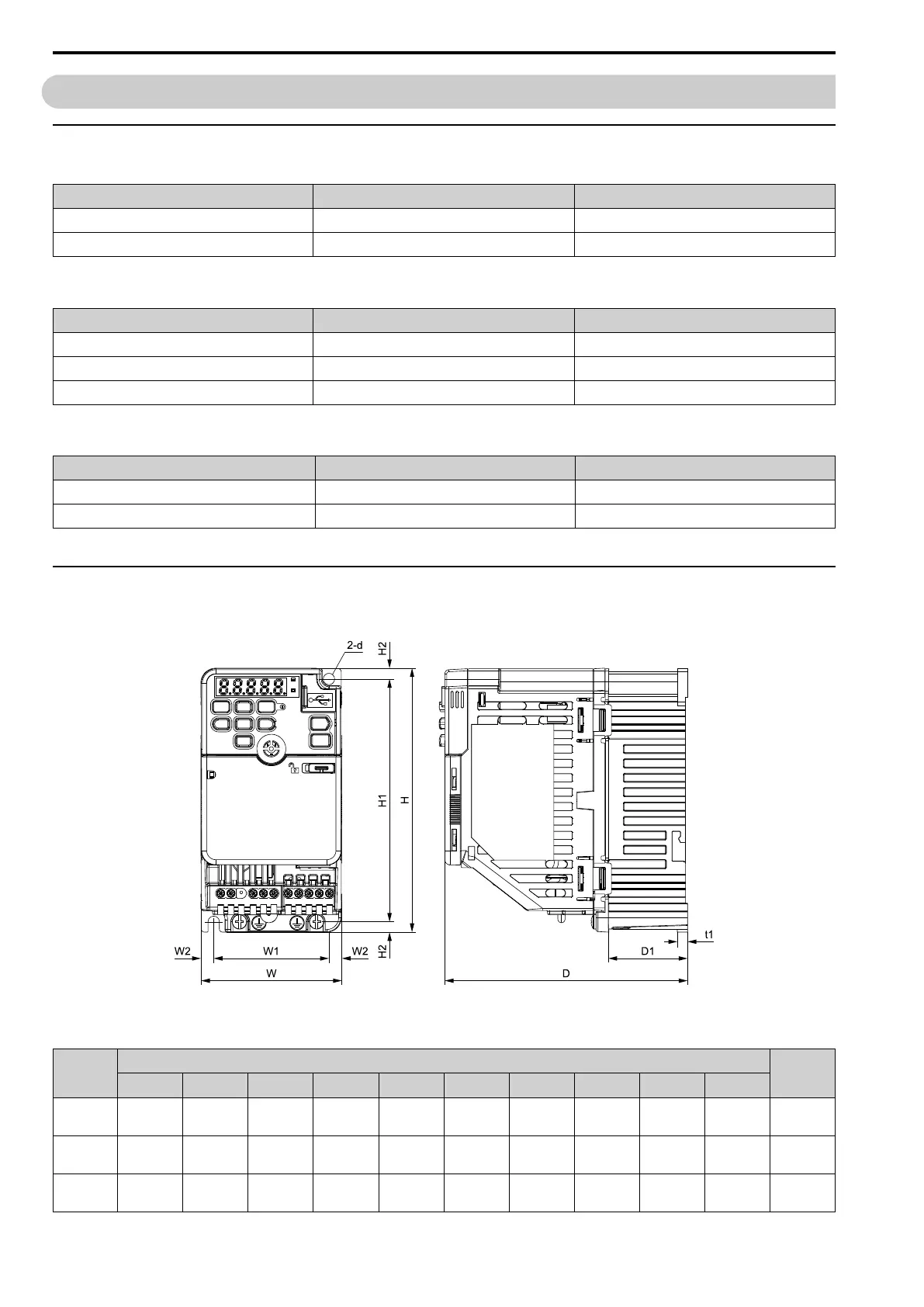

Figure 10.2 Exterior and Mounting Dimensions
Table 10.22 Single-Phase 200 V Class (IP20/UL Open Type, without Built-in EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D W1 W2 H1 H2 D1 t1
d
B001A
68
(2.68)
128
(5.04)
76
(2.99)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.5
(1.1)
B002A
68
(2.68)
128
(5.04)
76
(2.99)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
6.5
(0.26)
3
(0.12)
M5
0.5
(1.1)
B004A
68
(2.68)
128
(5.04)
118
(4.65)
56
(2.20)
6
(0.24)
118
(4.65)
5
(0.20)
38.5
(1.52)
5
(0.20)
M5
0.8
(1.8)
