2.3 Installation Position and Clearances
34 YASKAWA SIEPC71061753C GA500 Technical Manual
Table 2.1 Specifications of External Cooling Fan for Horizontal (Floor) Installation
Model
Airflow
(m
3
/min)
Static Pressure
(Pa)
B001 - B004
2001 - 2006
0.18 minimum 63.7 minimum
B006 - B012
2008 - 2021
4001 - 4012
1.11 minimum 244 minimum
B018
2030 - 2082
4018 - 4060
External cooling fan is not necessary
◆ Install Drives Side-by-Side
When you install drives side-by-side, set to L8-35 = 1 [Installation Method Selection = Side-by-Side Mounting].
Refer to Derating Depending on Ambient Temperature on page 342 and set derating depending on ambient
temperature.
A - 50 mm (1.97 in) minimum
B - 30 mm (1.18 in) minimum on each side
C - 100 mm (3.94 in) minimum above and below

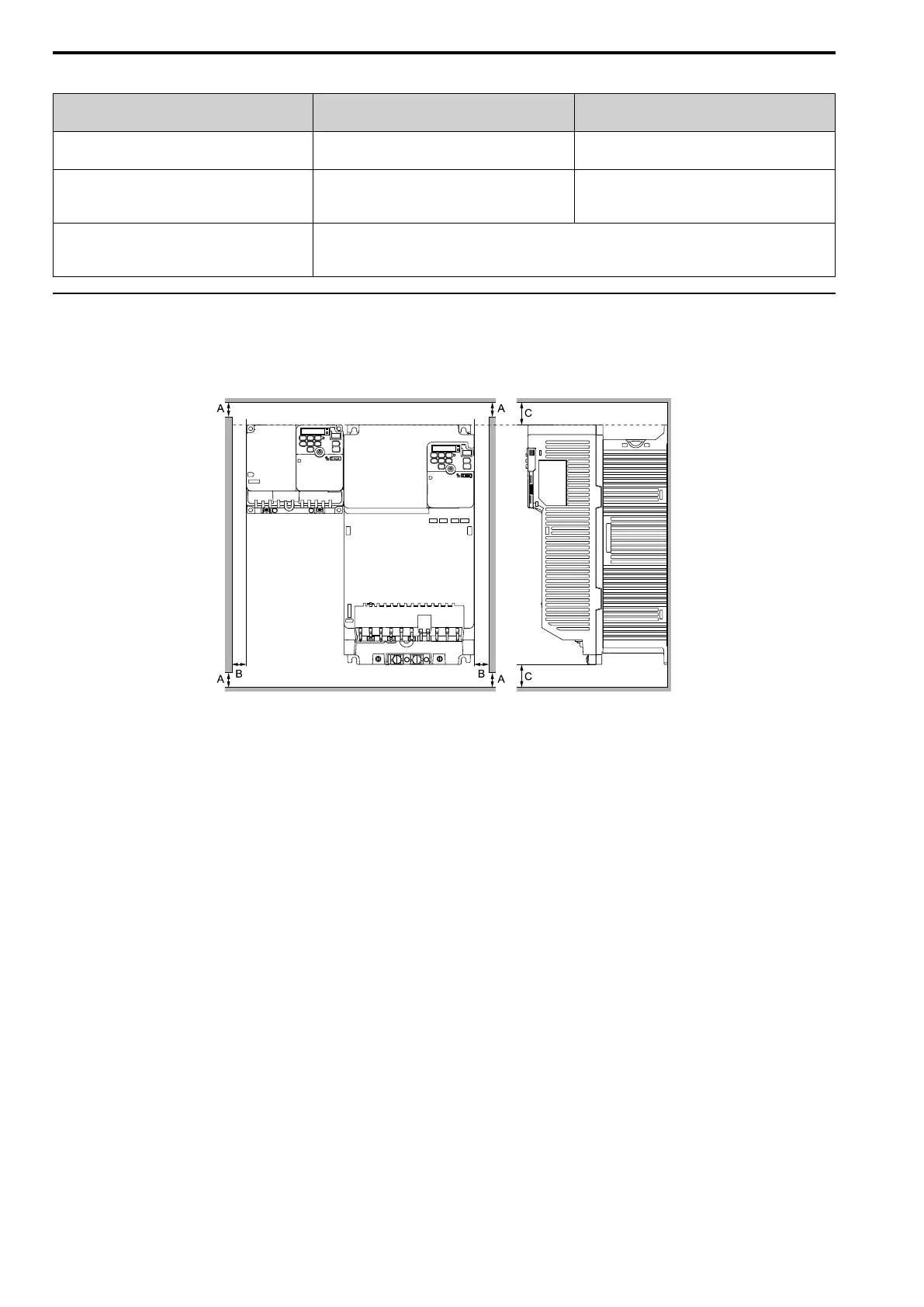

Figure 2.6 Installation Clearances for More than One Drive (Side-by-Side)
Note:
Align the tops of drives that have different dimensions to help when you replace cooling fans.
