Parameter Details
12
12.8 H: Terminal Function Selection
YASKAWA SIEPC71061753C GA500 Technical Manual 655
■ H2-68: Terminal P2 Minimum ON Time
No.
(Hex.)
Name Description
Default
(Range)
H2-68
(1B4E)
Expert
Terminal P2 Minimum ON
Time
Sets the minimum ON time used to output the logical calculation results from terminal P2-C2.
0.1 s
(0.0 - 25.0 s)
◆ MFDO Setting Values
Selects the function configured to MFDO.
■ 0: During Run
Setting Value Function Description
0 During Run
The terminal activates when you input a Run command and when the drive is outputting voltage.

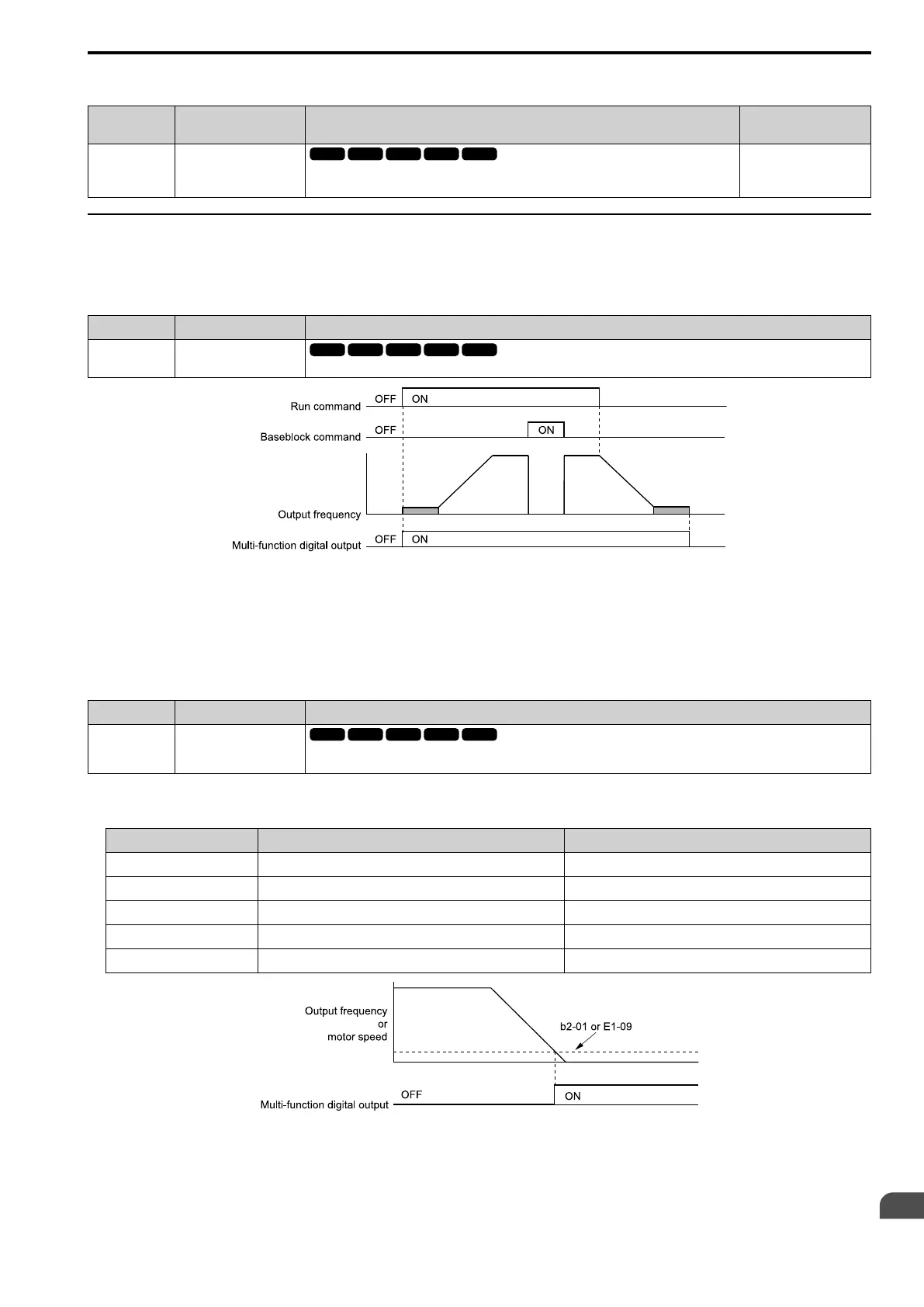

Figure 12.77 Drive Running Time Chart
ON : Drive is running
The drive is receiving a Run command or outputting voltage.
OFF : Drive is stopping
■ 1: Zero Speed
Setting Value Function Description
1 Zero Speed
The terminal activates when the output frequency is less than E1-09 [Minimum Output Frequency] or b2-01 [DC Injection/Zero
SpeedThreshold].
Note:
Parameter A1-02 [Control Method Selection] selects which parameter is the reference.
A1-02 Setting Control Method Selection Parameter Used as the Reference
0 V/f E1-09
2 OLV b2-01
5 OLV/PM E1-09
6 AOLV/PM E1-09
8 EZOLV E1-09
Figure 12.78 Zero Speed Time Chart
ON : Output frequency < value of E1-09 or b2-01.
OFF : Output frequency ≥ value of E1-09 or b2-01.
