10.8 Drive Exterior and Mounting Dimensions
YASKAWA SIEPC71061753C GA500 Technical Manual 351
■ 2030 - 2070, 4018 - 4038

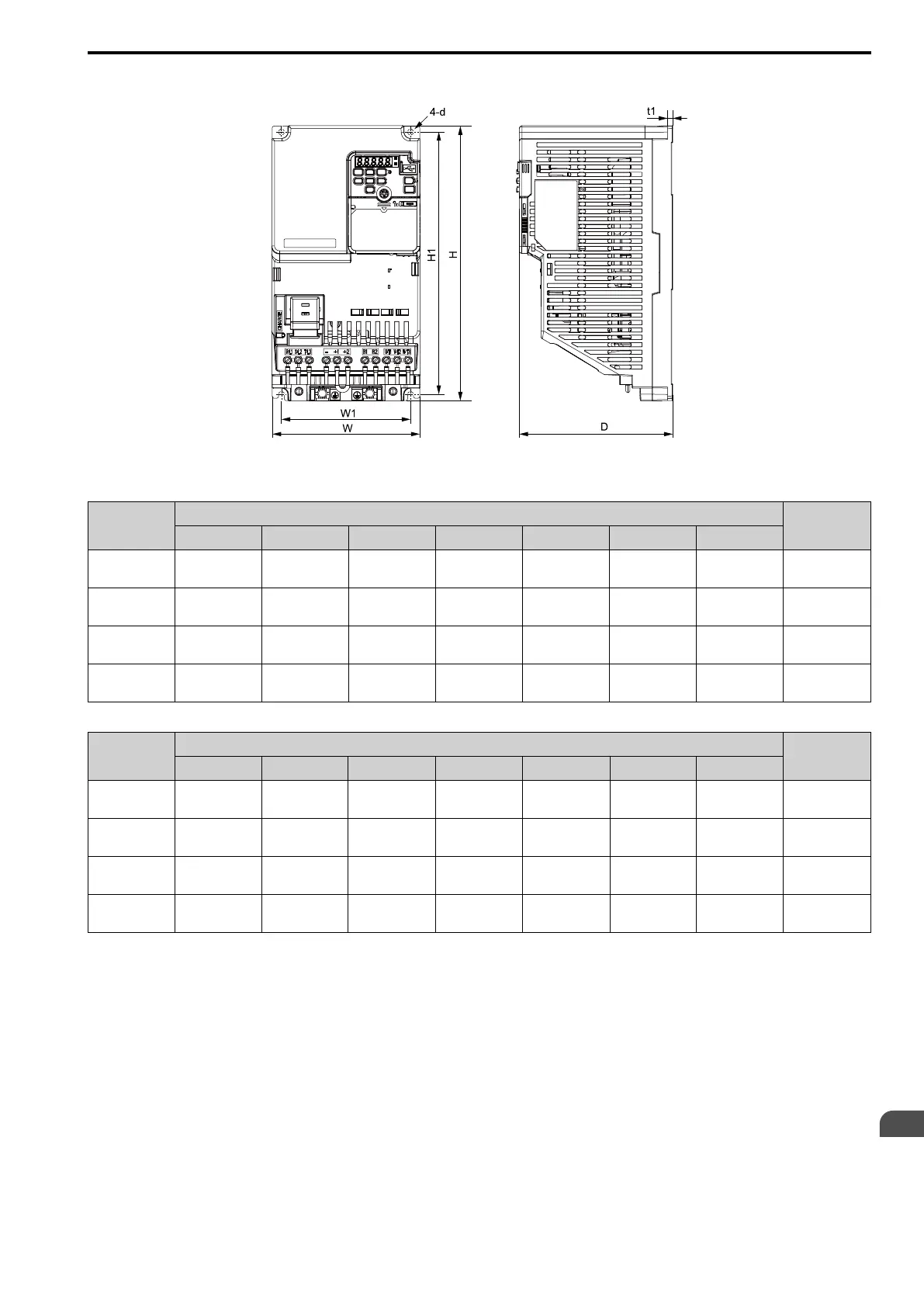

Figure 10.7 Exterior and Mounting Dimensions
Table 10.41 Three-Phase 200 V Class (Finless-Type Drive)
Model
Dimensions mm (in)
Est. Weight
kg (lb)
W H D W1 H1 t1 d
2030
140
(5.51)
260
(10.24)
145
(5.71)
122
(4.80)
248
(9.76)
5
(0.20)
M5
2.9
(6.39)
2042
140
(5.51)
260
(10.24)
145
(5.71)
122
(4.80)
248
(9.76)
5
(0.20)
M5
3.1
(6.83)
2056
180
(7.09)
300
(11.81)
147
(5.79)
160
(6.30)
284
(11.18)
5
(0.20)
M5
4.5
(9.92)
2070
220
(8.66)
350
(13.78)
152
(5.98)
192
(7.56)
336
(13.23)
5
(0.20)
M6
6.0
(13.23)
Table 10.42 Three-Phase 400 V Class (Finless-Type Drive)
Model
Dimensions mm (in)
Est. Weight
kg (lb)
W H D W1 H1 t1 d
4018
140
(5.51)
260
(10.24)
145
(5.71)
122
(4.80)
248
(9.76)
5
(0.20)
M5
2.6
(5.73)
4023
140
(5.51)
260
(10.24)
145
(5.71)
122
(4.80)
248
(9.76)
5
(0.20)
M5
2.8
(6.17)
4031
180
(7.09)
300
(11.81)
147
(5.79)
160
(6.30)
284
(11.18)
5
(0.20)
M5
4.1
(9.04)
4038
180
(7.09)
300
(11.81)
147
(5.79)
160
(6.30)
284
(11.18)
5
(0.20)
M5
4.3
(9.48)
