Standards Compliance
5
5.2 European Standards
YASKAWA SIEPC71061753C GA500 Technical Manual 185

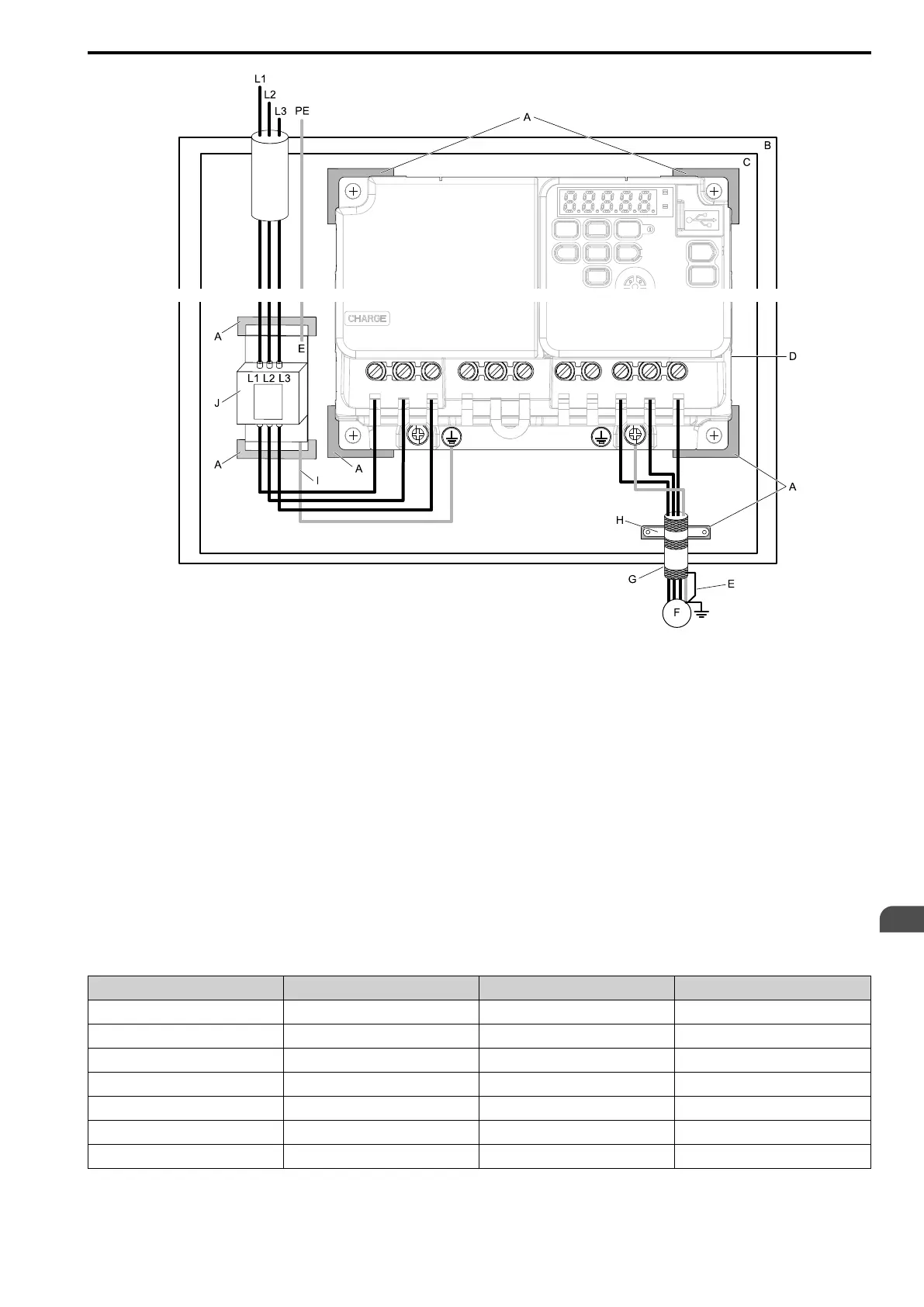

A - Grounding surface (Remove any paint or
sealant.)
B - Enclosure panel
C - Metal plate
D - Drive
E - Ground the shield.
F - Motor
G - Motor cable (Braided shield cable: 10 m (32.8 ft)
maximum)
H - Cable clamp
I - Grounding wire
J - EMC noise filter
Figure 5.13 EMC Noise Filter and Drive Installation Procedure
5. Connect the DC reactor to decrease harmonic distortion.
Refer to DC Reactors on page 186 to select a DC reactor.
Note:
• To comply with EN 61000-3-2 on drive models 2001 to 2006, 4001 to 4004, install a DC reactor.
Ground Wiring
WARNING! Electrical Shock Hazard. Do not remove covers or touch circuit boards while the drive is energized. If you touch the
internal components of an energized drive, it can cause serious injury or death.
External EMC Noise Filter Selection
Table 5.12 External EMC Noise Filter (BxxxA)
Drive model EMC Noise Filter Model Quantity Manufacturer
B001 FS23638-10-07 1 Schaffner
B002 FS23638-10-07 1 Schaffner
B004 FS23638-10-07 1 Schaffner
B006 FS23638-20-07 1 Schaffner
B010 FS23638-20-07 1 Schaffner
B012 FS23638-30-07 1 Schaffner
B018 FS23638-40-07 1 Schaffner
