3.3 Main Circuit Wiring
66 YASKAWA SIEPC71061753C GA500 Technical Manual
Model
Figure
No internal EMC filter Built-in EMC Filter
2030, 2042, 4018, 4023 Figure 3.16 Figure 3.17
2056, 4031, 4038 Figure 3.18 Figure 3.19
2070, 2082 Figure 3.20 Figure 3.21
4044, 4060 Figure 3.22 Figure 3.23

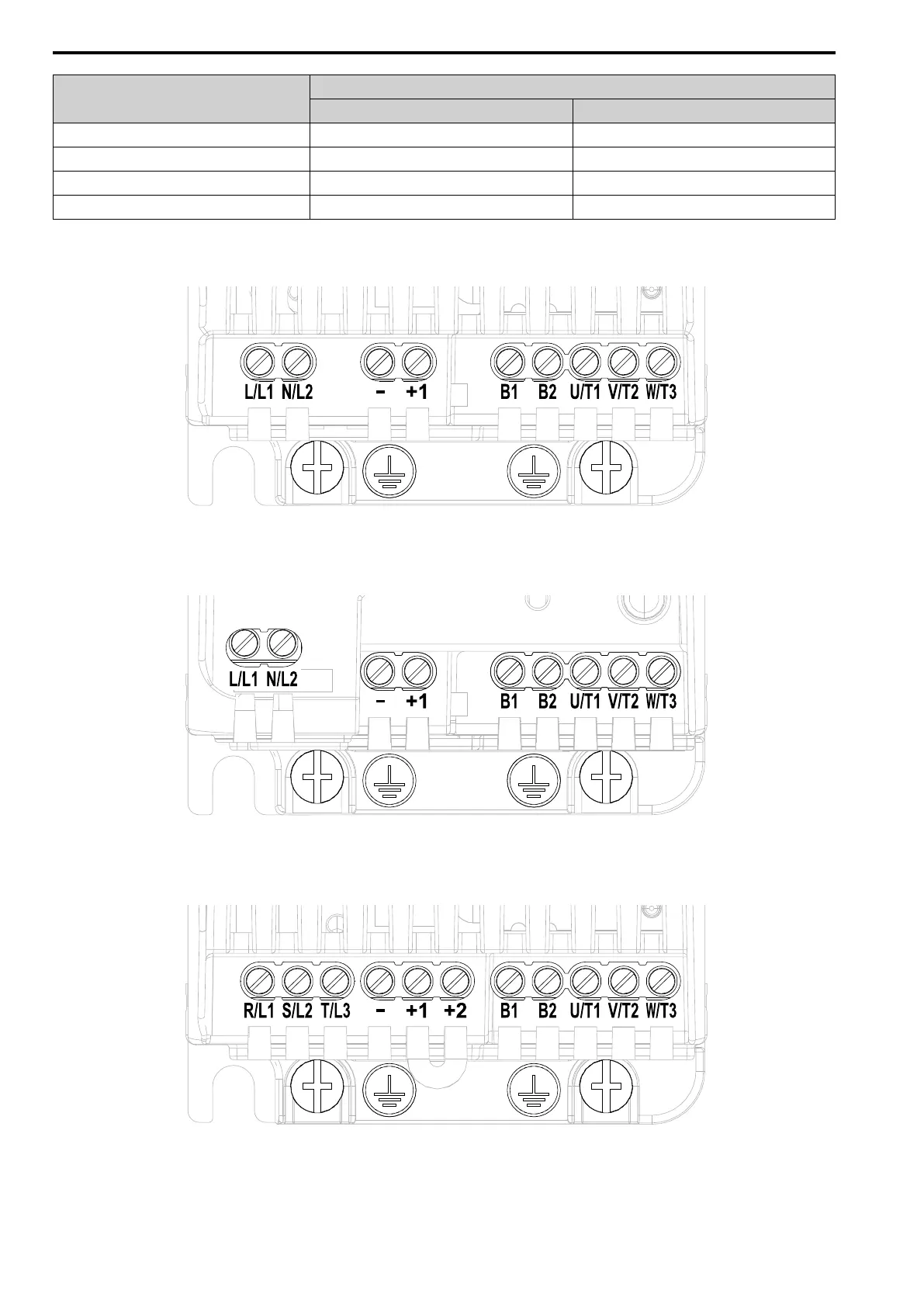

■ Configuration of Main Circuit Terminal Block
Figure 3.3 Configuration of Main Circuit Terminal Block (Single-Phase, Without a Built-in EMC Filter)
Figure 3.4 Configuration of Main Circuit Terminal Block (Single-Phase, With a Built-in EMC Filter)
Figure 3.5 Configuration of Main Circuit Terminal Block (Three-Phase, Without a Built-in EMC Filter)
