3.4 Main Circuit Terminal Block Wiring Procedure
88 YASKAWA SIEPC71061753C GA500 Technical Manual
WARNING! Fire Hazard. Remove the insulation from the connection wires to the wire stripping lengths shown in the
manual. Make sure that all of the wire strands are in the connection. If wire stripping length is too short, it can pinch
the covering into the terminal block. If wire stripping length is too long, it can close the circuit. Incorrect stripping
lengths can cause serious injury or death from fire.

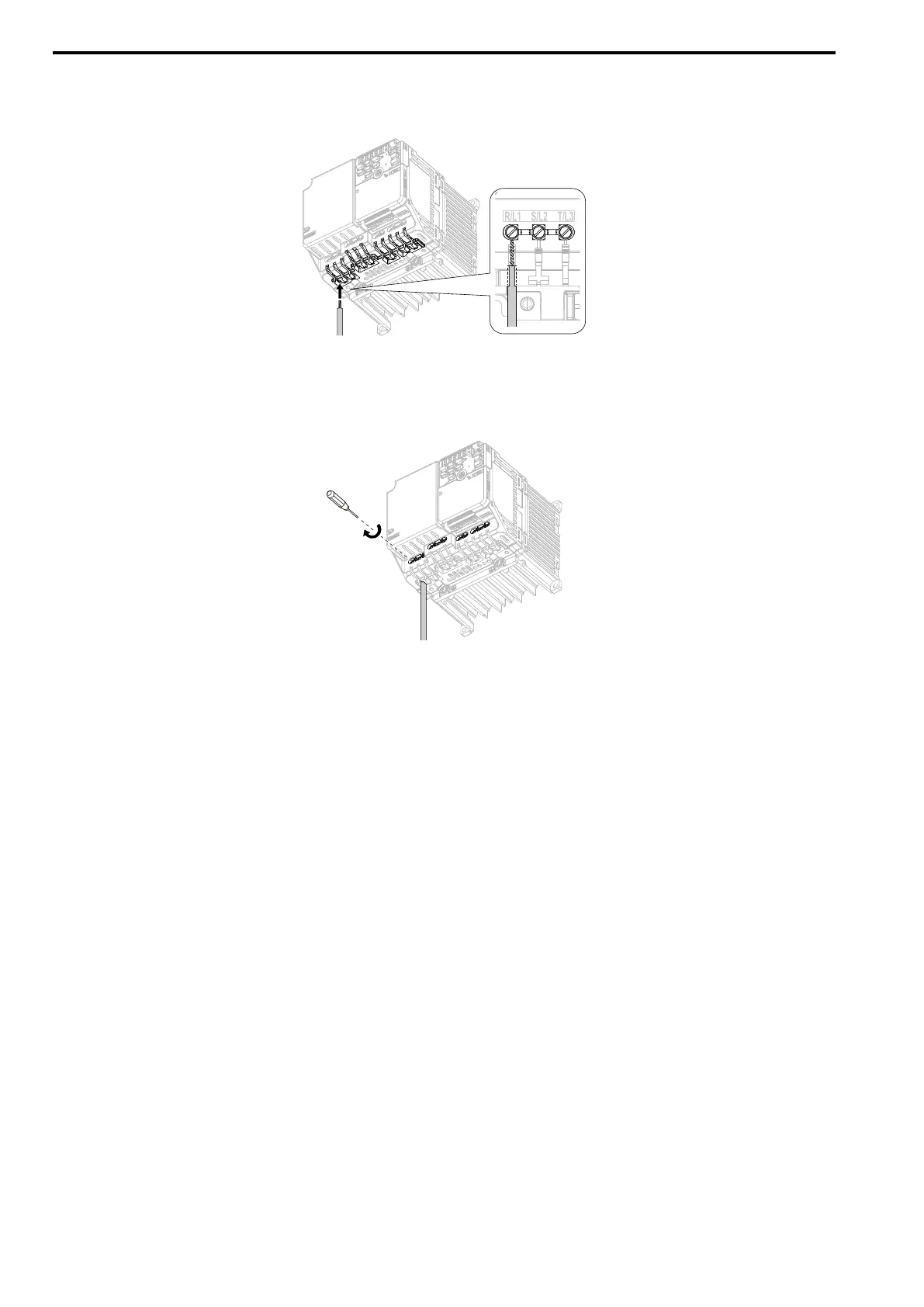

Figure 3.35 Install the Electrical Wire
Note:
There is a jumper between terminals +1 and +2. Remove the jumper, then wire to terminals +1 and +2.
2. Tighten the screws to the specified torque.
Figure 3.36 Tighten Terminal Block Screws
