External Pump Fault (or Alarm) N.C. Always Detected
Pump Fault
Digital Input
(H1-0☐ = 2☐)
EF☐ Pump
Fault or Alarm
EF☐ Delay Time
EF☐ Delay
Time
H1-2☐
H1-2☐
Closed
Open

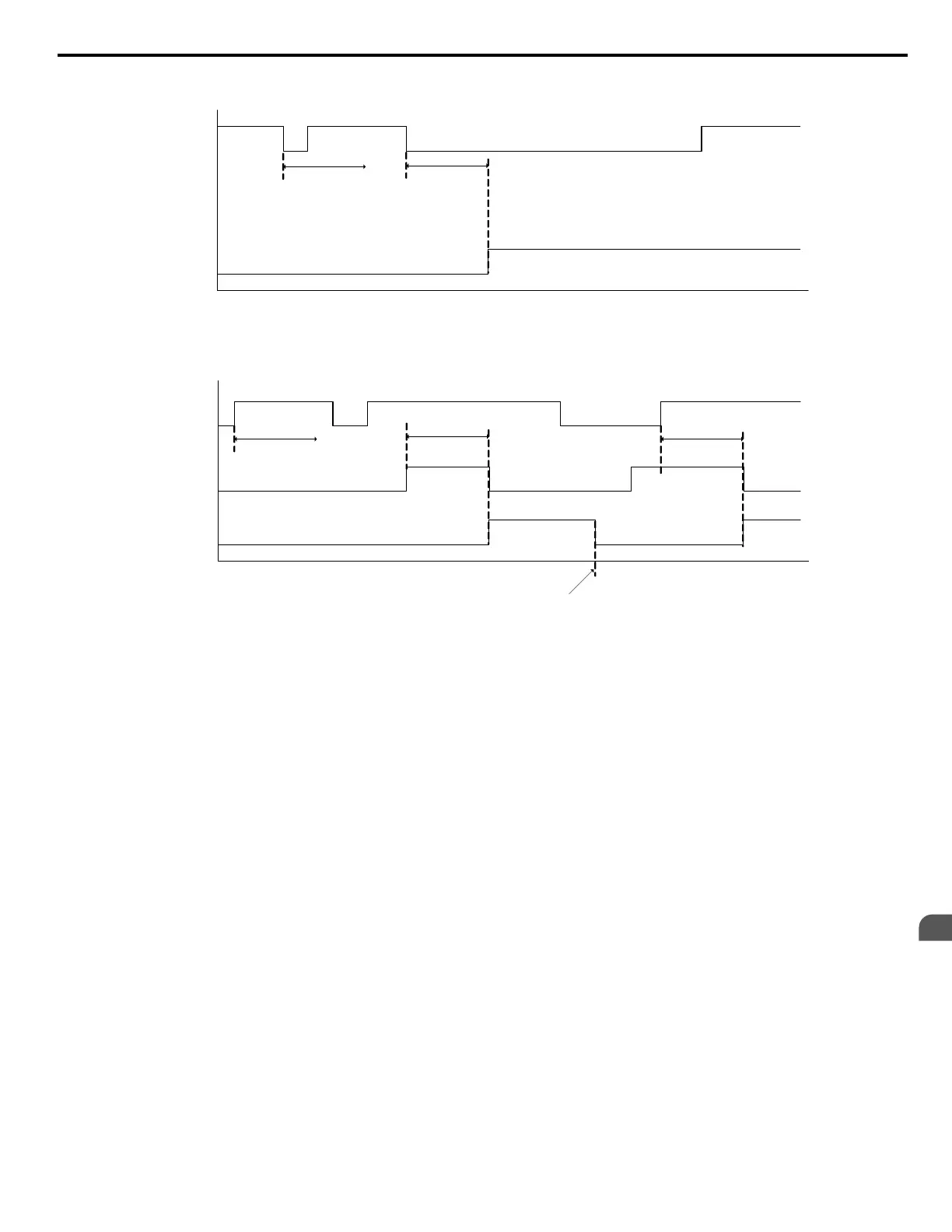

Figure 5.47 External Pump Fault and Alarm N.C. Always Detected
External Pump Fault N.O. Detected During Run
Pump Fault
Digital Input
(H1-0☐ = 2☐)
EF☐ Pump
Fault
EF☐ Delay Time
Fault Reset
Commanded
H1-2☐
Closed
Open
EF☐ Delay
Time
H1-2☐
EF☐ Delay
Time
H1-2☐
Drive
Running
or Sleeping
Figure 5.48 External Pump Fault N.O. Detected During Run
Setting 30: PID Integral Reset
Configuring one of the digital inputs for PID integral reset (H1-oo = 30) resets the value of the integral component in PID
control to 0 when the terminal is closed.
Setting 31: PID Integral Hold
Configuring a digital input for Integral Hold (H1-0o = 31) locks the value of the integral component of the PID control as
long as the input is active. The PID controller resumes integral operation from the hold value as soon as the integral hold input
is released.
Setting 32: Multi-Step Speed Reference 4
Selects the multi-step speeds d1-09 to d1-16 in combination with the input terminal set for Multi-Step Speed 1, 2 and 3.
Setting 34: PID Soft Starter Cancel
A digital input configured as a PID soft starter cancel input (H1-0o = 34) enables or disables the PID soft starter and cancels
the PID accel/decel time (b5-17).
Setting 35: PID Input Level Selection
Allows an input terminal to switch the sign of the PID input.
Settings 40 and 41: Forward Run, Reverse Run Command for 2-Wire Sequence
Configures the drive for a 2-Wire sequence.
When an input terminal set to 40 closes, the drive operates in the forward direction. When an input set for 41 closes, the drive
operates in reverse. Closing both inputs simultaneously will result in an external fault.
Note: 1. This function cannot be used simultaneously with settings 42 and 43.
2. The same functions are assigned to terminals S1 and S2 when the drive is initialized for 2-Wire sequence.
5.7 H: Terminal Functions
YASKAWA TOEP YAIQPM 03B YASKAWA AC Drive - iQpump Micro User Manual
169
5
Parameter Details
