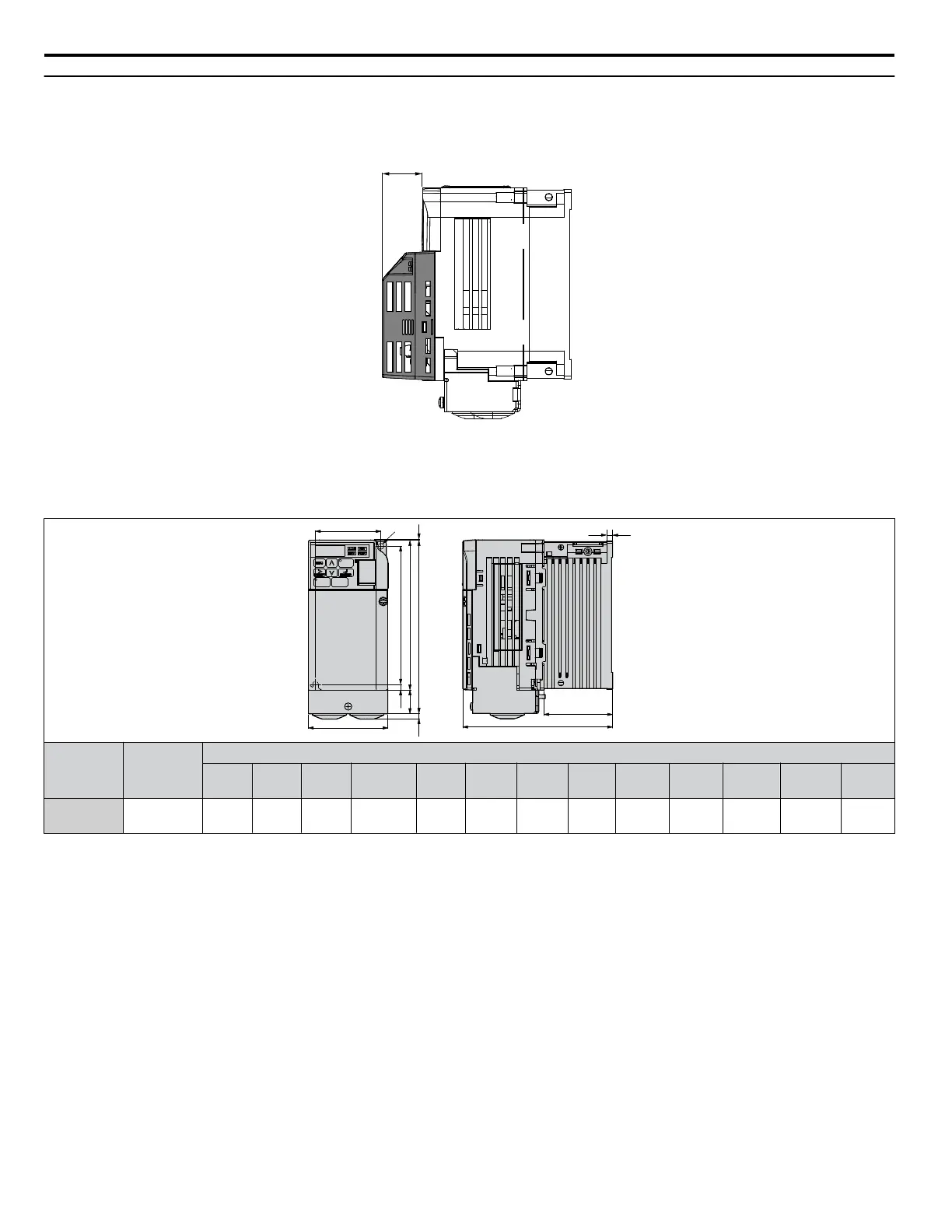

Exterior and Mounting Dimensions
The installed 24 V power supply option adds 27 mm (1.06 in.) to the total depth of IP20/NEMA 1, UL Type 1 enclosure drives.
Height and width dimensions are unaffected.
27 mm (1.06 in.)
Figure 2.5 24 V Power Supply Dimensions
n
IP20/NEMA 1, UL Type 1 Enclosure Dimensions
Table 2.2 Dimensions for IP20/NEMA 1, UL Type 1 Enclosure Drives
W
W1
H1H4
H5 H2
HH3
D1
D
2-M4
t1
H6
Voltage
Class
Drive Model
Dimensions mm (in)
W H
D
<1>
W1 H1 H2 H3 H4 H5 H6 D1 t1
Wt.
kg (lb.)
Three-Phase
200 V Class
2V0006F
68
(2.68)
149.5
(5.89)
128
(5.04)
56
(2.20)
128
(5.03)
118
(4.65)
4
(0.16)
20
(0.79)
5
(0.20)
1.5
(0.06)
58.5
(2.32)
5
(0.20)
1.3
(2.9)
<1> The installed 24 V power supply option adds 27 mm (1.06 in.) to the total depth of the drive.
2.2 Mechanical Installation
