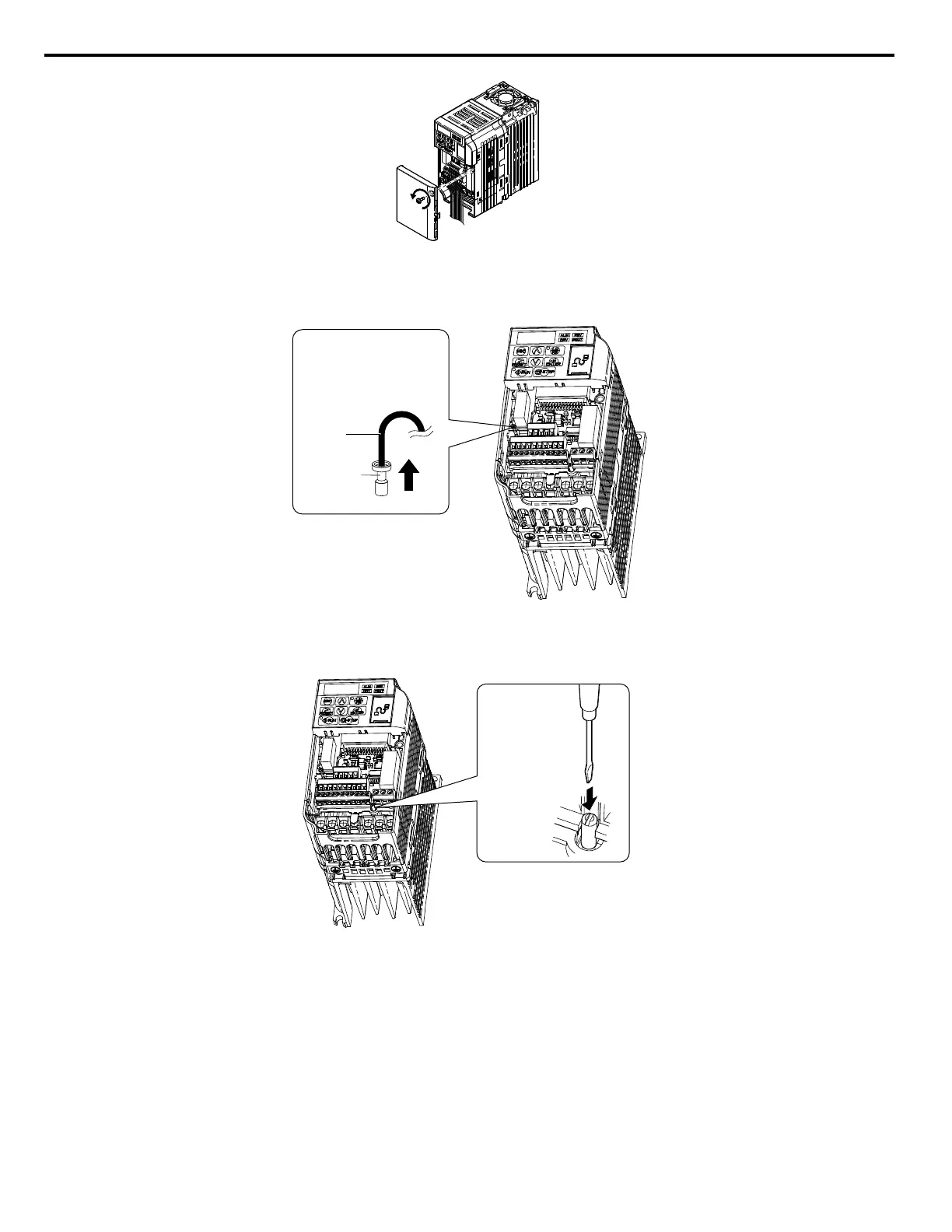

Figure 7.14 Remove the Front Cover
2.
Pull the pin on the ground terminal out of the removable terminal block.
Pull out the
ground terminal
pin in the direction
indicated by
the arrow.
Cable
Terminal
Figure 7.15 Pull Out the Ground Terminal
3.
Push down the installation pin on the terminal board with a screwdriver
Push down
the terminal
board locking
pin with a
screwdriver.
Figure 7.16 Depress the Plastic Tab
4.
While holding down the locking pin from step 3, slide the removable terminal block in the direction of the arrows in
Figure 7.17.
7.5 Drive Replacement
302
YASKAWA TOEP YAIQPM 03B YASKAWA AC Drive - iQpump Micro User Manual
