YASKAWA iQpump Micro CIMR-PW Series

Drive Model
Fuse Type
Manufacturer: Bussmann
Model Fuse Ampere Rating (A)
4A0004 FWH-50B 50
4A0005 FWH-70B 70
4A0007 FWH-70B 70
4A0009 FWH-90B 90
4A0011 FWH-90B 90
n
Grounding
The drive is designed to be used in T-N (grounded neutral point) networks. If installing the drive in other types of grounded
systems, contact your dealer or Yaskawa for instructions.
n
CE Standards Compliance for DC Power Supply Input
Install the fuses in the following tables to meet CE standards.
M
M
W/T3
Drive
V/T2
U/T1
+1
_
W/T3
Drive
V/T2
U/T1
+1
_
+
_
Fuse
Fuse
DC power supply
(converter)
Figure D.2 Example of DC Power Supply Input (Two Drives Connected in Series)
Note: 1. When connecting multiple drives together, make sure that each drive has its own fuse. Replace all fuses when one fuse blows.
2.
Refer to on page 40 for an AC power supply.
3. The recommended fuses and fuse holders are made by Fuji Electric.
Table D.2 Single-Phase 200 V Class Fuses and Fuse Holders
Drive Model
DC Power Supply Input
Fuse Fuse Holder
Manufacturer: Fuji Electric
Type
Rated Short Circuit
Braking Current
(kA)
Qty. Type Qty.
BA0001 CR6L-20/UL
100 2
CMS-4
2
BA0002 CR6L-30/UL CMS-4
BA0003 CR6L-50/UL CMS-4
BA0006 CR6L-75/UL CMS-5
BA0010 CR6L-100/UL CMS-5
D.2 European Standards

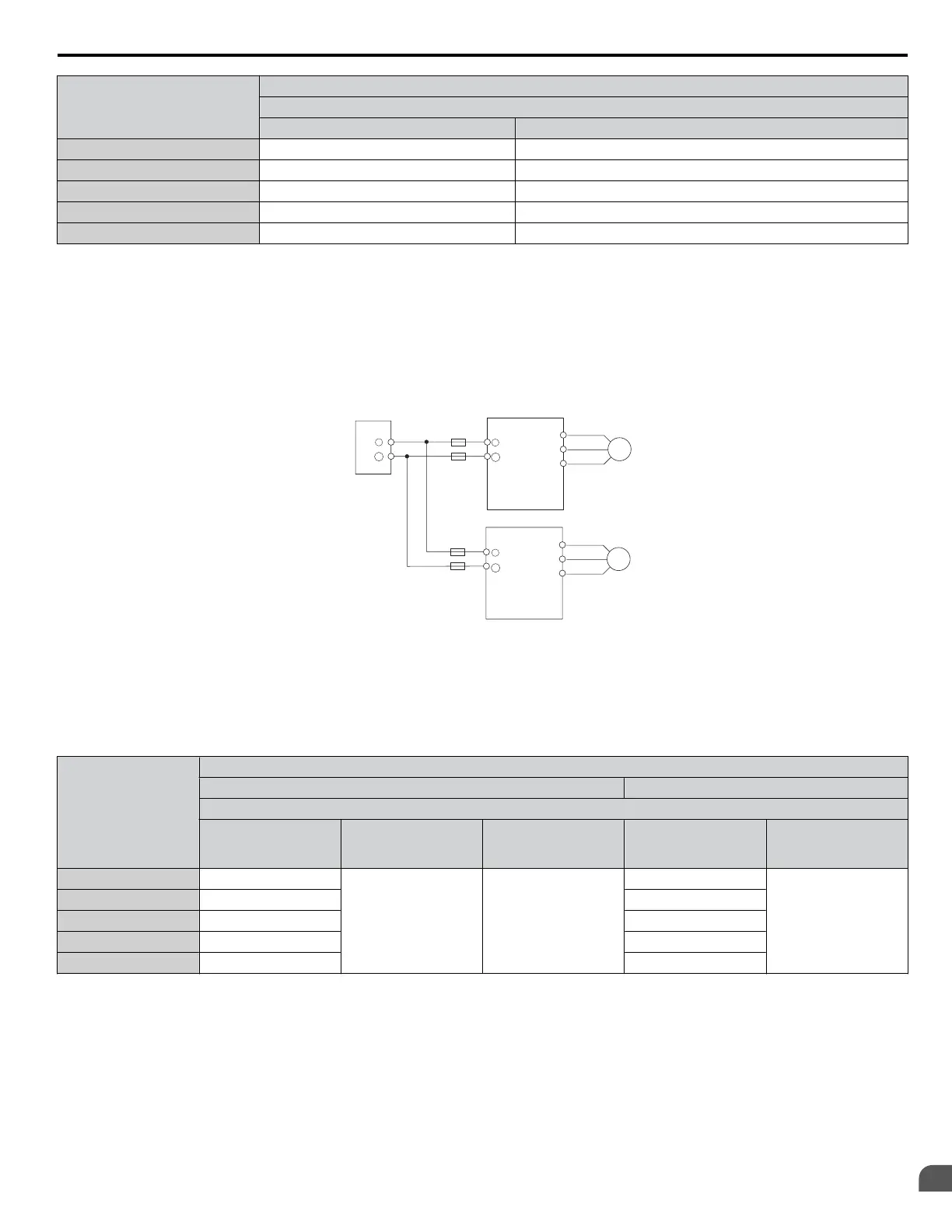

YASKAWA TOEP YAIQPM 03B YASKAWA AC Drive - iQpump Micro User Manual
423
D
Standards Compliance
