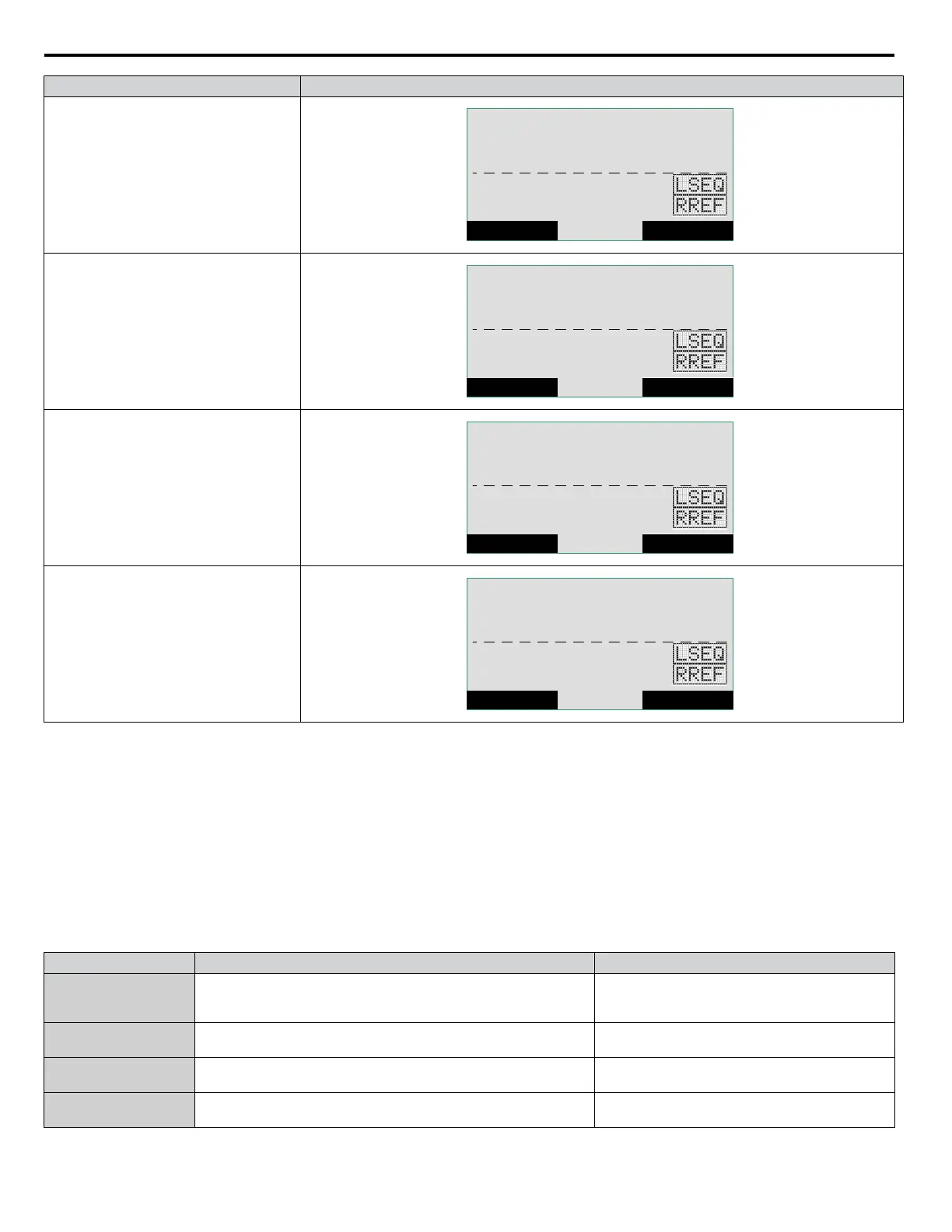

Network State Display
Drive is in AUTO Mode, Lead operation and
is currently regulating the system using PID
control.
Lead: Setpoint
- MODE - DRV RDY
Home
U1-02=
U1-91=
52.38Hz
62.8PSI
U5-99= 100.0
PSI
Drive is in AUTO Mode, Lag operation and
is holding the speed at the time it made the
switch from being a lead drive to a lag. Speed
is held until P9-07 time expires. The Home
screen will display U1-01 instead of U5-99.
Lag: Fixed Hold
- MODE - DRV RDY
Home
U1-02=
U1-91=
59.41Hz
99.8PSI
U1-01= 59.41
HZ
Drive is in AUTO Mode, Lag operation and
is running at the speed set in P9-06. The
Home Screen will display U1-01 instead of
U5-99.
Lag: Fixed P9-06
- MODE - DRV RDY
Home
U1-02=
U1-91=
55.00Hz
99.9PSI
U1-01= 55.00
HZ
Drive is in AUTO Mode, Lag operation and
is following the speed of the current Lead
drive. The Home screen will display U1-01
instead of U5-99.
Lag: Follow Lead
- MODE - DRV RDY
Home
U1-02=
U1-91=
51.35Hz
98.9PSI
U1-01= 51.37
HZ
PID Feedback via Network
The Network PID Feedback comes from a drive on the network with a valid analog PID feedback source and can be used as
the primary or secondary feedback source for a networked drive.
Set P9-02 to 0 if a drive has an analog PID feedback device installed and switching to network as a backup is not desired.
If a drive has an analog PID feedback device installed and the network PID feedback is considered as a backup, set P9-02 to
1 for no alarm message when switched and set P9-02 to 2 for an alarm.
Set P9-02 to 3 if a drive has no analog PID feedback device installed and relies solely on the analog PID feedback of another
networked drive.
Note: Connect an analog PID feedback device to each drive for best performance.
Related Parameters
No. Parameter Name Setting Values
H5-01 Drive Node Address
Default: 1F (Hex)
Min.: 0
Max.: FF
P1-01 Pump Mode
Default: 0
Range: 0, 3
P9-02 Feedback Source
Default: 0
Range: 0 to 3
P9-25 Highest Node Address
Default: 4
Range: 2 to 4
4.8 iQpump Presets and Functions
96
YASKAWA TOEP YAIQPM 03B YASKAWA AC Drive - iQpump Micro User Manual
