2 Selections

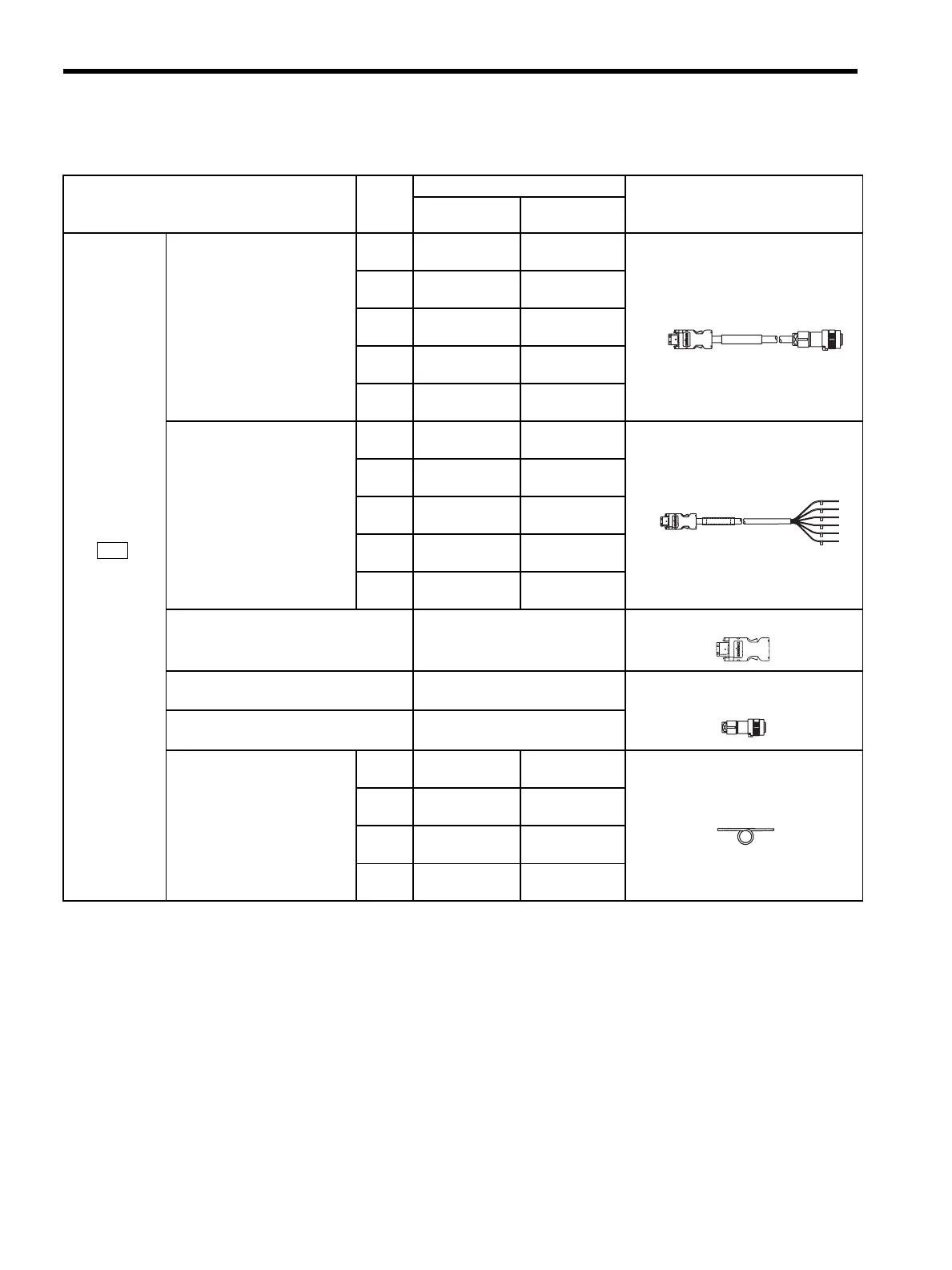

2.4.3 Cables for SGMCS Servomotor
2-22
Name Length Type Specifications
Standard Type Flexible Type
∗1
c
Encoder
Cables
Cable with connectors at
both ends
(For incremental and
absolute encoder)
3 m
(9.84 ft)
JZSP-CMP60-03 JZSP-CSP60-03
5 m
(16.4 ft)
JZSP-CMP60-05 JZSP-CSP60-05
10 m
(32.8 ft)
JZSP-CMP60-10 JZSP-CSP60-10
15 m
(49.2 ft)
JZSP-CMP60-15 JZSP-CSP60-15
20 m
(65.5 ft)
JZSP-CMP60-20 JZSP-CSP60-20
Cable with loose wires at
encoder end
(For incremental and
absolute encoder)
3 m
(9.84 ft)
JZSP-CMP03-03 JZSP-CMP13-03
5 m
(16.4 ft)
JZSP-CMP03-05 JZSP-CMP13-05
10 m
(32.8 ft)
JZSP-CMP03-10 JZSP-CMP13-10
15 m
(49.2 ft)
JZSP-CMP03-15 JZSP-CMP13-15
20 m
(65.5 ft)
JZSP-CMP03-20 JZSP-CMP13-20
SERVOPACK end connector kit
JZSP-CMP9-1
Soldered
Connectors at encoder end
(Straight plug)
JN1DS10SL1
*2
Caulking
(Exclusive tool is required.)
Connectors at encoder end
(Socket contact)
JN1-22-22S-PKG100
*2
Cables
5 m
(16.4 ft)
JZSP-CMP09-05 JZSP-CSP39-05
20 m (65.6 ft) max.
10 m
(32.8 ft)
JZSP-CMP09-10 JZSP-CSP39-10
15 m
(49.2 ft)
JZSP-CMP09-15 JZSP-CSP39-15
20 m
(65.5 ft)
JZSP-CMP09-20 JZSP-CSP39-20
* 1. Use flexible cables for movable sections such as robot arms. Refer to 5.6 Flexible
Cables.
* 2. Contact Japan Aviation Electronics Industry, Ltd.
CN2
SERVOPACK end Encoder end
SERVOPACK end Encoder end
