YASKAWA Varispeed E7 User Manual

5-18



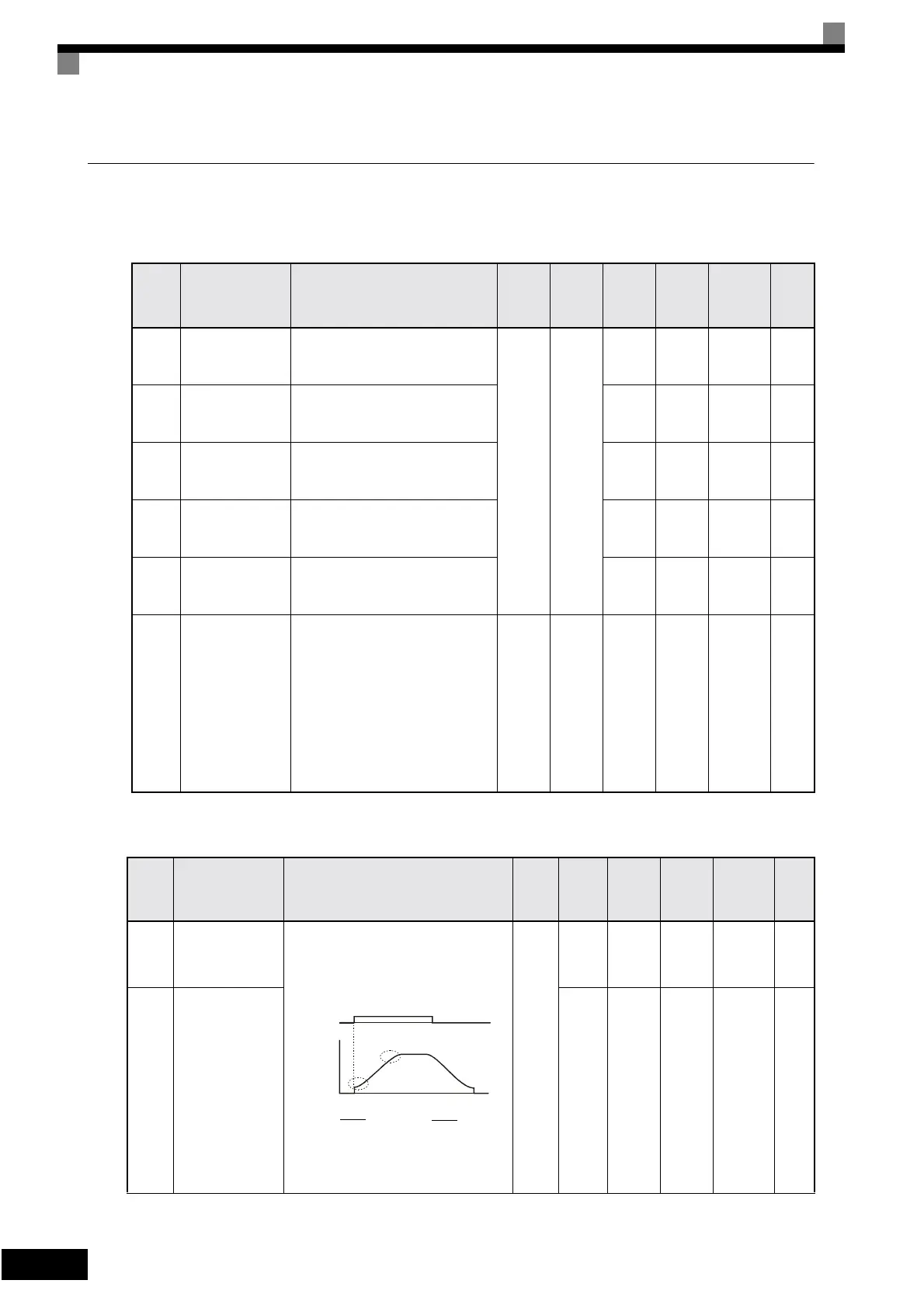

 Tuning Constants: C
Acceleration/Deceleration: C1
S-Curve Acceleration/Deceleration: C2
Con-
stant
Number
Name Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Access
Level
MEMO-
BUS
Register
Page
C1-01
Acceleration
time 1
Sets the acceleration time to accel-
erate from 0 Hz to the
maximum output frequency.
0.0 to
6000.0
10.0 s
Yes Q 200H
4-5
6-16
C1-02
Deceleration
time 1
Sets the deceleration time to decel-
erate from the maximum output fre-
quency to 0 Hz.
Yes Q 201H
4-5
6-16
C1-03
Acceleration
time 2
Sets the acceleration time when the
multi-function input “accel/decel
time 1” is set to ON.
Yes A 202H 6-16
C1-04
Deceleration
time 2
Sets the deceleration time when the
multi-function input “accel/decel
time 1” is set to ON.
Yes A 203H 6-16
C1-09
Emergency stop
time
Sets the deceleration time when the
multi-function input “Emergency
(fast) stop” is set to ON.
No A 208H 6-15
C1-11
Accel/decel time
switching fre-
quency
Sets the frequency for automatic
acceleration/deceleration switching.
If the output frequency is below the
set frequency: Accel/decel time 2
If the output freuquency is above
the set frequency: Accel/decel
time 1
The multi-function input “accel/
decel time 1” or “accel/decel time
2” has priority.
0.0 to
200.0
0.0 Hz No A 20AH 6-17
Con-
stant
Number
Name Description
Setting
Range
Factory
Setting
Change
during
Opera-
tion
Access
Level
MEMO-
BUS
Register
Page
C2-01
S-curve character-
istic time at accel-
eration start
When the S-curve characteristic time is
set, the accel time will increase by only
half of the S-curve characteristic times
at start and end.
The S-Curve characteristic time at start
and end of deceleration is fixed to 0.2
sec and can not be changed.
0.00 to
2.50
0.20 s No A 20BH 6-17
C2-02
S-curve character-
istic time at accel-
eration end
0.20 s No A 20CH 6-17
Run command
Output frequency
Time
ON
OFF
C2-02
C2-01
accel
T
=
C2-01
2
+ C1-01 +
C2-02
2
