Output Terminal Functions
6-63
Output Terminal Functions
The digital multifunction outputs can be set for several functions using the H2-01 and H2-02 constants (termi-
nal M1 to M4 function selection). These functions are described in the following section.
Related Constants
During Run (Setting: 0) and During Run 2 (Setting: 37)
During Run (Setting: 0)
During Run 2 (Setting: 37)
These outputs can be used to indicate the inverter’s operating status.

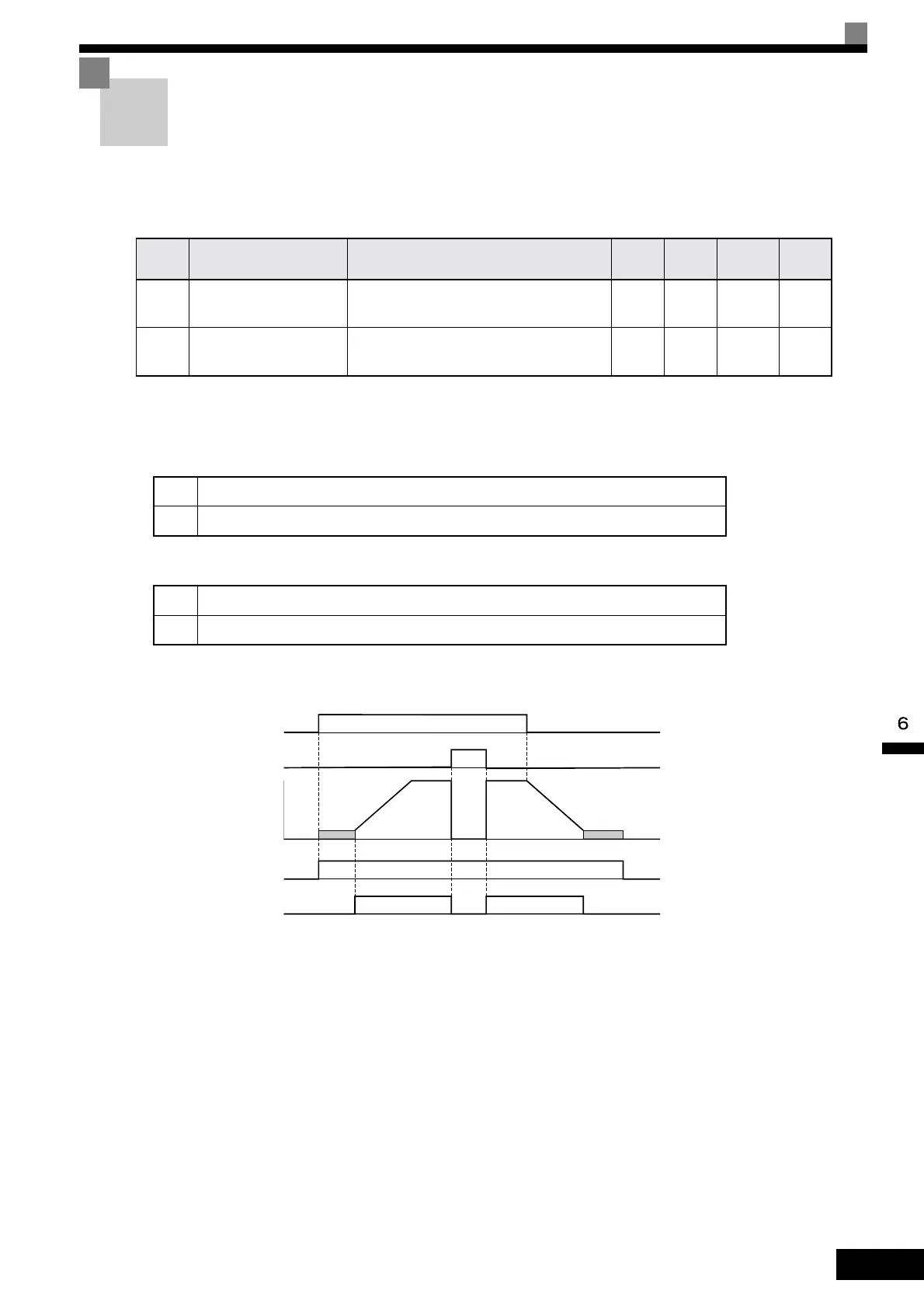

Fig. 6.40 Timing Chart for “During RUN” Output
Con-
stant
Number
Name Description
Setting
Range
Factory
Setting
Change
during
Operation
Access
Level
H2-01
Terminal M1-M2 function selec-
tion
Multi-function contact output 1 0 to 38 0 No A
H2-02
Terminal M3-M4 function selec-
tion
Multi-function contact output 2 0 to 38 1 No A
OFF The Run command is OFF and there is not output voltage.
ON The Run command is ON or a voltage is being output.
OFF The inverter is not outputting a frequency. (Baseblock, DC injection braking or stopped)
ON The inverter is outputting a frequency.
OFF
ON
OFF
OFF
OFF
ON
ON
ON
Run command
Baseblock command
Output frequency
During run 1 output
During run 2 output
