Exterior and Mounting Dimensions
1-9
Enclosed Wall-mounted Inverters (NEMA1)
Exterior diagrams of the Enclosed Wall-mounted Inverters (NEMA1) are shown below.

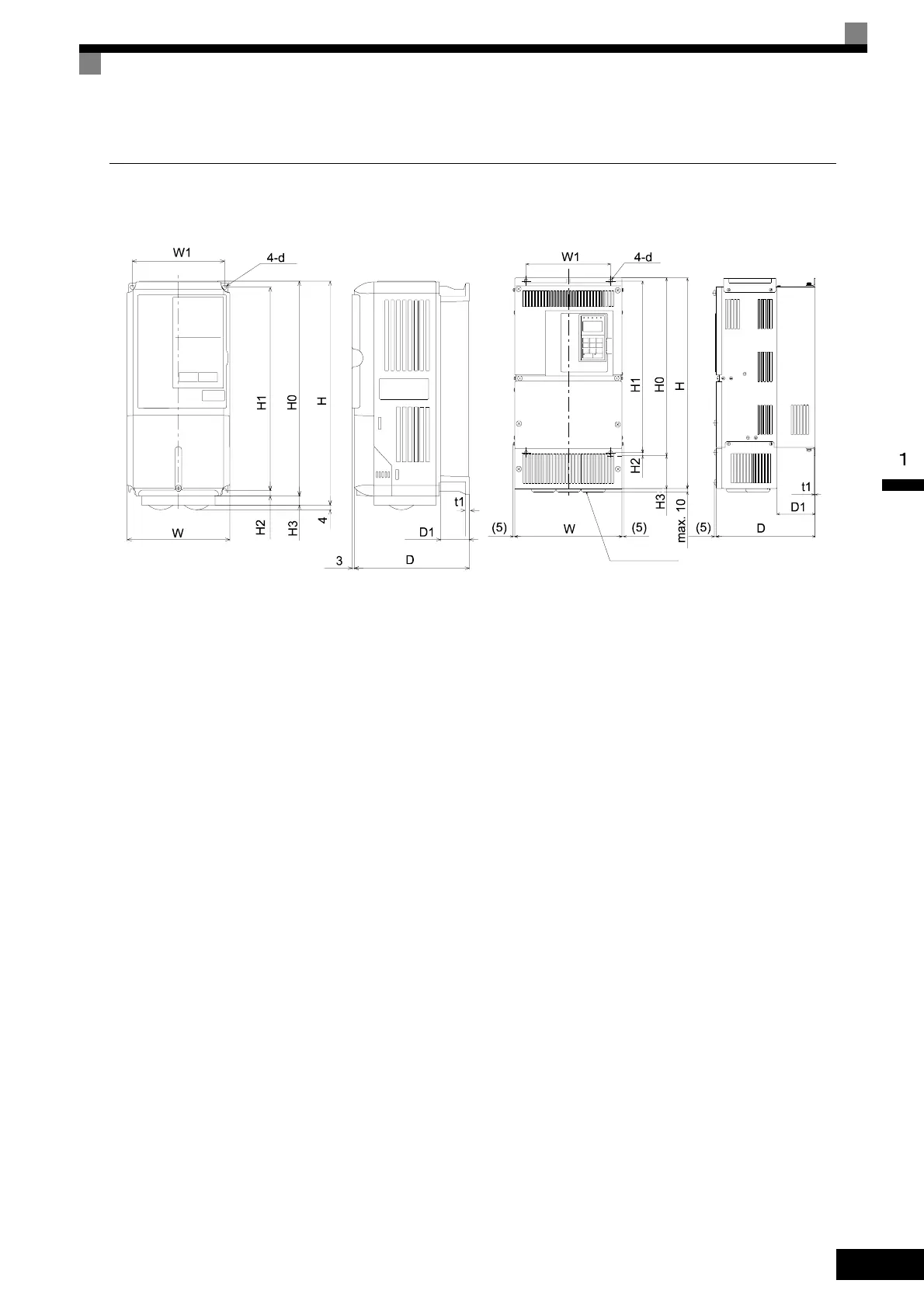

Fig 1.9 Exterior Diagrams of Enclosed Wall-mounted Inverters
200 V Class Inverters of 22 or 75 kW
400 V Class Inverters of 22 to 160 kW
200 V/400 V Class Inverters of 0.55 to 18.5 kW
Grommet
