3-8
Advanced Programming Mode
In advanced programming mode all Inverter constants can be monitored and set.
Constants can be changed from the setting displays. Use the Increment, Decrement, and Shift/RESET keys to
change the constant. The user constant will be written and the display will return to monitor display when the
DATA/ENTER key is pressed after changing the setting.
Refer to Chapter 5 User Constants for details on the constants.
Example Operations
Key operations in advanced programming mode are shown in the following figure.

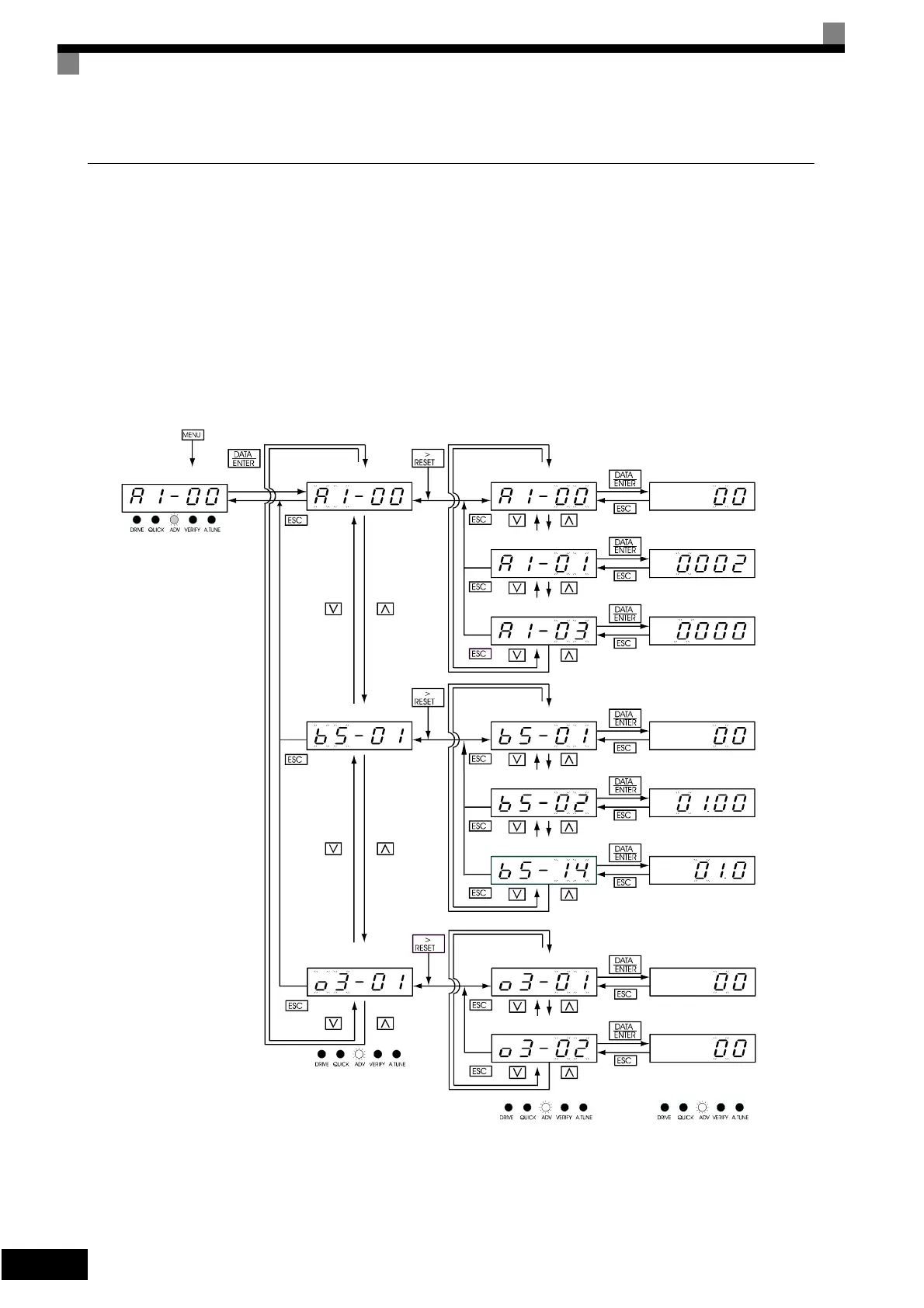

Fig 3.6 Operations in Advanced Programming Mode
Mode Selection Display
Function Selection Display
Monitor Display
Setting Display
Advanced Programming Mode
Setup settings: A1-xx
PI control: b5-xx
Copy functions: 03-xx
Language
Access level
Initialize
PI control mode selection
Proportional gain
PI feedback command
loss detection time
Copy function selection
Read permitted selection
