3-2
Digital Operator
This section describes the displays and functions of the Digital Operator.
Digital Operator Display
The key names and functions of the Digital Operator are described below.

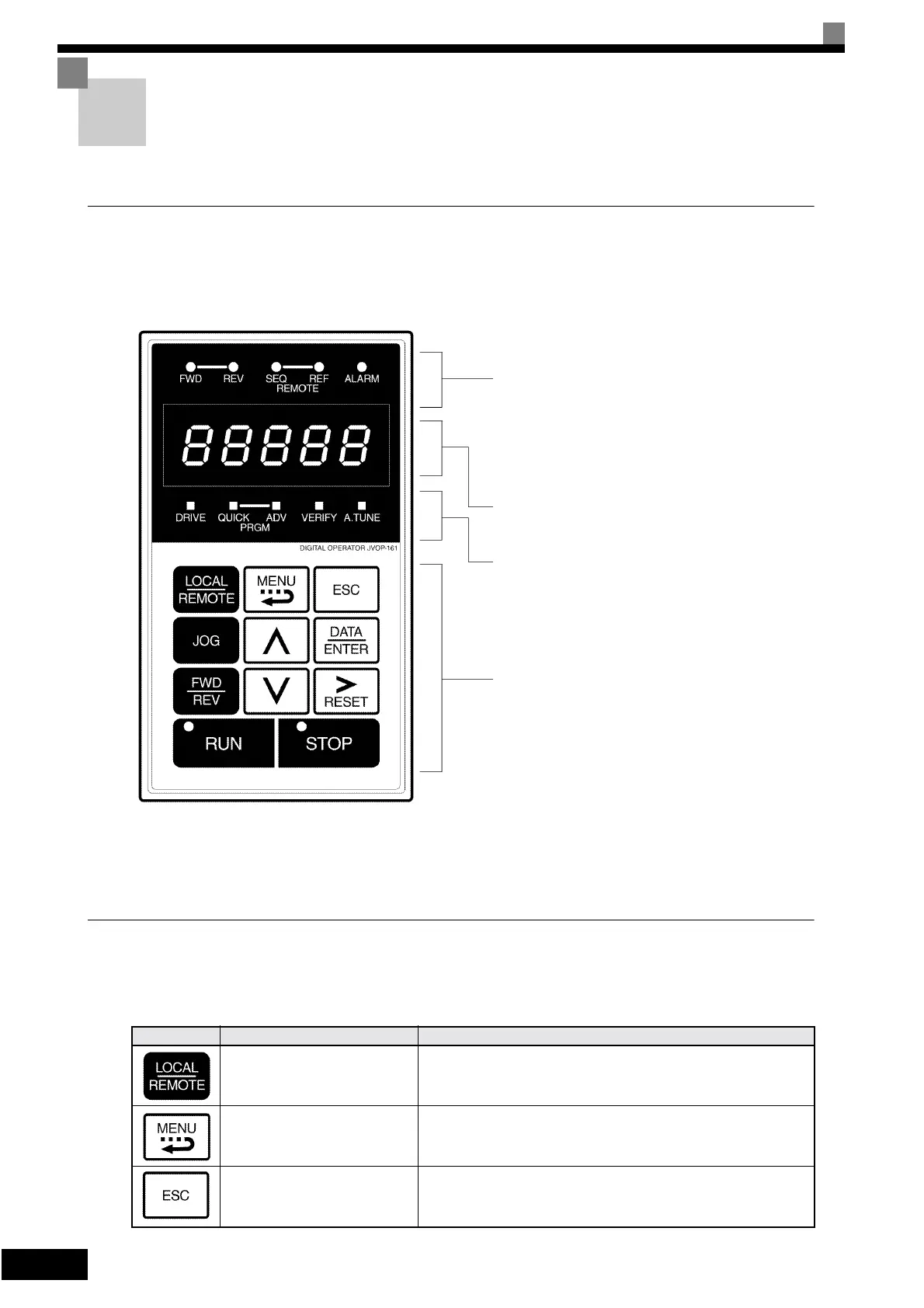

Fig 3.1 Digital Operator Component Names and Functions
Digital Operator Keys
The names and functions of the Digital Operator Keys are described in Table 3 .1.
Table 3.1 Key Functions
Key Name Function
LOCAL/REMOTE Key
Switches between operation via the Digital Operator (LOCAL) and
control circuit terminal operation (REMOTE).
This Key can be enabled or disabled by setting user constant o2-01.
MENU Key Selects modes.
ESC Key Returns to the status before the DATA/ENTER Key was pressed.
Drive Mode Indicators
FWD: Lights up when a forward run command is
input.
REV: Lights up when a reverse run command is
input.
SEQ: Lights up when the run command from the
control circuit terminal is enabled.
REF: Lights up when the frequency reference from
control circuit terminals A1 and A2 is enabled.
ALARM: Lights up when an error or alarm has
occurred.
Data Display
Displays monitor data, constant numbers, and
settings.
Mode Display
DRIVE: Lights up in Drive Mode.
QUICK: Lights up in Quick Programming Mode.
ADV: Lights up in Advanced Programming Mode.
VERIFY: Lights up in Verify Mode.
A. TUNE:Lights up in Autotuning Mode.
Keys
Execute operations such as setting user con-
stants, monitoring, jogging, and autotuning.
