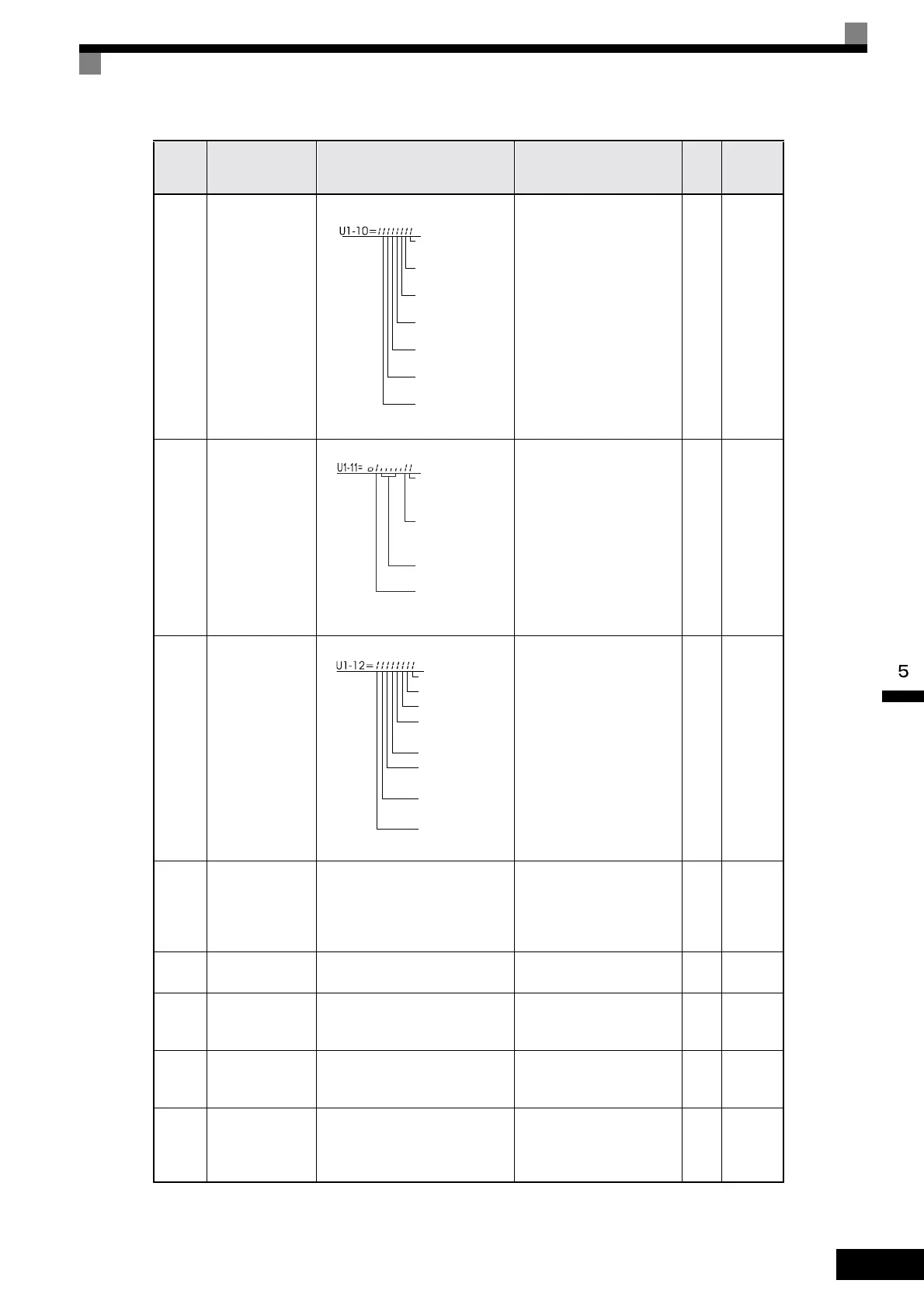

User Constant Tables
5-43
Constant
Number
Name Description
Output Signal Level Dur-
ing Multi-Function Analog
Output
Min.
Unit
MEMO-
BUS
Register
U1-10
Input terminal sta-
tus
Shows input ON/OFF status.
(Cannot be output.) – 49H
U1-11
Output terminal
status
Shows output ON/OFF status.
(Cannot be output.) – 4AH
U1-12 Operation status
Inverter operating status.
(Cannot be output.) – 4BH
U1-13
Cumulative oper-
ation time
Monitors the total operating time
of the Inverter.
The initial value and the operating
time/power ON time selection can
be set in o2-07 and o2-08.
(Cannot be output.)
1
hr
4CH
U1-14
Software No.
(flash memory)
(Manufacturer’s ID number) (Cannot be output.) – 4DH
U1-15
Terminal A1 input
level
Monitors the input level of analog
input A1. A value of 100% corre-
sponds to 10V input.
10 V: 100%
(0 to + 10 V possible)
0.1% 4EH
U1-16
Terminal A2 input
level
Monitors the input level of analog
input A2. A value of 100% corre-
sponds to 10V/20mA input.
10 V/20mA: 100%
(0 to +10 V possible)
0.1% 4FH
U1-18
Motor secondary
current (Iq)
Monitors the calculated value of
the motor secondary current.
The motor rated current corre-
sponds to 100%.
10 V: Motor rated current)
(0 to +10 V output)
0.1% 51H
1: FWD comman
(S1) is ON
1: REV command
(S2) is ON
1: Multi input 1
(S3) is ON
1: Multi input 2
(S4) is ON
1: Multi input 3
(S5) is ON
1: Multi input 4
(S6) is ON
1: Multi input 5
(S7) is ON
1: Multi-function
contact output 1
(M1-M2) is ON
1: Multi-function
contact output 2
(M3-M4) is ON
Not used
(Always 0).
1: Error output
(MA/MB-MC) is
ON
Run
1: Zero speed
1: Reverse
1: Reset signal
input
1: Speed agree
1: Inverter ready
1: Minor fault
1: Major fault
