Application Selections
6-3

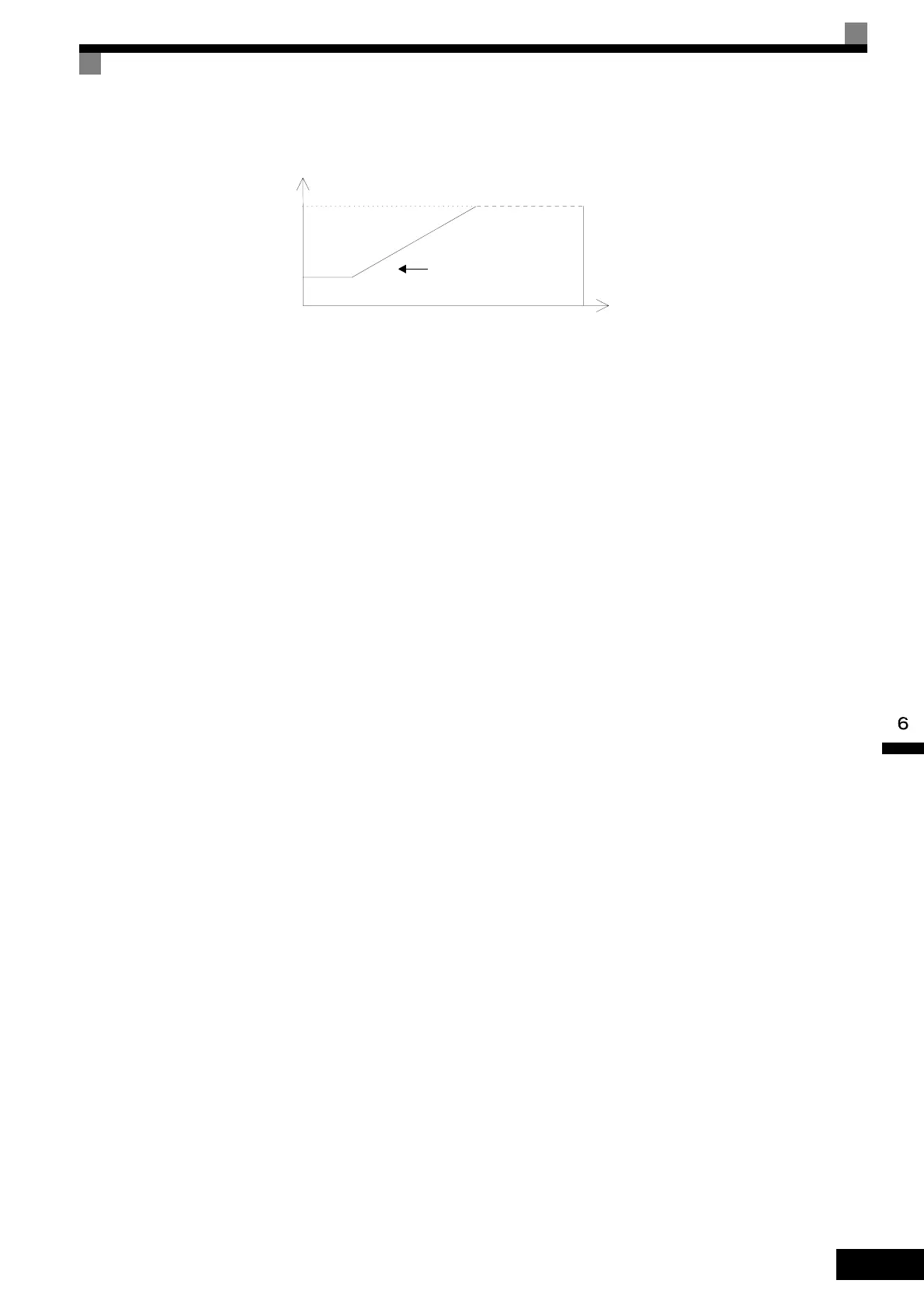

Fig 6.1
*K is the coefficient determined by the set value in C6-03.
C6-03 ≥ 10.0 kHz: K=3
10.0 kHz > C6-03 ≥ 5.0 kHz: K=2
5.0 kHz > C6-03: K=1
• To fix the carrier frequency, set C6-03 and C6-04 to the same value, or set C6-05 to 0.
• If Carrier Frequency Proportional Gain (C6-05) > 6 and C6-03 < C6-04 an OPE11 fault (Data setting
error) will occur.
Carrier Frequency
Output frequency
E1-04
Max. Output Frequency
Output frequency x C6-05
x K*
C6-03
C6-04
