6-12
Deceleration to Stop
If the stop command is input (i.e., the run command is turned OFF) when b1-03 is set to 0, the motor deceler-
ates to stop according to the deceleration time that has been set. (Factory setting: C1-02 (Deceleration Time
1))
If the output frequency when decelerating to stop falls below b2-01, the DC injection brake will be applied
using the DC current set in b2-02 for the time set in b2-04.
For deceleration time settings, refer to page 6-16 Setting Acceleration and Deceleration Times.

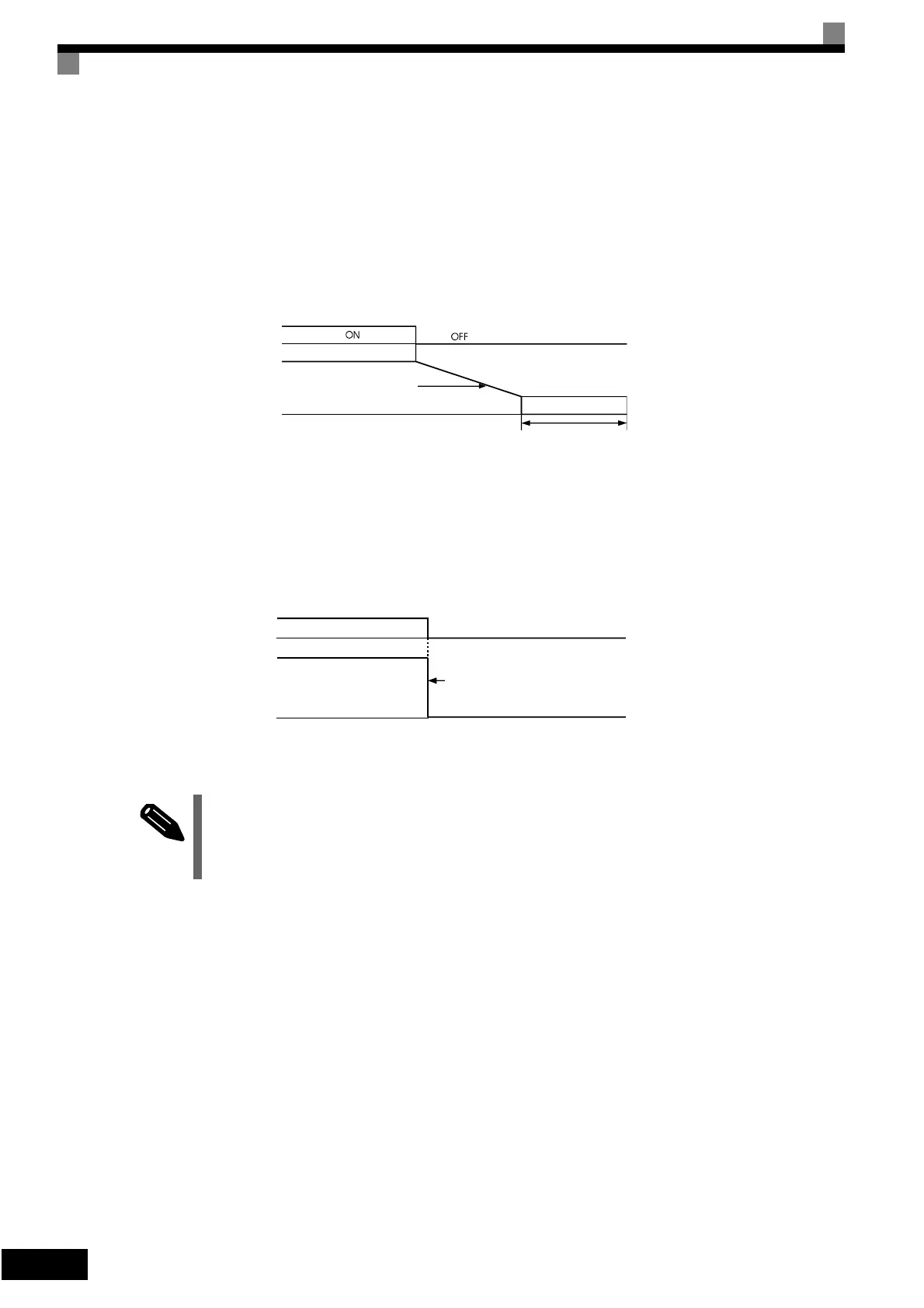

Fig 6.11 Deceleration to Stop
Coast to Stop
If the stop command is input (i.e., the run command is turned OFF) when b1-03 is set to 1, the Inverter output
voltage is switched off. The motor coasts to stop.
Fig 6.12 Coast to Stop
After the stop command is input, run commands are ignored until the Minimum Baseblock Time (L2-03) has
elapsed.
Run command
Output frequency
DC injection brake
Decelerates to stop
deceleration time
DC injection brake
time when
stopping (b2-04)
ON OFF
un comman
Output frequency
Inverter output frequency interrupted
INFO
