Time Chart

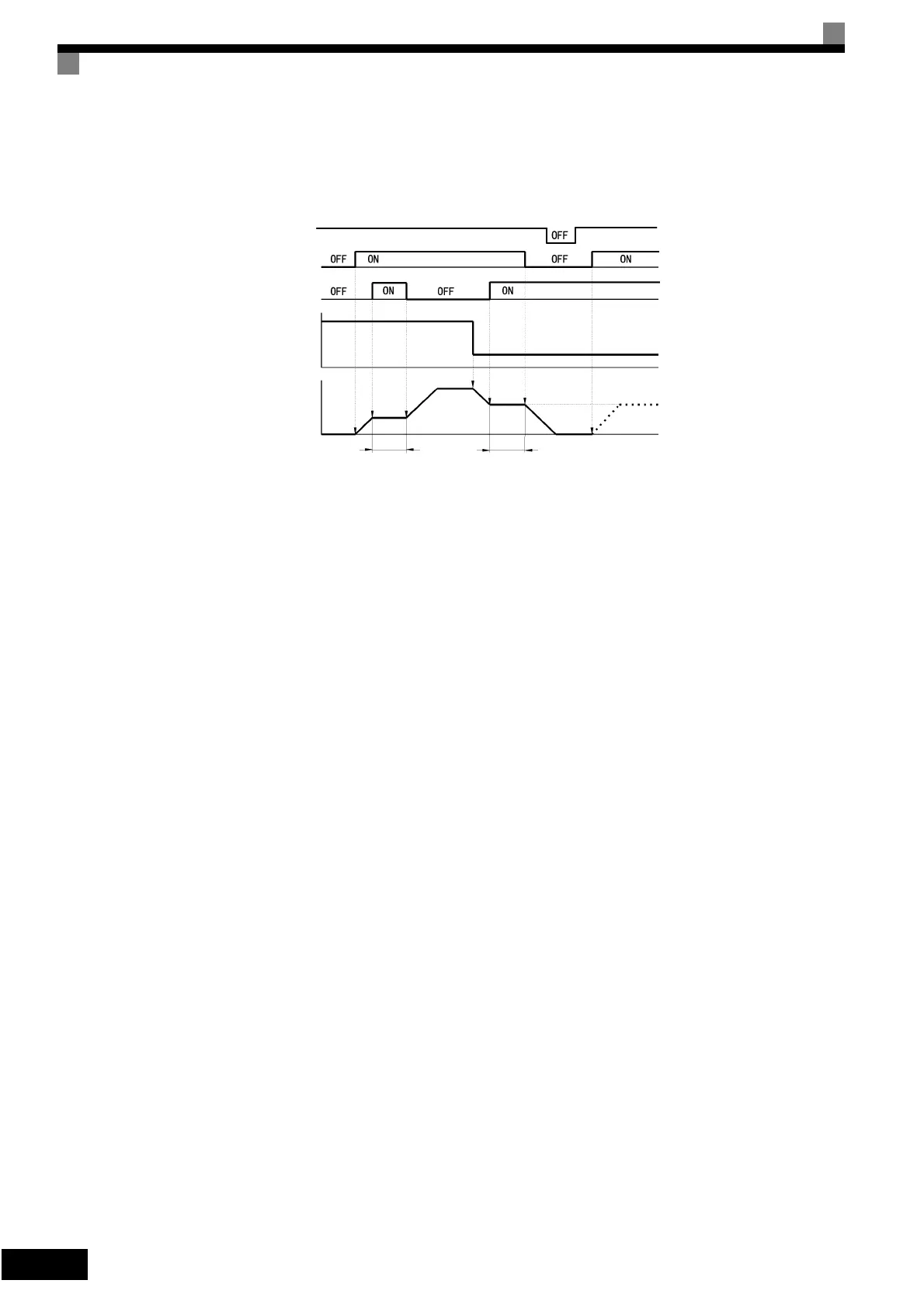

The time chart when using Acceleration/Deceleration Ramp Hold commands is given below.
Fig 6.36 Acceleration/Deceleration Ramp Hold
Power supply
Forward/Stop
Acceleration/Deceleration
Ramp Hold
Frequency reference
Output frequency
Hold Hold
